ENERPAC

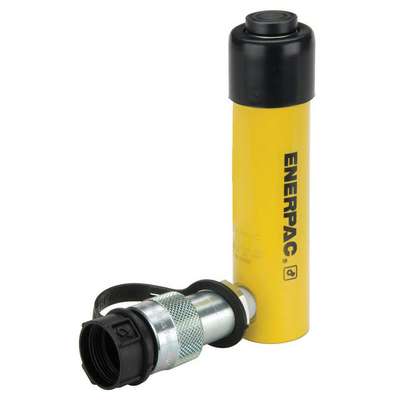

Hydraulic Ram: Single Acting, 5 ton Nominal Capacity, 3" Nominal Stroke Length, Steel, RC

Hover over image to magnify
Hydraulic Ram,5 Ton,3" Stroke
Hydraulic Ram,5 Ton,3" Stroke

#932777-9 | Pkg Qty: 1

$653.33 pkg | $653.33 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Steel
Pack Quantity
1
Brand
ENERPAC
Shipping Weight
3.4 lb.
Item
Hydraulic Ram
Stroke Length
3 in.
Mfr. Part Number
RC53
General
Base Bolt Circle Dia.
1 in
Nominal Stroke Length
3 in
Center Hole Dia.
1 in
Oil Capacity Push
2.98 cu in
Collar Thread Size
1-1/2"-16
Outside Dia.
1.5 in
Effective Push Area
0.99 sq in
Plunger Dia.
1 in
Extended Height
9.5 in
Plunger Thread Size
3/4"-16
Includes
Coupler, Dust Cap
Retracted Height
6.5 in
Max. Pressure
10,000 psi
Single Acting/Double Acting
Single Acting
Max. Push Capacity
5 ton

Product Description

General purpose rams attach to a hydraulic pump to lift heavy loads with minimal effort. They have a maximum working pressure of 10,000 psi.

Standard hydraulic rams are used in general purpose applications for one-direction lifting and supporting. They are often used with fixtures to support tasks such as crimping, pressing, and punching. They can also be used standalone for lifting heavy objects.
