Home All Products Pneumatics Compressed Air Treatment Pneumatic Regulators SKU: 932702-1
Share
Print
WILKERSON

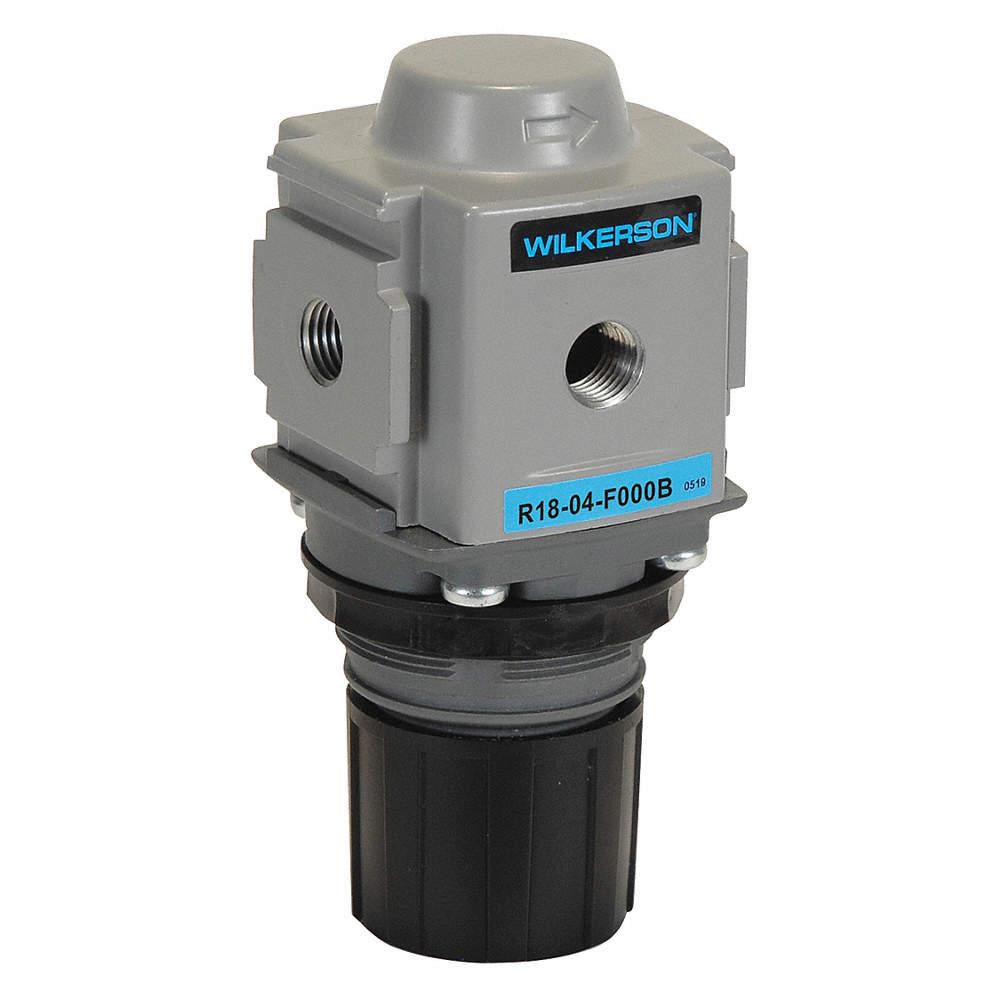

Compressed Air Regulator: Aluminum, 1/2 in NPT, 180 cfm, 300 psi Max Op Pressure, Knob

Hover over image to magnify
Air Pressure Regulator,1/2"
Air Pressure Regulator,1/2"

#932702-1 | Pkg Qty: 1

$61.02 pkg | $61.02 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Aluminum
Package Quantity
1
Brand
WILKERSON
Shipping Weight
1.3 lb.
Item
Air Pressure Regulator
Valve Design
Relieving
Mfr. Part Number
R18-04-F000B
General
Adjustment Mechanism
Knob
Includes
Panel Nut
Adjustment Mechanism Material
Acetal
Max. Flow - Regulators
180 cfm
Adjustment Range - Regulators
0 to 125 psi
Max. Inlet Pressure - Regulators
300 psi
Air Flow Direction
Left to Right
Modular Connection
Modular Connection
Air Inlet Gender
Female
Number of Air Inlets
0.5
Air Inlet Type
NPT
Overall Height - Regulators
5.4 in
Air Outlet Gender
Female
Overall Width - Regulators
2.36 in
Air Outlet Size
1/2 in
Pipe Size - Regulators
1/2 in
Air Outlet Type
NPT
Pressure Gauge Port Size
1/4 in
Compressed Air Regulator Product Grouping
General Purpose Air Regulator
Pressure Gauge Port Type
NPT
For Fluid Type
Air
Regulator Body Material
Aluminum or Zinc
For Substance Type
Air
Regulator Type
Relieving
Gauge Port
1/4 in NPT
Standards
ATEX Group II Category 2, REACH, RoHS

Product Description

Air Pressure Regulator, Pipe Size - Regulators 1/2 in, Max. Flow - Regulators 180 cfm, Max. Inlet Pressure - Regulators 300 psi, Max. Temp. - Regulators 150 Degrees F, Adjustment Range - Regulators 0 to 125 psi, Nonrising Adjustment Knob, Air Flow Direction Left to Right, 1/4 in NPT Gauge Port, Standard Series, Relieving Valve Design, Overall Height - Regulators 5.4 in, Overall Width - Regulators 2.36 in, Overall Length 5.18 in, Body Material Aluminum
