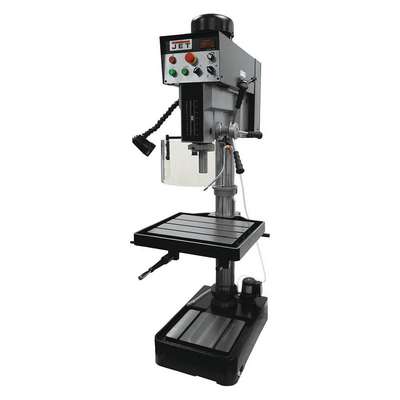

Jet Floor Drill Press: Belt, Variable, 245 RPM û 2,000 RPM, 115 VAC /Single-Phase, 10-1/2" Swing

Hover over image to magnify
Floor Drill Press,120V,Corded
Floor Drill Press,120V,Corded

#932539-9 | Pkg Qty: 1

$6,361.89 pkg | $6,361.89 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
9.2
Overall Depth
38-3/16 in.
Application
Drilling, Tapping
Overall Height
79-1/2 in.
Brand
JET
Overall Width
27 in.
Chuck Size
Not included
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
792 lb.
Horsepower
2 HP
Speed Control
Variable
Hz
60
Swing
20 in.
Item
Floor Drill Press
Voltage
120
Mfr. Part Number
JDP-20EVS-110
General
Chuck Style
Keyed
Maximum Spindle-to-Table Height
30 1/4 in
Column Diameter
4 1/2 in
Minimum Spindle Speed
245 RPM
Current
9.2 A
Nominal Voltage
115V AC
Drill Press Application
Drilling
Quill Diameter
2 61/64 in
Drill Press Type
Floor Stand
Speed Adjustment
Mechanical Variable Speed Drive System
Drill Spindle Travel
6 in - 7 in
Speed Range
65 to 2,000 RPM
Drilling Capacity in Cast Iron
1 1/2 in
Spindle Speed Range
245 RPM - 2,000 RPM
Drilling Capacity in Stainless Steel
1 in
Spindle Travel
6 in
Drilling Capacity in Steel
1 3/8 in
Spindle-to-Column Distance
10 7/16 in
Drilling Capacity in Wood
1 1/2 in
Table Length
22 in
Guard Included
Yes
Table Load Capacity
154 lb
Includes
Chuck Guard
Table Slot
Yes
Maximum Overall Height
79 1/2 in
Table Slot Width
5/8 in
Maximum Spindle Speed
2,000 RPM
Table Width
18 3/4 in
Maximum Spindle-to-Base Height
44 1/2 in
Tapping Compatible
Yes

Product Description

Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 10 7/16 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 3/8 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Power Down Feed Included No, Voltage 120, Amps AC 9.2, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 65 to 2000 rpm, Spindle Travel 6 in, Base Size 27 in x 19 in, Table Work Surface 18-1/8 in x 14-3/4 in, Hz 60, Phase 1, Number of T-Slots 2
