HONEYWELL MICRO SWITCH

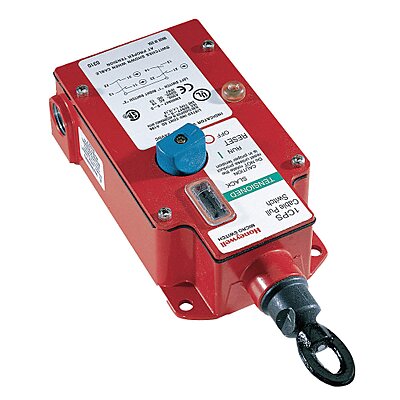

Honeywell Micro Switch Emergency Cable Pull Switch, Maintained, Single End, 10A @ 600V AC AC Contact Rating

Hover over image to magnify
Cable Pull Switch,10A,Single,
Cable Pull Switch,10A,Single,

#932480-1 | Pkg Qty: 1

$718.78 pkg | $718.78 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 600 VAC
Mfr. Part Number
1CPSA2
Brand
HONEYWELL MICRO SWITCH
Mounting Style
Single End
Case Material
Zinc Die Cast
NEMA Rating
1, 12, 13, 4
Contact Form
2NC/2NO, Silver
Operating Force
3 to 5 lb.
Contact Type
2NC/2NO, Silver
Package Quantity
1
DC Contact Rating
2.5 A @ 24 VDC
Shipping Weight
4.6 lb.
Depth
2.57 in.
Switch Function
Maintained
IP Rating
67
Type
Emergency, Maintained
Indicator
None
Width
3.9 in.
Item
Emergency Cable Pull Switch
Wiring Entry
1/2 in. NPT
Length
10.62 in.
General
Cable Connection Location
Left or Right
Reset
Rotary Knob
Environmental Protection
IP67
Standards
CSA Certified, CE Marked, SIL 3 Capable, Low Voltage Directive 73/23/EEC, as Amended By Directive 93/68/EEC, Machinery Directive 98/37/EEC Only as the Directives Relate to the Components Being Used in. a Safety Function, EN60947-1, EN-60947-5-
For Use With
Microswitch CPS Accessories
Switching Ability
Single Cable
Mechanical Life
1000000
Thermal Amperage
10 A
Operating Position
Single End

Product Description

This emergency cable pull switch is designed to provide a readily accessible emergency stop signal.

As an alternative to multiple emergency stop push-buttons, the switch can be used as a means of personnel safeguarding to prevent further injury or damage to equipment when used for emergency stop signaling.

It is also designed to provide emergency stop protection for exposed conveyor and assembly lines. The internal mechanism latches on both slackened cable and pulled cable, which helps to eliminate nuisance stops due to variations in temperature, stretch of cable over time, and other application variables.

Expertly Selected Product Pairings

Cable,Plastic Coated Steel,25
$147.70 pkg | $147.70 ea
Item: 938931-3 | Pkg Qty: 1

Documents

Honeywell Sensing Limit Switches and Machine Safety Guide
