HONEYWELL MICRO SWITCH

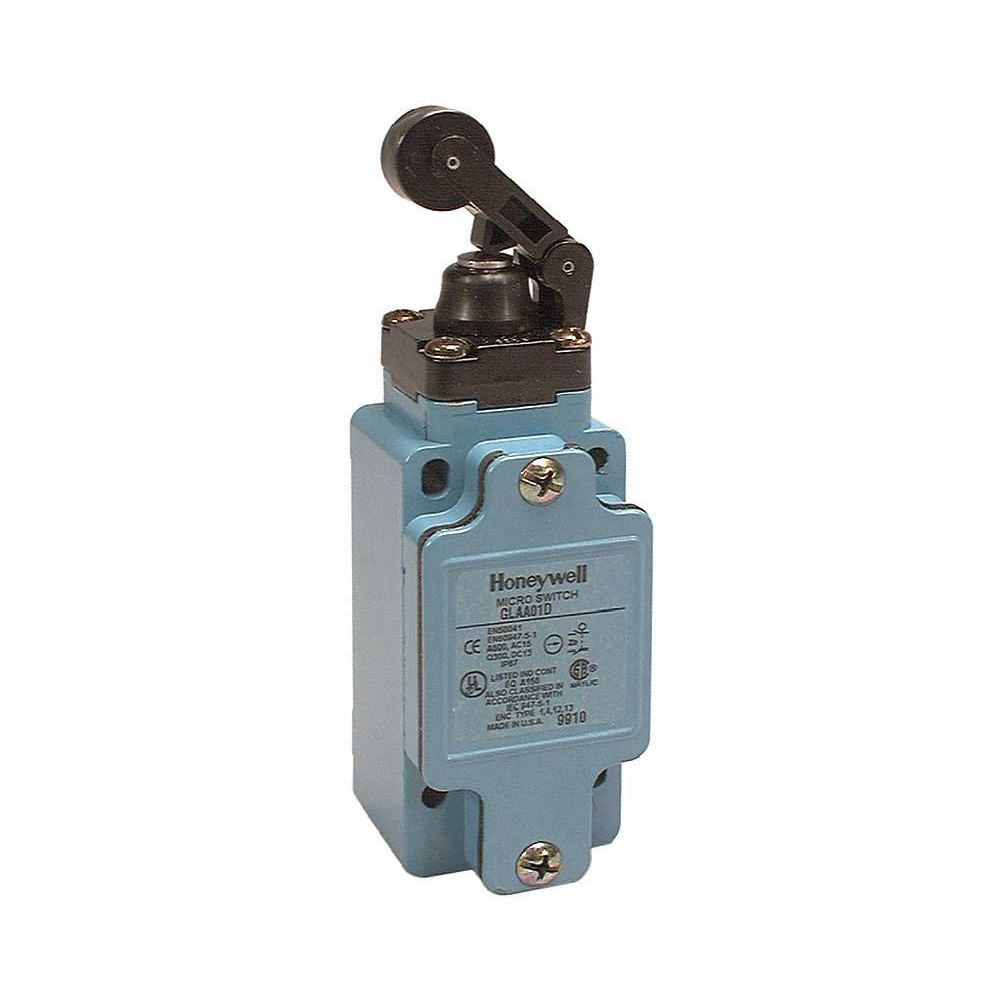

Honeywell Micro Switch Plunger, Roller Lever General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Linear Mov

Hover over image to magnify
Global Limit Switch
Global Limit Switch
Double tap image to magnify
Global Limit Switch
Global Limit Switch

#932471-4Pkg Qty: 1

$176.57 pkg | $176.57 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 14.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Designed for applications including machine tools, material handling, equipment, packaging machinery, textile machinery, construction vehicles, and lift trucks, this switch features rugged housing and galvanically isolated contacts. The contacts allow the switch to control separate circuits. The switch is engineered to perform up to 15 million operations.</p>

Designed for applications including machine tools, material handling, equipment, packaging machinery, textile machinery, construction vehicles, and lift trucks, this switch features rugged housing and galvanically isolated contacts. The contacts allow the switch to control separate circuits. The switch is engineered to perform up to 15 million operations.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Actuator Length
1.51 in.
Limit Switch Style
General Purpose Limit Switch
Actuator Location
Top
Mfr. Part Number
GLAA01D
Actuator Style
Horizontal Roller Lever
Movement
Linear
Amperage
10 A
NEMA Rating
1, 12, 13, 4
Arm Material
Plastic
Operating Force
2.1 in.-lb
Body Material
Zinc Die Cast
Package Quantity
1
Brand
HONEYWELL MICRO SWITCH
Roller Material
Plastic
Contact Form
1NC/1NO, SPDT, Snap Action
Roller Width
0.31 in.
Contact Type
Snap Action
Series
Gla/Gls
Depth
1.65 in.
Shipping Weight
1.05 lb.
Description/Special Features
Zinc Die-Cast EN 50041 Housing, 0.5 in. - 14 NPT Conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 15 Million Operations
Style
Mechanical Actuator Operated
Electrical Connection
Screw Terminals
Travel
Differential Travel 0.067 in., Maximum Pretravel 0.165 in., Minimum Over Travel 0.35 in.
Hazardous Location
No
Type
Top Roller Arm Actuator
Height
3.23 in.
Voltage
600 VAC/250 VDC
IP Rating
67
Voltage Rating
600 VAC/250 VDC
Item
General Purpose Limit Switch
Width
1.65 in.
General
AC Contact Rating - Limit Switch
10A @ 600V
Contact Form- Switches
1NC/1NO
Actuator Length - Limit Switch
1.51 in
DC Contact Rating - Limit Switch
10A @ 250V
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Plunger, Roller Lever
Mounting Hole - Limit Switch
(4) 0.21 in dia
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Body Depth - Limit Switch
1.65 in
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Body Height - Limit Switch
3.23 in
Operating Temp. Range
-13° to 185°F
Body Style - Limit Switch
Standard
Standards
CCC. IEC 947-5-1, CE, CSA, EN60947-5-1, UL, UL508
Body Width - Limit Switch
1.65 in
Stem Thread - Limit Switch
No Stem

Product Description

Designed for applications including machine tools, material handling, equipment, packaging machinery, textile machinery, construction vehicles, and lift trucks, this switch features rugged housing and galvanically isolated contacts. The contacts allow the switch to control separate circuits. The switch is engineered to perform up to 15 million operations.
