AIR HANDLER

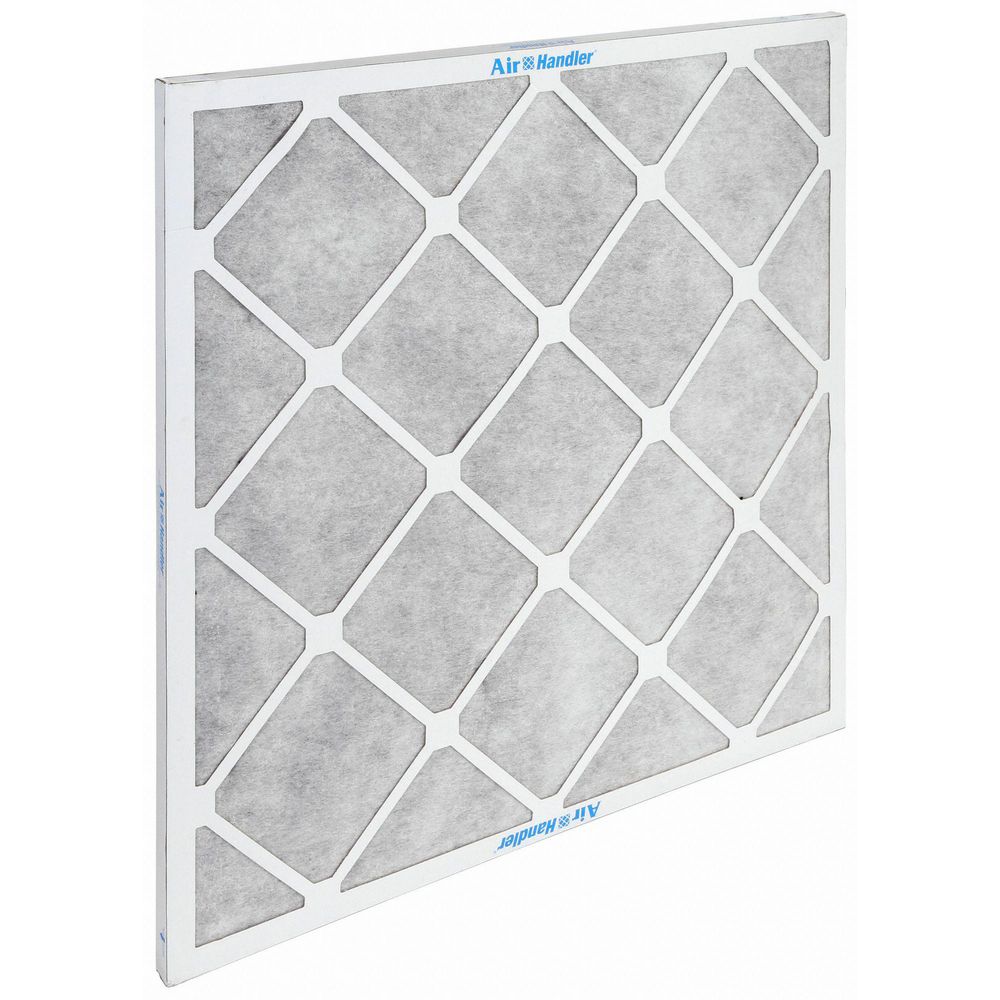

Air Handler Odor Removal Non-Pleated Air Filter, 24x24x2, Active Carbon Honeycomb

Hover over image to magnify
Odor Removal Non-Pleated
PI_Asset_1768406
Odor Removal Non-Pleated
PI_Asset_1768406

#932349-3 | Pkg Qty: 4

$642.76 pkg | $160.69 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Actual Depth
1-3/4 in.
Mfr. Part Number
6W746
Actual Height
23-3/8 in.
Nominal Depth
2 in.
Actual Width
23-3/8 in.
Nominal Height
24 in.
Brand
AIR HANDLER
Nominal Width
24 in.
Item
Odor Removal Non-Pleated Air Filter
Package Quantity
4
Media Area
4 sq. ft.
Shipping Weight
28 lb.
General
Actual Filter Size
23-3/8 in x 23-3/8 in x 1-3/4 in
Max. Temp.
180 Degrees F
CCL4 Activity
0.6
Max. Velocity
500 fpm
Carbon Concentration
0.45 g /mL
Media Material
Active Carbon Honeycomb
Common Applications
Heavy-Duty Odor Removal
Nominal Filter Size
24x24x2
Filter Efficiency - Air Filters
0.25
Performance Rating
Odor Removal
Frame or Header Material
Beverage Board
Standards
ASHRAE
Initial Resistance @ 300 fpm
0.48 in wc
Style - Air Filters
Panel
Initial Resistance @ 500 fpm
0.80 in wc

Product Description

Use these odor removal panel air filters to trap odors, VOCs (volatile organic compounds, such as fumes given off by paint or cleaning chemicals), exhaust fumes, and other gaseous contaminants. These air filters are commonly used in industrial areas to remove unpleasant smells in the air and capture harmful airborne pollutants to improve indoor air quality.

Odor removal panel air filters contain activated charcoal that absorbs unpleasant odors and other gaseous contaminants in the air stream to improve indoor air quality. They are designed to be thrown out when they are spent. These carbon air filters are commonly installed in HVAC systems in commercial buildings, data centers, food and beverage facilities, hospitality sites, museums, artifact storage facilities, schools, and universities.

Item Barcode
9323493
Odor Removal Non-Pleated
 NameItemDescription
Grainger DropshipGrainger Dropship6W746Odor Removal Non-Pleated
UNSPSC CODESUNSPSC CODES40161505
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Odor Removal Non-Pleated
