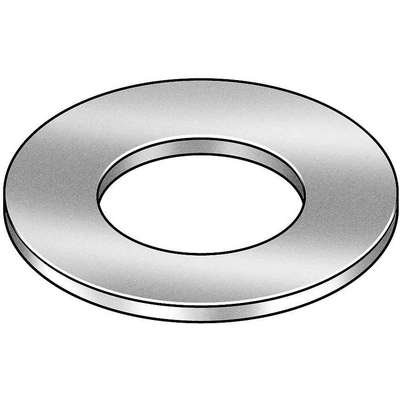

Disc Spring: Belleville, 0.5 For Rod Size, High Carbon Steel, 1 For Hole Size
Hover over image to magnify
#932117-4 | Pkg Qty: 12
$11.16 pkg | $0.93 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Overall Height
0.091 in.
Item
Disc Spring
Pack Quantity
12
Mfr. Part Number
1NDH9
Shipping Weight
.13 lb.
General
Calculated Load @ Flat (Lbs.)
1335
Load @ Deflection (Lbs.)
573 to 777
Deflection @ Load
0.009 in
Max. Outside Dia.
1 in
For Hole Size
1
Min. Inside Dia.
0.505 in
For Rod Size
0.5
Product Description
Disc Spring,Belleville,High Carbon Steel,Finish -,Min. Inside Dia. 0.505 in,Max. Outside Dia. 1.0 in,Thickness 0.073 in,Overall Height 0.091 in,For Hole Size 1,For Rod Size 0.5,Load @ Deflection (Lbs.) 573 to 777,Deflection @ Load 0.009 in,Calculated Load @ Flat (Lbs.) 1335,Meets/Exceeds ASTM-A684
Item Barcode
Disc Spring,Belle,0.5,High
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1NDH9 | Disc Spring, Belle,0.5, |
 | UNSPSC CODES | 31161906 | |
 | VMRS (ATA) CODES | 053-006-009 | Disc Spring, Belle,0.5, |
