DAYTON

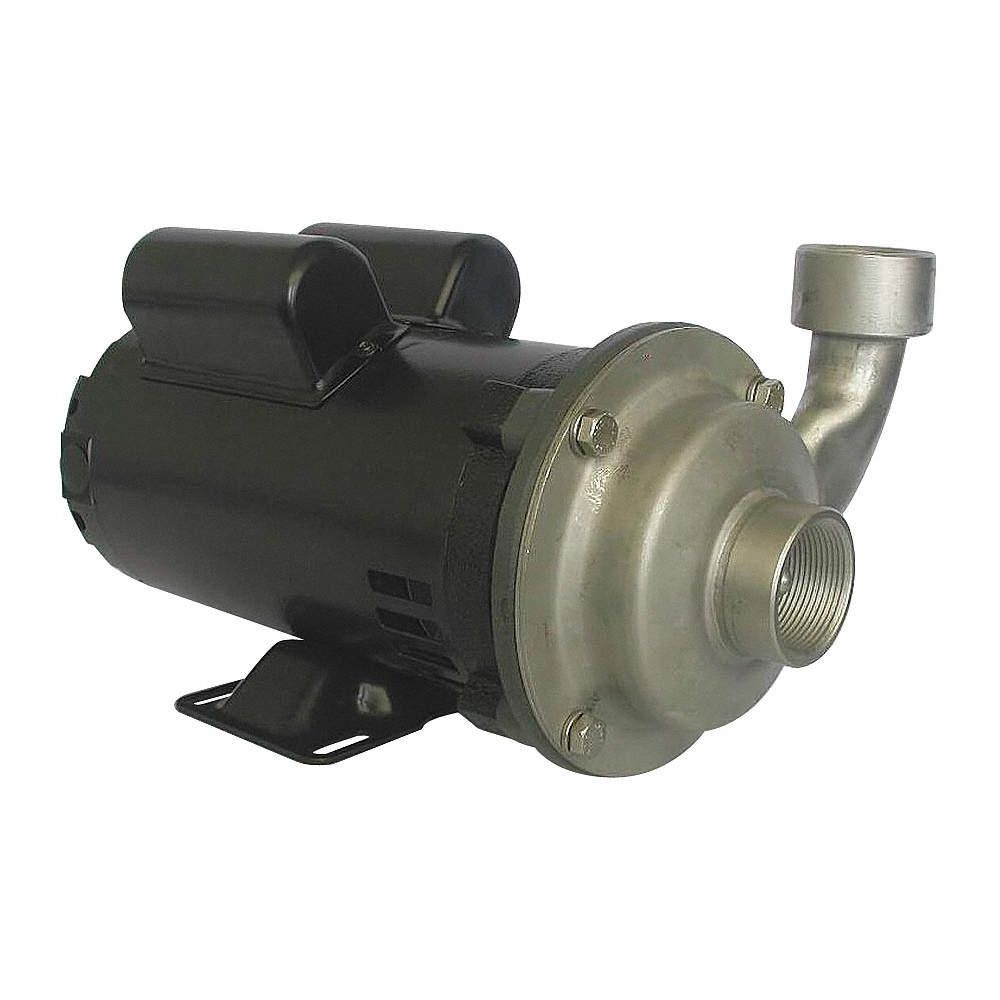

Centrifugal Pump: 1/2 hp HP, 115/230, 38 gpm @ 5 ft, 50 ft Max. Head, 3/4 in NPT, 3/4 in NPT

Hover over image to magnify
Pump, 1/2 Hp, 115/230V, 7.2/3.
Pump, 1/2 Hp, 115/230V, 7.2/3.

#932057-8 | Pkg Qty: 1

$758.75 pkg | $758.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
CUS
Mfr. Warranty Length
1 yr.
Amps
7.2/3.6
Motor Enclosure
ODP
Best Efficiency Range GPM @ Head
24 to 33 GPM @ 28 to 12 ft.
Motor Type
PSC
Brand
DAYTON
Outlet
3/4 in. NPT
Duty
Continuous
Pack Quantity
1
GPM of Water @ 150 Ft. of Head
32
Phase
1
Housing Material
304 Stainless Steel
Screw Material
Stainless Steel
Hz
60
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Impeller Material
304 Stainless Steel
Seal Type
Mechanical
Inlet
3/4 in. NPT
Shaft Material
Stainless Steel
Item
Centrifugal Pump
Shipping Weight
30 lb.
Length
13-5/16 in.
Voltage
115/230
Mfr. Part Number
4JMV3
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
General
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
Max. GPM @ Head
38 gpm @ 5 ft
HP
1/2 hp
Max. Head
50 ft
Includes
Manual
Max. Liquid Temp.
200 Degrees F
Max. Case Pressure
150 psi
Max. Specific Gravity
1
Max. Dia. Solids
1/8 in
Min. GPM @ Head
5 gpm @ 40 ft
Max. Fluid Viscosity
31 SUS

Product Description

Stainless Steel Centrifugal Pumps are designed for continuous duty and are intended for use with clear, non-abrasive and nonflammable liquids compatible with the pump material make-up. These pumps are a non-self priming, gravity feed design; they will pull water a maximum of 15 ft. with the pump and suction line completely filled with water and a foot valve on the end of the suction line. Pumps operate with a 3450RPM motor. Single phase pump motors have thermal protection; it automatically shuts off with sudden rises in temperature and restarts after cooling down. All models are manual mode and require field wiring, no controls are supplied. Check motor wiring before putting units into operation (see motor nameplate for specific wiring diagram)
