Airotronics Multi-Function Encapsulated Timing Relay, 120V AC, Mounting: Surface, SPDT

Hover over image to magnify

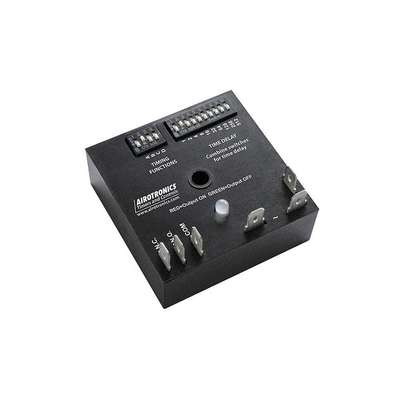

Encapsulated Timing Relay,
Encapsulated Timing Relay,

#932011-2 | Pkg Qty: 1

$51.72 pkg | $51.72 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adjustment Method
Dip Switch
Mounting
Surface
Base Type
Surface
Number of Contacts
2
Brand
AIROTRONICS
Number of Functions
5
Coil VA Rating
120 VAC
Operating Functions
1, 2, 4, 5
Coil Volts
120 VAC
Output
Relay
Contact Form
SPDT
Package Quantity
1
Contact Material
Silver Tin
Pins
6
Function
On Delay, Off Delay, Single Shot, interval, Resettable Single Shot/Watchdog
Shipping Weight
.3 lb.
Hz
50/60
Socket Code
Surface
Input Voltage
120 VAC
Status Indicator
LED
Input or Control Voltage
120 VAC
Type
Dip Switch
Item
Multi-Function Encapsulated Timing Relay
Type of Output
Relay
Mfr. Part Number
MC1003631H
General
AC Contact Rating - Relay
10A @ 120V
Hz - Electrical
50 Hz, 60 Hz
Adjustment Method - Timer
Dip Switch
Max. Time Setting - Timer
17 hr
Body Depth - Relay
2.5 in
Min. Time Setting - Timer
0.1 sec
Body Height - Relay
0.83 in
Mounting - Relay
Surface
Body Width - Relay
2.5 in
Number of Pins - Relay
6
Contact Form - Relay
SPDT
Overall Height - Relay
1.3 in
Function - Timing Relay
Interval, Off Delay, On Delay, One Shot, Watchdog (Resettable One Shot)
Standards
UL508, Ulr
HP @ 120V
NO, 1/10 @ 3AFLA
Timer Range
0.10 sec. to 1023 min.
HP @ 240V
NO, 1/6 @ 2AFLA

Product Description

Solid-state technology provides a long service life, reducing maintenance costs and production loss due to downtime. 1/4" quick-connect.

When power is applied to the coil (the start switch must be jumped in multifunction timers), the interval timing period begins and the contacts transfer, either connecting (normally open contacts) or disconnecting (normally closed contacts) the load. When the interval timing period ends the contacts return to their original position. The unit resets when power is removed from the coil, making the unit ready for a new cycle.
