Home All Products Tools Pneumatic Tools Riveters SKU: 931988-1
Share
Print
POP AVDEL

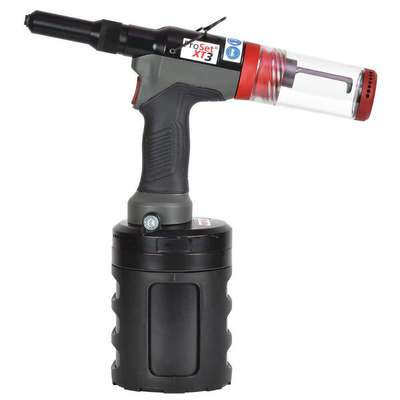

Pop Avdel Air Powered, Rivet Tool, 102 psi, Industrial Duty

Hover over image to magnify
Riveter,Industrial Duty,2320
Riveter,Industrial Duty,2320

#931988-1 | Pkg Qty: 1

$800.97 pkg | $800.97 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
0.61 CFM
Overall Length
10 in.
Air Inlet
1/4 in. NPT
Overall Width
4 in.
Brand
POP AVDEL
Package Quantity
1
Duty
Industrial
Power Source
Air Powered
Housing Material
Steel
Pulling Force
2320 lb.
Item
Rivet Tool
Shipping Weight
4.14 lb.
Mfr. Part Number
76001-00003
Stroke Length
1 in.
Overall Height
9-5/8 in.
Tool Weight
2.6 lb.
General
Air Pressure
102 psi
Max. Air Pressure
90 psi
Blind Rivet Dia. - Aluminum
3/32 in, 1/8 in, 5/32 in
Min. Air Pressure
72 psi
Blind Rivet Dia. - Stainless Steel
3/32 in, 1/8 in, 5/32 in
Min. Hose Size
1/4 in
Blind Rivet Dia. - Steel
3/32 in, 1/8 in, 5/32 in, 3/16 in
Nose Dia.
1 in
Features
Produces Low Vibration And Minimal Noise
Nose Length
3 in
Includes Mandrel Collection
Yes

Product Description

Air-powered blind rivet installation tools compress blind rivets to join two pieces of metal. Rivets are placed into a pre-drilled hole, and the tool compresses the end and breaks the rivet mandrel to leave a clean surface. The rivet mandrel is then ejected from the tool. Blind rivets (sometimes called pop rivets) can be installed when there is access to only one side of the workpiece.

Item Barcode
9319881
Riveter,Industrial Duty,2320
 NameItemDescription
Grainger DropshipGrainger Dropship443Z74Riveter, Industrial
UNSPSC CODESUNSPSC CODES27112402
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Riveter, Industrial

For more product information by email, click here
