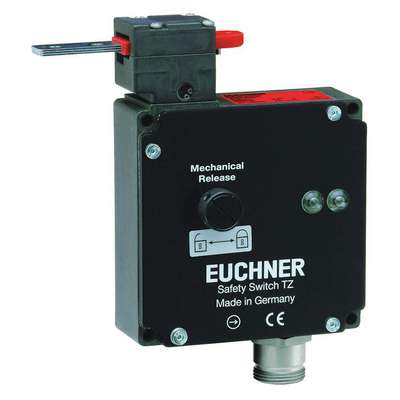

Euchner Safety Interlock Switch: Left and Top Opening/Solenoid Locking, 4NC, 4A @ 125V AC, 3A @ 24V
#931977-6 | Pkg Qty: 1
Drop Ship Item
Technical Specifications
Key Specifications
General
Product Description
Safety Interlock Switch, Left and Top Opening, Solenoid Locking, Contact Form 4NC, Actuator Length 2.33 in, AC Contact Rating 4A @ 125V AC, Series TZ, DC Contact Rating 3A @ 24V, Solenoid Voltage 24V AC/DC, Height 5.9 in, Width 4.33 in, Depth 1.57 in, IP Rating 65, Contact Material Silver, Conduit Size M20, Body Material Aluminum Die-Cast, Head Material Aluminum Die-Cast, Description/Special Features Right Hand Operation, Over Travel 4mm, Movement Horizontal, Operating Force 8 lb
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 45GV16 | Safety Interlock |
 | UNSPSC CODES | 39122205 | |
 | VMRS (ATA) CODES | 053-006-009 | Safety Interlock |
