HUBBELL

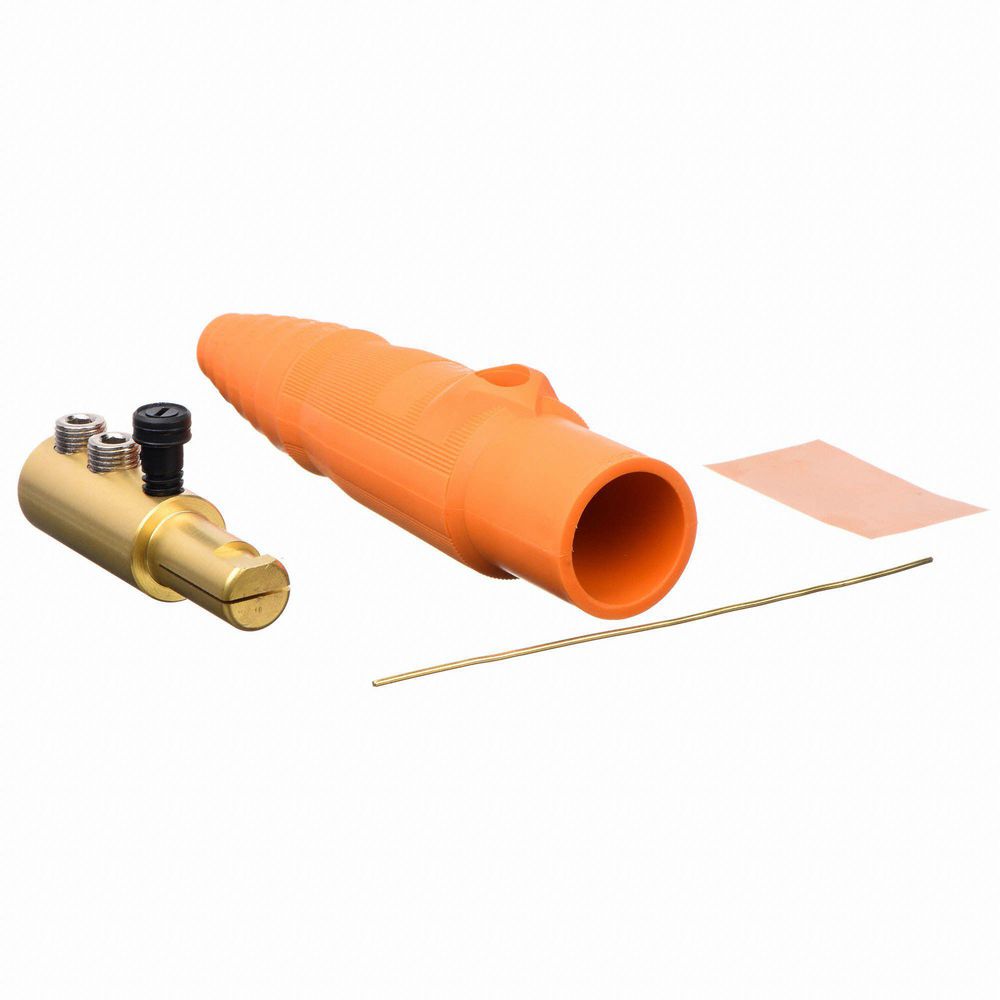

Hubbell Connector, 12, 3R, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose
Hover over image to magnify
#931747-6 | Pkg Qty: 1
$63.02 pkg | $63.02 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
400
Material
Thermoplastic Elastomer
Amps AC/DC
400AC/DC
Material of Construction
Thermoplastic Elastomer
Brand
HUBBELL
Maximum Wire Size
4/0 AWG
Cable Range
2/0 to 4/0
Mfr. Part Number
HBL400MO
Cable Size Range
2/0 to 4/0 in.
Minimum Wire Size
2/0 AWG
Color Family
Orange
NEMA Rating
12, 3R, 4X
Compatible With
15; 16; Insulgrip
Overall Length
7.01 in.
Conductor Material
Brass
Package Quantity
1
Contact Material
Brass
Power Terminals Wire Size
2/0 to 4/0
Contact Type
Single Cam
Series
16
Current Rating
400 A
Shipping Weight
.73 lb.
Device Type
Male Plug
Single Pole Device Style
Taper Nose
End Type
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Fits
UL1691
Terminal Connection
Double Set Screw
Housing Color
Orange
Type
Male
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Item
Connector
Voltage Rating
250V DC, 600V AC
Male/Female
Male
General
Compatible with Series
15; 16; Insulgrip
Overall Width
1.95 in
Gender
Male
Terminal Connection Type
Double Set Screw
Product Description
Connector, NEMA Rating 12, 3R, 4X, Series 16, Amps AC/DC 400AC/DC, Single Pole Device Style Taper Nose, Cable Range 2/0 to 4/0, Voltage Rating 600V AC/250V DC, Terminal Connection Double Set Screw, Male/Female Male, Color Orange, Material Thermoplastic Elastomer, Conductor Material Brass, Fits UL1691, Power Terminals Wire Size 2/0 to 4/0, Standards cUL, UL
Item Barcode
Connector,3R, 4X, 12,Male,Org,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 20TR53 | Connector,3R, 4X, 12,Male, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector,3R, 4X, 12,Male, |
