GROZ

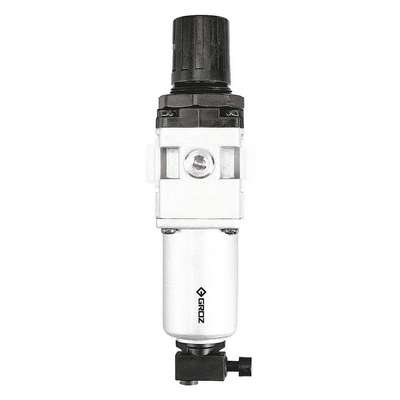

Filter-Regulator: 1/2 in NPT, 106 cfm, 40 micron, 7 psi to 145 psi, 220 psi Max Op Pressure
Hover over image to magnify
#931713 | Pkg Qty: 1
$103.19 pkg | $103.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
GROZ
Overall Height
13 in.
Item
Filter-Regulator
Package Quantity
1
Mfr. Part Number
FRC159334-MS
Shipping Weight
3.8 lb.
General
Adjustment Location
Top
For Removal Of
Dirt, Dust, Moisture
Adjustment Mechanism
Knob
For Substance Type
Air
Adjustment Mechanism Material
Acetal
Gauge Port Size
1/8 in
Adjustment Range
7 to 145 psi
Includes
(1) Filter-Regulator Combination
Adjustment Range - Air Treatment
7 to 145 psi
Max. Flow - Air Treatment
106 cfm
Air Flow Direction
Left to Right
Max. Flow Range - Air Treatment
101 to 150 cfm
Air Inlet Gender
Female
Max. Incoming Pressure - Air Treatment
215 psi
Air Inlet Type
NPT
Maximum Flow @ 100 psi
106 cfm
Air Outlet Gender
Female
Maximum Regulated Pressure
145 psi
Air Outlet Size
1/2 in
Minimum Regulated Pressure
7 psi
Air Outlet Type
NPT
Modular Connection
Modular Connection
Bowl Material - Air Treatment
Aluminum
Pressure Drop
17 psi
Bowl Size - Air Treatment
3.0 oz
Pressure Gauge Port Gender
Female
Connection Size - Air Treatment
1/2 in NPT
Pressure Gauge Port Size
1/8 in
Drain Part Compatibility
SC2006
Pressure Gauge Port Type
NPT
Filter Bowl Capacity
3 oz
Regulator Type
Relieving
Filter Bowl Material
Metal
Sight Gauge Included
Yes
Filter Element Material
Bronze
Size - Air Treatment
Standard
Filter Rating - Air Treatment
40 micron
System Location
Air Line
For Fluid Type
Compressed Air
Product Description
Air filter and air regulator all in a single unit. Features a nighttime drain that automatically operates once the main air line is switched off. The built-in bronze filter can be easily cleaned and offers long service life.
