LEESON

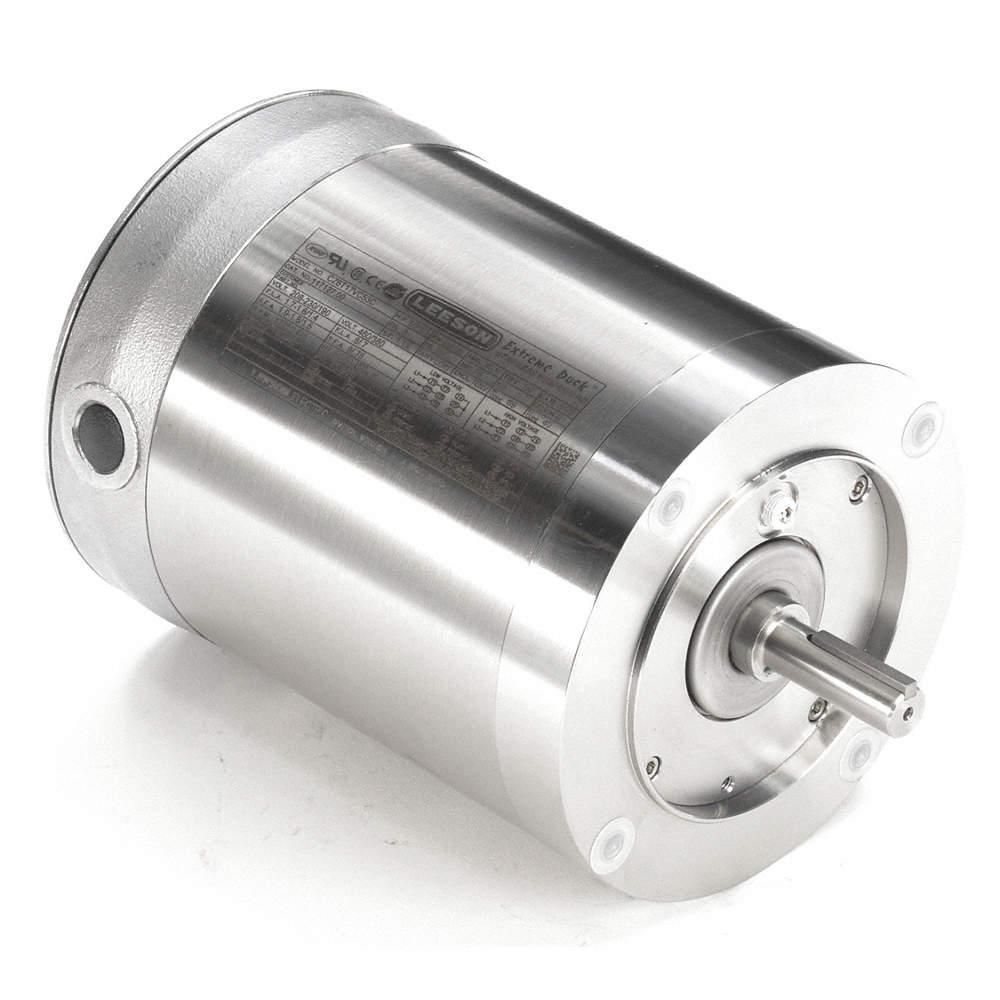

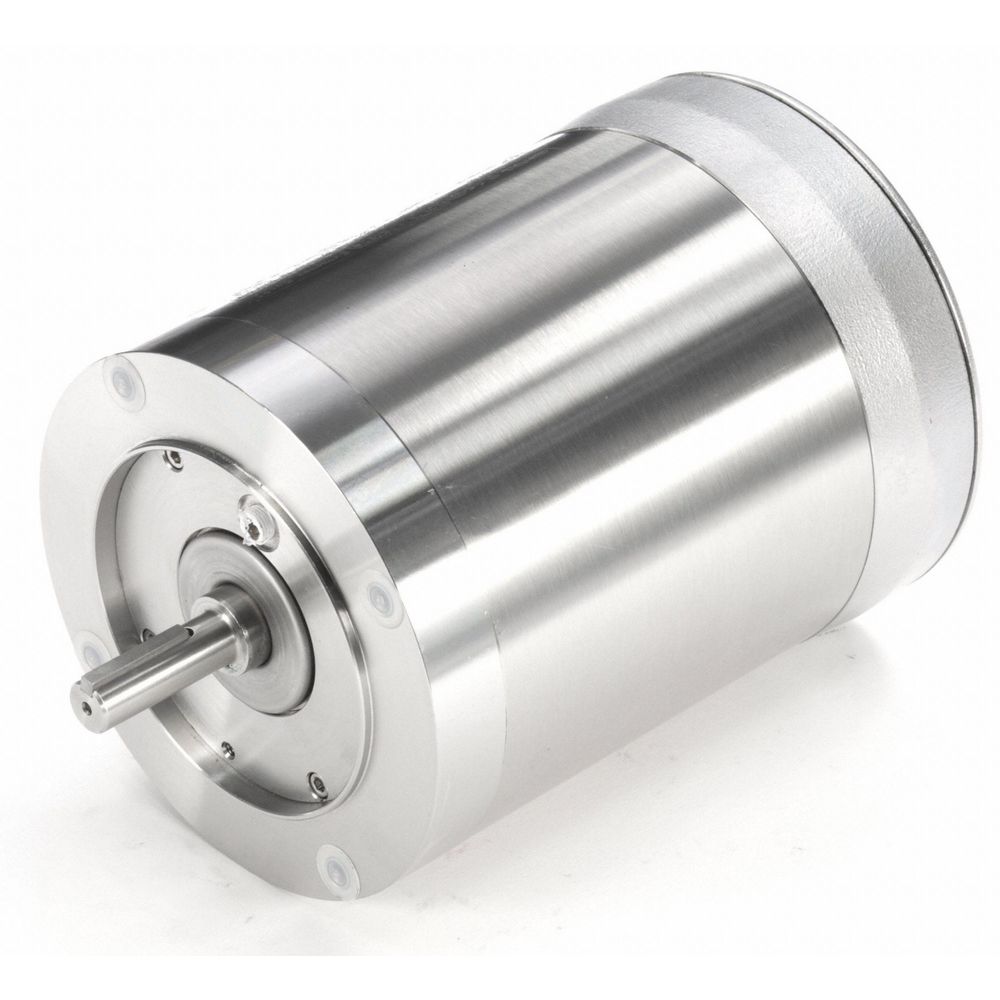

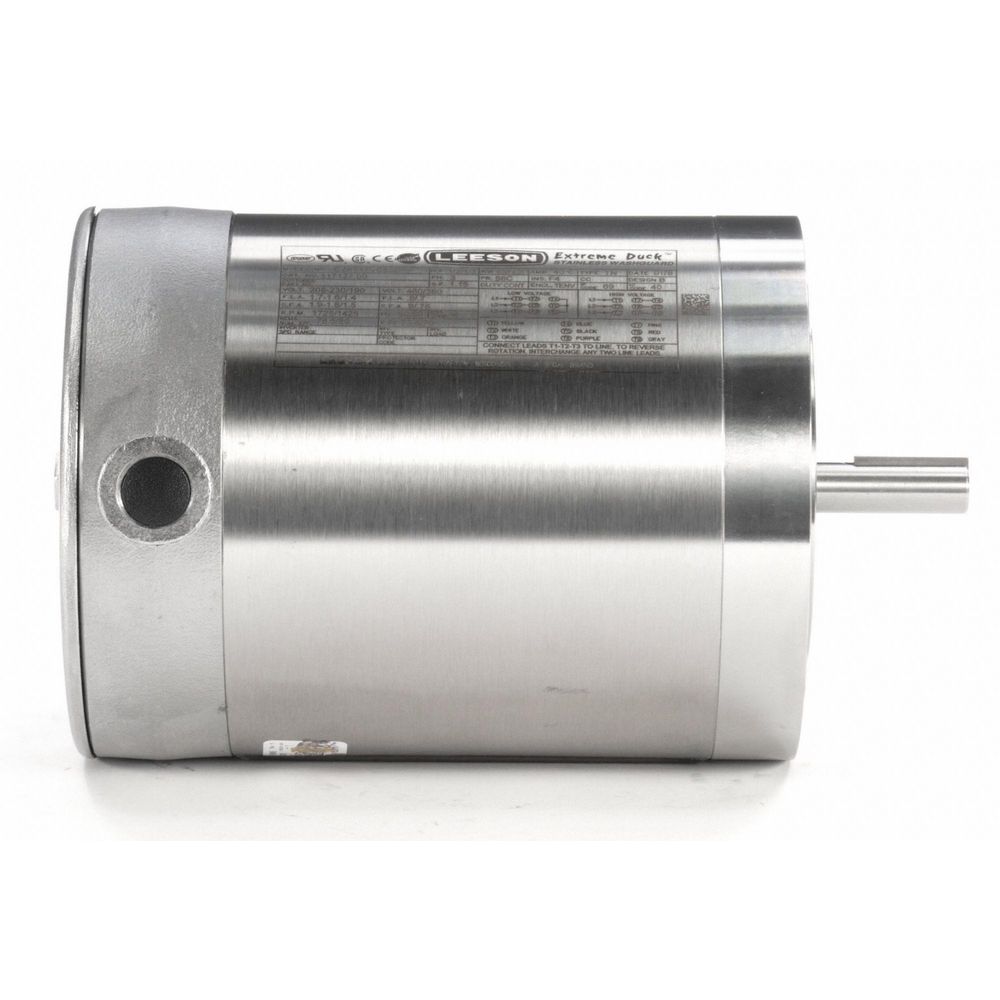

Leeson Washdown Motor, 1/2 HP, 3-Phase, Nameplate RPM 1,725, Voltage 208-230/460V AC, 56C Frame
Hover over image to magnify
Double tap image to magnify
#931644-1Pkg Qty: 1
$2,102.65 pkg | $2,102.65 ea
In Stock
Shipping to 43085
Expected to arrive Mon. Apr 14.
Shipping Restrictions May Apply
This product cannot be shipped to some parts of the United States and Canada.
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
Pkg Qty 1 | Order Qty 1
Technical Specifications
Key Specifications
Bearings
Ball
Motor Design
3-Phase
Brand
LEESON
Motor Type
3-Phase
Duty
Continuous
Mounting
Face
Duty Cycle
Continuous
NEMA/IEC Frame
56C
Enclosure
Totally Enclosed Nonventilated
Nameplate RPM
1725
Footnotes
11, 8
Overall Length
11 in.
Frame
56C
Package Quantity
1
Frame Material
Stainless Steel
Phase
Three
Full Load Amps
1.6
Rotation
CW/CCW
Hz
60/50
Service Factor
1.15
Insulation Class
F
Shaft Length
1-7/8 in.
Item
Washdown Motor
Shaft Material
Stainless Steel
Length Less Shaft
9 in.
Shipping Weight
41.58 lb.
Mfr. Part Number
117127
Thermal Protection
None
Mfr. Warranty Length
1 yr.
Voltage
208-230/460 VAC
General
Application
Chemical Processing
Motor Mounting Position
Horizontal
Body Dia.
6.6 in
Motor Shaft Design
Keyed
Bolt Circle Dia.
5 7/8 in
Motor Shaft Rotation
CCW, CW
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
NEMA Design
B
Conduit Box Location
Exterior
No. of Speeds
1
Full Load Amps @ 50Hz
1.70-1.60/0.80
Nominal Efficiency
78.5 %
HP
1/2
RPM @ 50Hz
1,725
HP @ 50Hz
1/2
RPM Range
1,701-1,800
Includes
Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover
Shaft Dia.
5/8 in
Inverter Rated
Yes
Standards
BISSC Approved, CSA Certified, UL Recognized
Max. Ambient Temp.
40 °C
Usable @ 208V
Yes
Motor Application
Washdown
Voltage @ 50Hz
460V AC
Motor Efficiency Group
Standard Efficient
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Frame Material
Steel
Product Description
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
Documents
Item Barcode
Washdown Motor,3 Ph,Tenv,1/2
