Home All Products Material Handling Lifting, Pulling and Positioning Cranes and Festoon Equipment Gantry Cranes SKU: 931569-6
Share
Print
HARRINGTON

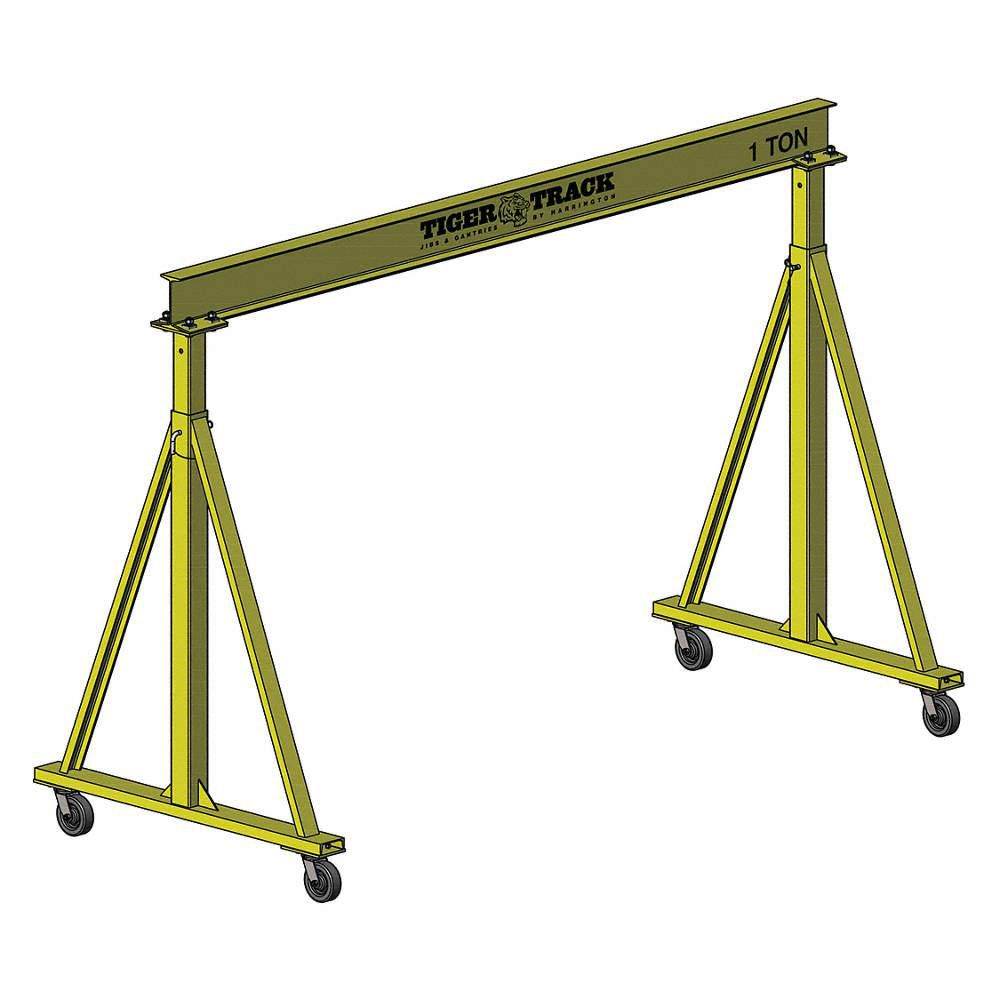

Harrington Portable Gantry Crane, 2000 lb. Load Capacity, 4.00" I Beam Flange Width, 125" Min. I Beam Height

Hover over image to magnify
Portable Gantry Crane,2000 Lb.,
PI_Asset_1763807
Portable Gantry Crane,2000 Lb.,
PI_Asset_1763807
Double tap image to magnify
Portable Gantry Crane,2000 Lb.,
21ZF10_1
Portable Gantry Crane,2000 Lb.,
21ZF10_1

#931569-6Pkg Qty: 1

$9,695.24 pkg | $9,695.24 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Ships from supplier. Expected to arrive by end of May, 2025.
|

Technical Specifications

Key Specifications
Adjustable Increments
12 in.
Load Capacity
2000 lb.
Brand
HARRINGTON
Material
Steel
Caster Material
Phenolic
Mfr. Part Number
512-2000-15-16
Caster Type
(4) Swivel
Mfr. Warranty Length
5 yr.
Color Family
Yellow
Package Quantity
1
Finish
Enamel
Shipping Weight
1495 lb.
Height Adjustment
Adjustable Height
Wheel Diameter
6 in.
Item
Portable Gantry Crane
Wheel Width
2 in.
General
Gantry Crane Clear Span
14 ft
Includes
(2) Supports, Beam with End Stops
Gantry Crane Depth
7 ft 6 in
Max. I Beam Height
192 in
I Beam Flange Width
4.0 in
Min. I Beam Height
125 in
I Beam Height
8.0 in
Standards
ANSI, AWS, CMAA, OSHA

Product Description

Portable Gantry Crane, Load Capacity 2,000 lb, Min. I Beam Height 125 in, Max. I Beam Height 192 in, Height Adjustment Adjustable Height, Adjustable Increments 12 in, Gantry Crane Span 15 ft, Gantry Crane Clear Span 14 ft, Gantry Crane Depth 7 ft 6 in, I Beam Height 8.0 in, I Beam Flange Width 4.0 in, Finish Enamel, Color Yellow, Material Steel, Caster Type (4) Swivel, Caster Material Phenolic, Wheel Diameter 6 in, Wheel Width 2 in, Standards ANSI, AWS, CMAA, OSHA
