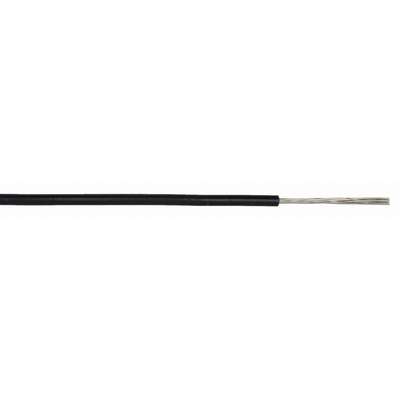

Carol Hookup Wire: 24 AWG Wire Size, Black, 100 ft Lg, PVC, 0.06 in Nominal Outside Dia.

Hover over image to magnify
Hookup Wire,24AWG,100ft,Blk
PI_Asset_1766849
Hookup Wire,24AWG,100ft,Blk
PI_Asset_1766849

#931339 | Pkg Qty: 1

$28.86 pkg | $28.86 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CAROL
Package Quantity
1
Color Family
Black
Shipping Weight
.45 lb.
Conductor Material
Fully Annealed Tinned Copper
Spool Length
100 ft.
Insulation
PVC
Stranded / Solid
Stranded
Insulation Material
PVC
Stranding
7 x 32
Item
Hookup Wire
Temperature Range
-4 to 221deg. F
Jacket Color
Black
Type
Hook Up, Stranded
Length
100 ft.
Voltage
300V
Mfr. Part Number
C2015A.12.01
Wire Color
Black
Nominal Outside Diameter
0.06 in.
Wire Size
24 AWG
General
Conductor Design
Stranded
Temp. Rating
-4° to 221°F
Standards
UL Style 1569 (UL 221 deg. F, 300 V), CSA TR-64: 194 deg. F, 300 V, RoHS Compliant Directive 2011/65/EU, Designed to meet UL VW-1 Vertical Wire Flame Test
Trade Designation
CSA TR-64, UL 1007, UL 1569
Temp. Range
-4° to 221° F

Product Description

Hookup wire is a small- to medium-gauge (24 to 8 AWG) insulated wire used to make internal connections inside enclosed electrical or electronic devices. It is typically used to supply power in low-voltage, low-current applications such as control panels, meters, ovens, and electronic equipment. It is resistant to acids, oils, and moisture and is easy to strip and cut.

Lead, hookup, and machine tool wire are thin, small- to medium-gauge (24 to 8 AWG) insulated wire used to establish internal electrical connections and provide power in appliances, motors, power tools, or other electronic equipment. They are commonly used in product assembly applications in manufacturing facilities.
