Home All Products Air Brake DOT Air Brake Fittings for Air Brake Tubing Push-to-Connect Fittings (DOT) Push-to-Connect Fittings (Composite) SKU: 931094-6
Share
Print
PARKER

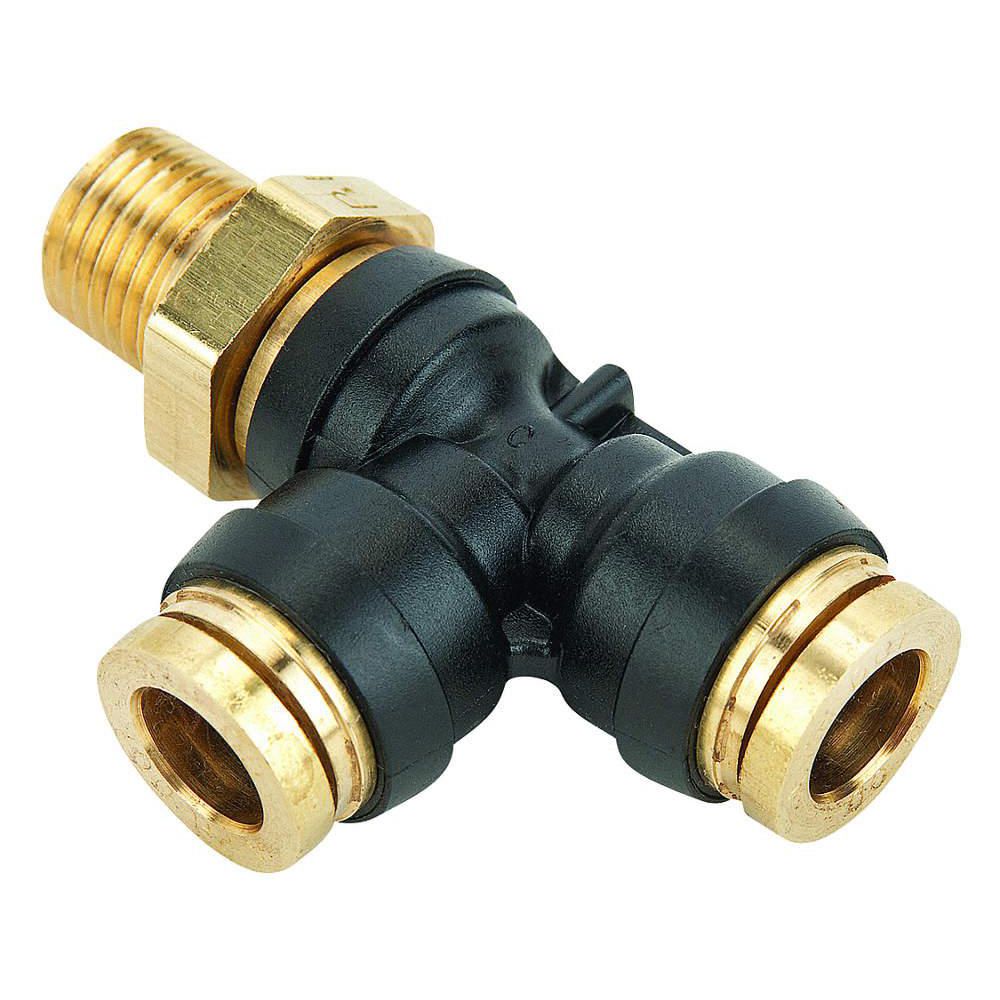

DOT Approved Male Run Tee: Composite, NPTF x Push-to-Connect x Push-to-Connect, 1/2 in. Tube OD x 1/4 in. Pipe Thread

Hover over image to magnify
Male Run Tee,1/4 In. Thread Sz,
Male Run Tee,1/4 In. Thread Sz,
Double tap image to magnify
Male Run Tee,1/4 In. Thread Sz,
Male Run Tee,1/4 In. Thread Sz,

#931094-6Pkg Qty: 1

$36.96 pkg | $36.96 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Apr 03.
|

Technical Specifications

Key Specifications
Brand
PARKER
Mfr. Part Number
371PTC-8-4
Composite DOT Push-to-Connect Fittings Type
Tees
Package Quantity
1
Connection
Tube x MNPT
Pipe Thread
1/4 in.
DOT Approved
Yes
Shape
Run Tee
Fitting Style
Composite
Shipping Weight
.16 lb.
Fitting Type
Push-To-Connect
Tube Outside Diameter
1/2 in.
Hex Size
15/16 in.
General
Application
Air
Fitting Side C Connection Type
Push-to-Connect
Compatible Tube Material
Nylon (J844 Type A and B), Stainless Steel
Fitting Side C Tube Outer Diameter
1/2 in
End Connection Type
Push-to-Connect, Threaded
Maximum Operating Pressure
250 psi
Fitting Body Material
Composite
Maximum Operating Temperature
200 Degrees F
Fitting Pipe Size
1/4 in
Minimum Operating Temperature
40 Degrees F
Fitting Shape
Tee
Resistance Properties
Compact-Resistant, Impact-Resistant
Fitting Side A Connection Type
NPTF
Specific Fitting Shape
Adapter Tee
Fitting Side A Pipe Size
1/4 in
Standards
DOTFMVSS 571106, SAE J1131, SAE J2494-3
Fitting Side B Connection Type
Push-to-Connect
System of Measurement
Imperial
Fitting Side B Tube Outer Diameter
1/2 in

Product Description

Male Run Tee, DOT Fitting, Length 2.55 In., Hex Size 15/16 In., Pipe Size 1/4 In., Tube Size 1/2 in, Thread Size 1/4 In., Pressure (PSI) 250, Outside Dia. 1/2 In., Connection Tube x MNPT, Temp. Range -40 Degrees to 200 Degrees F, Material Nylon, Gasket Material Buna N, For Use With SAE J844 Tubing, Standards DOTFMVSS 571106, SAE J1131, SAE J2494-3

Item Barcode

9310946
Male Run Tee,1/4 In. Thread Sz,

For more product information by email, click here
