OMRON

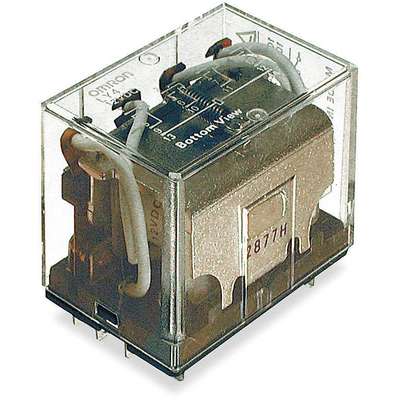

Omron 120VAC Coil Volts, General Purpose Relay, 10A @ 120VAC/10A @ 24VDC Contact Rating, Square
Hover over image to magnify
#930966-8 | Pkg Qty: 1
$19.23 pkg | $19.23 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Type
Square
Mounting
Square Plug in. Socket
Brand
OMRON
Number of Poles
4
Coil VA Rating
1.95
Pack Quantity
1
Coil Volts
120 VAC
Pins
14
Contact Form
4PDT
Plug-In Relay Style
General Purpose
Contact Material
Silver Alloy
Push To Test
Manual
Contact Rating
10A @ 120 VAC/24 VDC
Response Time
25 msec
HP @ 120 V
1/10 hp
Shipping Weight
.15 lb.
HP @ 240 V
1/3 hp
Socket
Mfr. No. PTF14A
Hz
60
Socket Code
F
Item
General Purpose Relay
Status Indicator
No
Mfr. Part Number
LY4-AC120
Type
Standard
General
AC Contact Rating - Relay
10A @ 120V
HP @ 120V
1/10 hp
Base Type - Plug In Relay
Square
HP @ 240V
1/3 hp
Body Depth - Relay
1.1 in
Mounting - Relay
Plug In
Body Height - Relay
1.42 in
Number of Pins - Relay
14
Body Width - Relay
1.63 in
Overall Height - Relay
1.69 in
Contact Form - Relay
4PDT
Power Consumption - Relay
2 VA
DC Contact Rating - Relay
10A @ 24V
Socket Code - Relay
F
Features
Arc Barrier Equipped, High Dielectric Strength (2000 VAC), Long Dependable Service Life Assured By Ag-Alloy Contacts
Standards
UL508
Product Description
General Purpose Relay, Coil Volts 120V AC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Base Type - Plug In Relay Square, Number of Pins - Relay 14, Contact Form - Relay 4PDT, Mounting - Relay Plug In, Socket Code - Relay F, Power Consumption - Relay 2.0 VA, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual
Expertly Selected Product Pairings
Item Barcode
Gen Purpose Relay,14 Pin,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2XC07 | Gen Purpose Relay,14 Pin, |
 | UNSPSC CODES | 39122325 | |
 | VMRS (ATA) CODES | 053-006-009 | Gen Purpose Relay,14 Pin, |
