TB WOOD'S

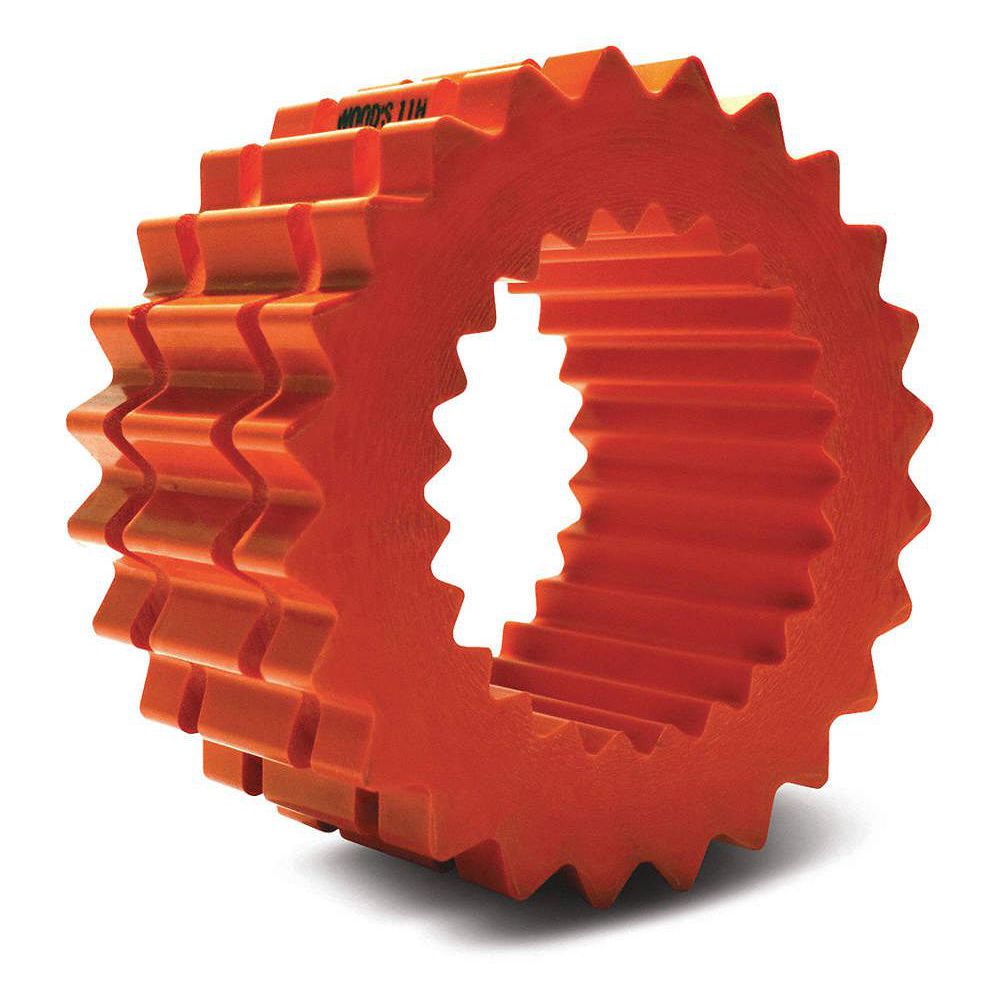

10 Size H Flange Type One-Piece Solid Sleeve Coupling Insert, Rated Torque: 11, 350"-lb.
Hover over image to magnify
#930958-8 | Pkg Qty: 1
$520.94 pkg | $520.94 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
TB WOOD'S
Operating Temperature Range
-65 deg. F to 250 deg. F
HP Rating @ 100 RPM
18 HP
Outside Diameter
7.06 in.
HP Rating @ 1200 RPM
216.1
Package Quantity
1
HP Rating @ 1800 RPM
324.16
Rated Torque
11,350 in-lb.
HP Rating @ 3600 RPM
621.3
Shipping Weight
2.94 lb.
Insert Design
One-Piece Solid
Size
10
Item
Sleeve Coupling Insert
Sleeve Coupling Insert Flange Type
H
Material
Hytrel
Type
Sure-Flex Plus
Maximum RPM
3600 RPM
Width
3.44 in.
Mfr. Part Number
10H
General
Application
Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Material - Inserts
Hytrel
Flange Type - Sleeve Couplings
H
Size - Sleeve Couplings
10
Insert Design - Couplings
One-Piece Solid
Product Description
Offering clean, dependable, quiet performance, this low-maintenance sleeve coupling insert is easy to install. The 4-way flex absorbs shock, misalignment, and end float. No lubrication is required. Use it with other Sure-Flex® Plus coupling components, available separately, for a complete assembly.
Documents
Item Barcode
Sleeve Coupling Insert,10H,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 32ZR03 | Sleeve Coupling |
 | UNSPSC CODES | 31163003 | |
 | VMRS (ATA) CODES | 053-006-009 | Sleeve Coupling |
