MIDWEST INSTRUMENT

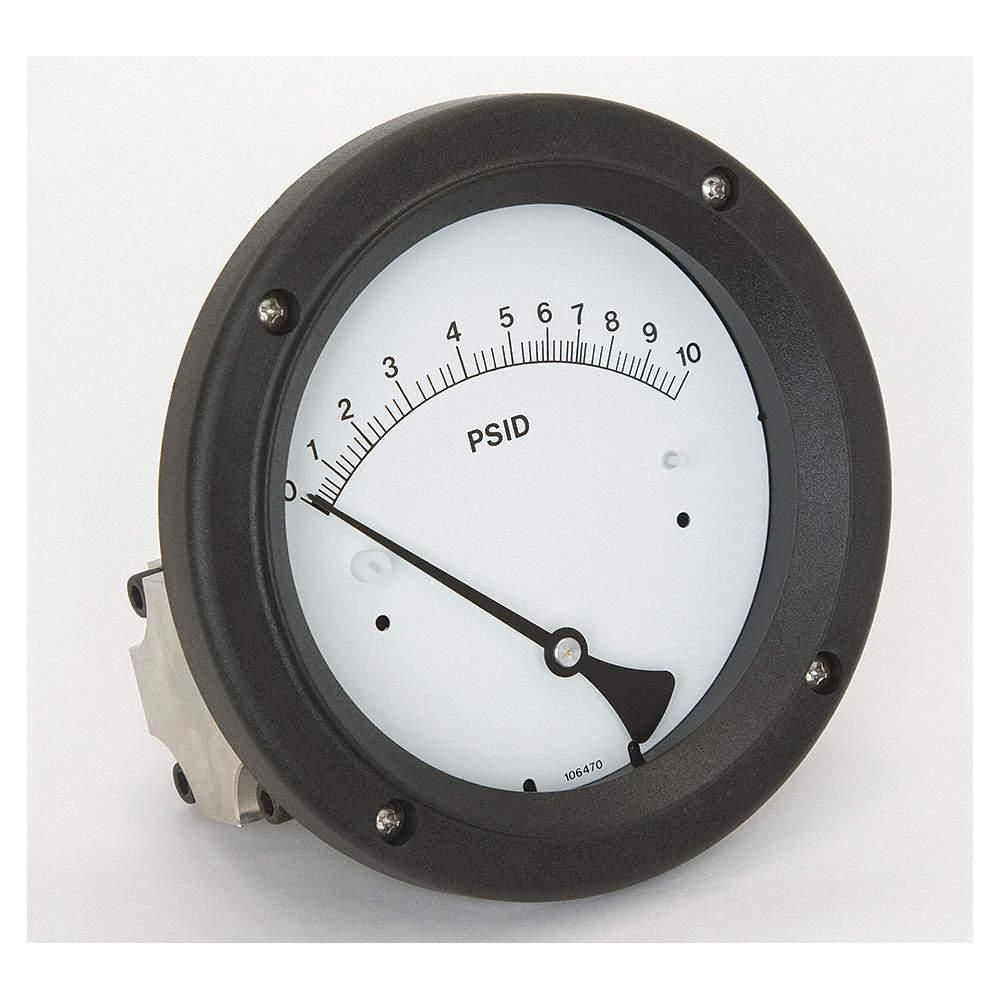

MIDWEST INSTRUMENT 142-AC-00-OO-10P 1/4" FNPT Differential Pressure Gauge with 4-1/2" Dial, 0 to 10 psi

Hover over image to magnify
Pressure Gauge,0 To 10 PSI
Pressure Gauge,0 To 10 PSI

#930835-4 | Pkg Qty: 1

$404.21 pkg | $404.21 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MIDWEST INSTRUMENT
Item
Differential Pressure Gauge
Calibration Certificate Included
No
Mfr. Part Number
142-AC-00-OO-10P
Gauge Accuracy
±3-2-3%
Mfr. Warranty Length
5 yr.
Gauge Application
Compressors, Filtration Monitoring, Flow Measurement, Hydraulics, Liquid Level Measurement, Pressure Detection, Pumps, Refrigeration, Water Purification or Irrigation
Mounting Type
Panel-Mount
Gauge Case Material
Plastic
Non-Sparking
No
Gauge Connection Size
1/4 in.
Operating Temperature Range
-40 deg. F to 200 deg. F
Gauge Connection Type
FNPT
Package Quantity
1
Gauge Lens Material
Acrylic
Pressure Range
0 to 10 psid
Gauge Nominal Dial Size
4-1/2 in.
Series
Series 142
Gauge Panel Mountable
Yes
Shipping Weight
2.4 lb.
Gauge Sensor Material
Buna-N
General
Includes
Instructions
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE

Product Description

Differential Pressure Gauge, Gauge Nominal Dial Size 4 1/2 in, Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Buna-N, Differential Gauge Connection Type FNPT, Differential Gauge Connection Size 1/4 in, Gauge Connection Location Back, Differential Pressure Range Units psi, Differential Pressure Range Value 0 to 10, Gauge Accuracy +/-3-2-3 Percent, Body Material Aluminum, Gauge Primary Range Smallest Graduation 0.5, Diaphragm Material Buna-N, Seal Material Buna-N
