SQUARE D

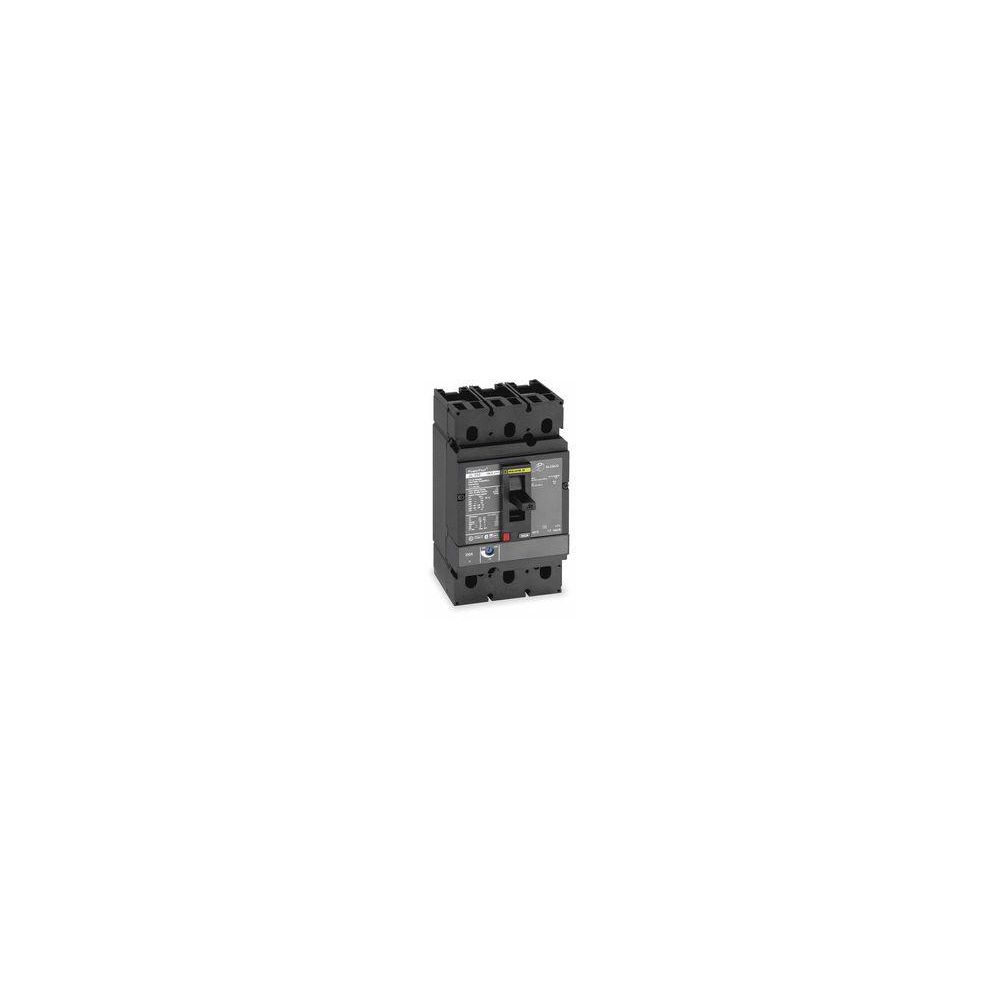

Square D Circuit Breaker, 175 Amps, Number of Poles: 3, 600VAC AC Voltage Rating

Hover over image to magnify
Circuit Breaker,175A,3P,600VAC,
PI_Asset_1768955
Circuit Breaker,175A,3P,600VAC,
PI_Asset_1768955
Double tap image to magnify
Circuit Breaker,175A,3P,600VAC,
1MBB2_1
Circuit Breaker,175A,3P,600VAC,
1MBB2_1

#930824-3Pkg Qty: 1

$4,435.76 pkg | $4,435.76 ea

In Stock

Shipping to 43085
Ships from supplier. Expected to arrive by end of May, 2025.
|

Technical Specifications

Key Specifications
AC Voltage Rating
600VAC
Item
Molded Case Circuit Breaker
Air @ 120 VAC
Not Rated
Low Amp Trip Setting
875 A
Air @ 125 VDC
Not Rated
Maximum Air Rating
25kA at 240VAC
Air @ 240 VAC
65kA
Maximum DC Voltage
250
Air @ 277 VAC
Not Rated
Maximum Wire Size
4 AWG
Air @ 48 VDC
Not Rated
Mfr. Part Number
JGL36175
Air @ 480 VAC
35kA
Minimum Wire Size
4 AWG
Air @ 600 VAC
18kA
Mounting
Free Standing
Air @ 65 VDC
Not Rated
Number of Poles
3
Amperage
175 A
Package Quantity
1
Amps
175 A
Phase
Three
Brand
SQUARE D
Phase Connection
ABC
Circuit Breaker Type
Standard
Series
JG
DC Voltage Rating
500VDC
Shipping Weight
4.9 lb.
Depth
5 in.
Terminal Connection
Line/Load Lug
For Use With
I Line Panelboards
Trip Type
Thermal Magnetic
Frame Size
250A/JG
Type
Free Standing
Height
7.52 in.
Voltage
600VAC
High Amp Trip Setting
1750 A
Width
4.12 in.
Instantaneous Trip
Instantaneous
General
AIR @ 480VAC
35.0kA
Standards
CCC, CE, CSA, IEC
Circuit Breaker Actuator
Toggle

Product Description

These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
