DAYTON

Dayton Rotary, No Lever Heavy Duty Limit Switch; Location: Side, Contact Form: SPDT, CW, CCW Movement

Hover over image to magnify

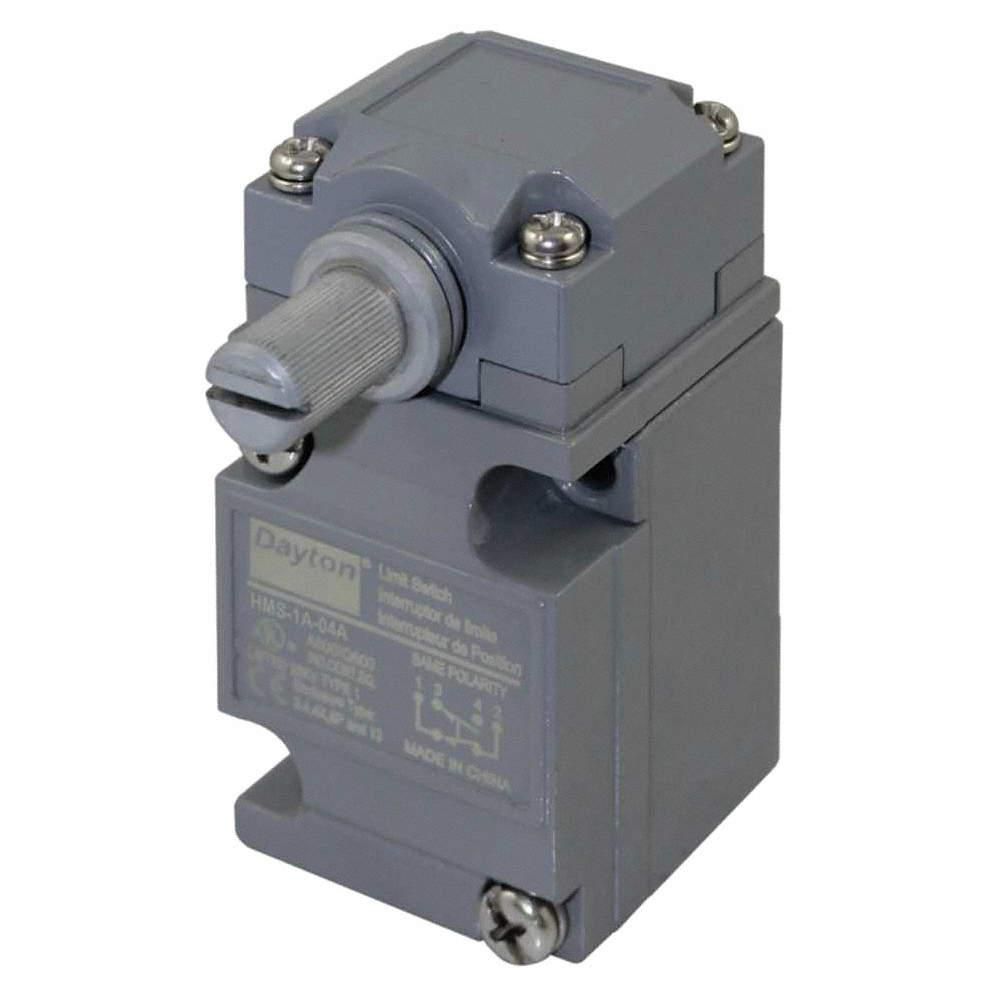

Heavy Duty Limit Switch
Heavy Duty Limit Switch
Double tap image to magnify
Heavy Duty Limit Switch
Heavy Duty Limit Switch

#930482-9Pkg Qty: 1

$175.07 pkg | $175.07 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Accessory Group
W
Movement
CCW, CW
Action
A
NEMA Rating
13, 3, 4, 4X, 6P
Actuator Location
Side
Operating Force
56.66 in.- oz.
Actuator Style
Rotary Head, No Lever
Package Quantity
1
Amperage
10 A
Replacement Body
11X458
Brand
DAYTON
Replacement Head
11X439
Contact Form
SPDT
Replacement Receptacle
11X461
Depth
2.52 in.
Series
Dayton
Description/Special Features
1/2 in. NPT
Shipping Weight
.57 lb.
Electrical Connection
Screw Terminals
Style
Rotary Head, Compact Body, Low Travel
Hazardous Location
No
Travel
Maximum Pre-Travel 0.079 in., Over Travel 0.157 in.
Height
3.14 in.
Type
Heavy Duty
IP Rating
67
Voltage
600 VAC/DC
Item
Heavy Duty Limit Switch
Voltage Rating
600 VAC/DC
Limit Switch Style
Heavy Duty Limit Switch
Width
1.65 in.
Mfr. Part Number
11X445
General
AC Contact Rating - Limit Switch
10A @ 600V
DC Contact Rating - Limit Switch
10A @ 600V
Actuator Location - Limit Switch
Side
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
No Lever, Rotary
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Rotary
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.74 in
Mounting Hole Spacing - Limit Switch
1.46 in x 1.16 in
Body Height - Limit Switch
2.46 in
Operating Temp. Range
-20° to 185°F
Body Style - Limit Switch
Miniature
Standards
CE, CSA, UL
Body Width - Limit Switch
1.65 in
Stem Thread - Limit Switch
No Stem
Contact Form- Switches
SPDT

Product Description

This heavy duty limit switch features actuator assemblies that can rotate in 90° increments. It also features a metal position switch and interchangeable heads.
