AIRMASTER FAN

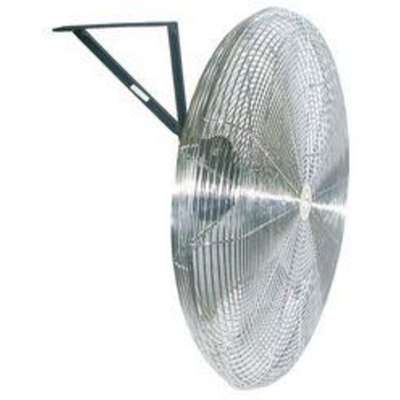

Airmaster Fan 30", Standard-Duty Industrial Fan, Oscillating, Stationary, Wall, 115 VAC

Hover over image to magnify
Air Circulator Industrial Wall
Air Circulator Industrial Wall

#930454-6 | Pkg Qty: 1

$835.69 pkg | $835.69 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
3,415/5,300/7,185 cfm
Mounting Location
Wall
Bearing Type
Ball
Mounting Location
Wall
Blade Diameter
30 in.
NEMA Plug Configuration
5-15P
Blade Material
Galvanized Steel
Number of Blades
3
Brand
AIRMASTER FAN
Number of Conductors
3
Drive Type
Direct
Oscillating
Yes
Duty
Standard Duty
Package Quantity
1
Guard Material
Steel
Phase
1
Hz
60 Hz
Shaft Diameter
5/8 in.
Item
Industrial Fan
Shipping Weight
61 lb.
Mfr. Part Number
71566
Sound Level
76 dBA
Mobile/Stationary
Stationary
Standards
cULus
Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Yes
Motor Insulation
Class B
Voltage
115V AC
Motor Type
Permanent Split Capacitor
Watts
280
General
Air Velocity @ 10 Ft.
950 fpm
Includes
Bracket
Air Velocity @ 20 Ft.
690 fpm
Max. Ambient Temp.
104 Degrees F
Air Velocity @ 40 Ft.
390 fpm
Oscillation
Oscillating
Air Velocity @ 60 Ft.
310 fpm
Shaft Dia.
5/8 in
Air Velocity @ 80 Ft.
160 fpm
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Nickel Chrome
Fan Mounting Location
Wall

Product Description

Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
