CANTEX

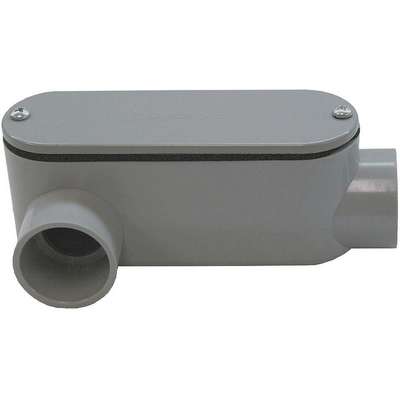

Cantex Conduit Outlet Body: LR Body, 1/2" Hub Size, 4.3 cu" Body Capacity, PVC, Screws/Gasket/Lid

Hover over image to magnify
Conduit Outlet Body,PVC,Lr
Conduit Outlet Body,PVC,Lr

#930444-7 | Pkg Qty: 1

$8.10 pkg | $8.10 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Back Type
Flat
Hazardous Location Rating
Not Rated
Body Capacity
4.3 cu in.
Hub Size
1/2 in.
Body Style
LR
Hub Style
Not Threaded
Body Type
Conduit Outlet Body
Item
Conduit Outlet Body
Brand
CANTEX
Material
PVC
Capacity
4.3 cu. in.
Material of Construction
PVC
Color Family
Gray
Mfr. Part Number
5133650
Conduit Outlet Body Capacity
4.3 cu in.
Number of Hubs
2
Conduit Outlet Body Hub Size
1/2 in.
Overall Length
4-1/4 in.
Conduit Outlet Body Hub Style
Not Threaded
Pack Quantity
1
Conduit Outlet Body Material
PVC
Shipping Weight
.21 lb.
Conduit Outlet Body Style
LR
Threaded / Not Threaded
Not Threaded
Conduit Outlet Body Type
Conduit Outlet Body
Trade Size
1/2 in.
Form
Form 7
Type
Non-Metallic
Hazardous Location
No
General
Compatible Conduit Trade Size
1/2 in
Includes
Gasket, Lid, Screws
Connection Orientation
90°
Special Features
Non-Conductive, Non-Corrosive, Non-Rusting
For Use With
Schedule 40 Conduit, Schedule 80 Conduit
Standards
CSA, UL
Gasket Included
Yes

Product Description

CANTEX Schedule 40 Conduit is engineered with PVC to resist rust and corrosion in underground applications. The belled end design helps promote easy installation and eliminates the need for special coupling. It also helps provide a stronger joint with fewer chances of leakage and less pull-apart during installation. In addition to underground installation, Schedule 40 can be used in walls, floors, and ceilings under NEC Article 352.

Expertly Selected Product Pairings

Conduit Cover Alum 1/2"
$3.23 pkg | $3.23 ea
Item: 910857-8 | Pkg Qty: 1
Conduit Gskt Neoprene 1/2"
$4.68 pkg | $4.68 ea
Item: 910857-9 | Pkg Qty: 1

Compliance & Restrictions

SDS Available
SDS Available View

Documents

Cantex PVC Type LR Conduit Body Dimensional Drawing
Cantex Rigid PVC Conduit Body Tech Sheet
