POWER FIRST

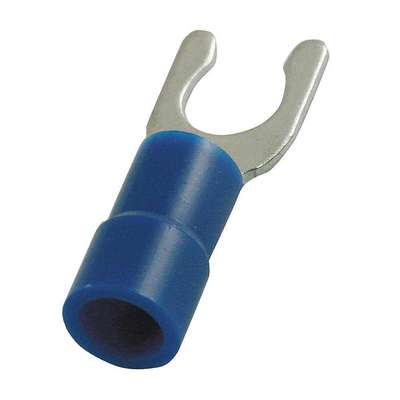

Power First Fork Terminal, Locking Terminal Type, Crimp Connection Type, Vinyl Insulation Type

Hover over image to magnify
Fork Terminal,Lockng,#10 Stud,
Fork Terminal,Lockng,#10 Stud,

#930424 | Pkg Qty: 100

$37.20 pkg | $0.37 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
POWER FIRST
Mfr. Part Number
4FRD6
Color Code
Blue
Overall Length
0.886 in.
Color Family
Blue
Pack Quantity
100
Connection Material
Copper
Seam
Butted
Connection Type
Crimp
Shipping Weight
.2 lb.
Insulation Color
Blue
Stud Size
#10
Insulation Type
Vinyl
Tool Code
1YNA5
Item
Fork Terminal
Wire Range
16 to 14 AWG
Material of Construction
Copper
General
Barrel Style
Easy Entry
Terminal Shape
Locking Fork
Compatible with Product Type
Insulated Stranded Copper Cable
Termination Style
Crimp
Contact Finish
Tin
Tongue Length
0.00 - 0.50 inches
For Wire Size
14 AWG, 16 AWG
Tongue Thickness
0.031 in
Insulation Coverage
Partial Coverage
Tongue Width
0.26 - 0.50 inches
Max. Temp.
221°F
Tongue Width - Wire Connector
0.32 in
RoHS Compliant
Yes
UL 94 Flammability Rating
V-0
Seam Style
Butted
Wire Size Range
16 AWG – 14 AWG
Strip Length
1/4 in

Product Description

These fork terminals feature vinyl insulation and copper connections.
