MILLER ELECTRIC

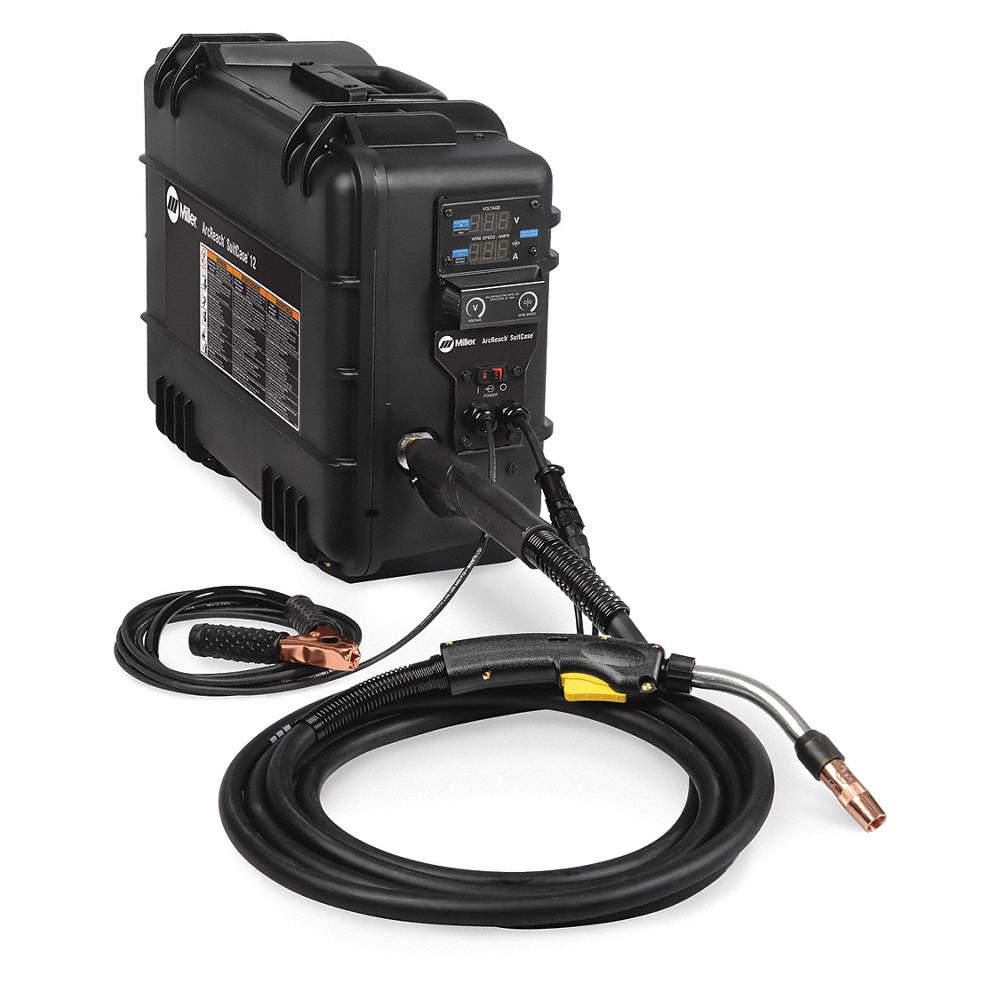

Miller Electric Wire Feeder: ArcReach SuitCase 12, with Bernard BTB Gun
Hover over image to magnify
#930326-6 | Pkg Qty: 1
$5,680.17 pkg | $5,680.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MILLER ELECTRIC
Overall Height
15-1/2 in.
Configuration
2-Roll
Overall Width
9 in.
Duty Cycle
60
Package Quantity
1
Input Voltage
14 VDC, 48 VDC
Phase
Single-Phase
Item
ArcReach Wire Feeder
Rated Output
425 A @ 60%
Mfr. Part Number
951729001
Series
ArcReach SuitCase 12
Overall Depth
21 in.
Shipping Weight
53 lb.
General
Application
Construction, Heavy manufacturing, Shipbuilding
Minimum Wire Feed Speed
1.3 m/min
Compatible with Model
903471, 907161011, 907366011, 907366014, 907479001, 907617, 907617001, 907703, 907703001, 907732, 907732001, 907733, 907733001, 907736, 907736001, 907737, 907737001, 907750, 907751, 907752, 907774, 907774001, 907775, 907775001, 907778, 907778001, 907797, 907797001, 907797002, 907798, 907798002, 907798004, 907799, 907799001, 907799002, 951343, 951637, 951638, 951786
Output Range (Amps)
425
Compatible with Series
Big Blue 400 PipePro, Big Blue 400 Pro, Big Blue 500 Pro, Big Blue 600 Air Pak, Big Blue 600 Pro, Big Blue 800 Duo Air Pak, Big Blue 800 Duo Pro, Dimension 650, Trailblazer 325, Trailblazer 325 Diesel, XMT 304 CC/CV, XMT 350 CC/CV, XMT 350 MPa, XMT 450 MPa
Overall Depth (In.)
21 in
Features
Jobsite Productivity and Efficiency, Cable Length Compensation, Extreme Reliability, Heavy Duty Drive Motor with Tachometer Control, Ultra-Low Drag inlet Guide Pins, Scaled Wire Pressure Knob, SunVision Technology, Impact Resistant and Flame Retardant Case
Overall Height (In.)
15 1/2 in
For Wire Type
Flux-Cored, Solid
Overall Width (In.)
9 in
Includes
0.045 - 1/16 Reversible Dual VK Drive Rolls, Bernard™ BTB Gun 300 AMP, 15FT, CENTERFIRE Contact Tips, 0.045 (QTY 3), 0.052 (QTY 2)
Rated Output at Duty Cycle
425 A @ 60%
Maximum Spool Diameter
12 in
Welding Mode
CC/CV
Maximum Spool Weight
45 lb
Wire Feeder Configuration
2-Roll
Maximum Wire Feed Speed
780 in/min
Wire Size (In.)
0.023-5/64
Minimum Wire Diameter
0.023 in (Flux-Cored)
Product Description
Wire Feeder, Input Voltage 48V DC, Type Portable Feeder, Series ArcReach(r), Wire Size0.023-5/64, Rated Output 425A @ 60 Percent, Phase 1, Overall Height15 1/2 in, Overall Width9 in, Overall Depth21 in, Output Range (Amps) 425, Duty Cycle 60 Percent, Application Construction, Heavy manufacturing, Shipbuilding
Documents
Item Barcode
Wire Feeder,48VDC Input
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 494D97 | Wire Feeder, 48VDC Input |
 | UNSPSC CODES | 20122367 | |
 | VMRS (ATA) CODES | 053-006-009 | Wire Feeder, 48VDC Input |
