Home All Products Welding Mig Welding and Accessories Wire Feed Welders SKU: 930117-5

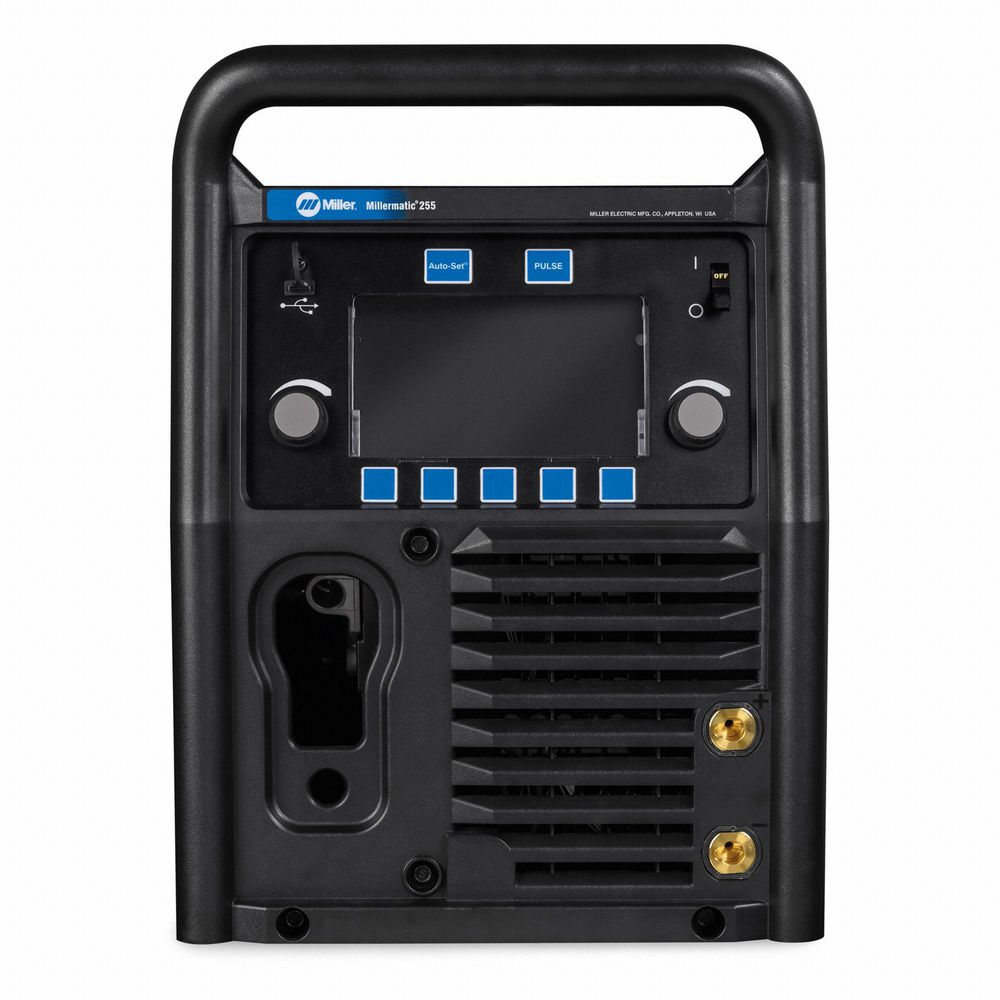

Miller Electric MIG Welder, Millermatic Series, Input Voltage: 208/240VAC, Flux Core, MIG, Pulsed MIG

Name: Miller Electric MIG Welder, Millermatic Series, Input Voltage: 208/240VAC, Flux Core, MIG, Pulsed MIG
Brand: MILLER ELECTRIC
SKU: 9301175
Price: 5021.94 USD
Availability: InStock

Hover over image to magnify

#930117-5 | Pkg Qty: 1

$5,021.94 pkg | $5,021.94 ea

This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

MILLER ELECTRIC

Overall Width

13-3/4 in.

Duty Cycle

0.6

Package Quantity

50/60

Phase

Input Amps

31/27

Portability

Handheld Portable

Input Voltage

208 VAC, 220/230/240 VAC

Rated Output

230 A @ 25.5VDC

Item

MIG Welder

Series

Millermatic 255

Mfr. Part Number

907734

Shipping Weight

104 lb.

Output Range

20 to 350A DC

Welded Material

Mild Steel, Aluminum, Stainless Steel

Overall Depth

26-1/4 in.

Welding Processes

Flux-Cored Welding (FCAW), MIG Welding (GMAW)

Overall Height

19-15/64 in.

Wire Size

0.023 in. to 0.045 in.

General

Aluminum - Material Thickness

18 ga to 1/2 in

Maximum Amperage Range (MIG)

Greater than 300 A

Application

General Fabricators, Light Manufacturing

Maximum Wire Feed Speed

800 in/min

Enhanced Process

Pulsed MIG (GMAW-P)

Mild Steel - Material Thickness

24 ga to 1/2 in

Features

Auto-Line Technology, Auto-Set Elite, 7 in. Color LCD, Program Mode, Optional EZ-Latch Running Gear, Portability, Pulsed MIG Welding

Minimum Wire Diameter

0.023 in (Solid Steel), 0.023 in (Stainless), 0.03 in (Flux-Cored), 0.035 in (Aluminum)

For Wire Type

Flux-Cored, Solid

Minimum Wire Feed Speed

50 in/min

Includes

0.035/0.045 in. (0.9/1.2 mm) Reversible Drive Rolls, 10 ft. (3m) Work Cable and Clamp and 50mm Dinse-style Connector, 15 ft. (4.5m) 250-Amp MDX-250 MIG Gun, Extra Contact Tips, Flow Gauge Regulator and Gas Hose for Argon or AR/CO2 Mix, Running Gear

Power Cord Included

Yes

Input Voltage (Nominal)

208V, 240V

Rated Output at Duty Cycle (MIG)

230 A @ 60%

Kit Includes

Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, MIG Gun, Running Gear, Work Cable with Clamp

Stainless Steel - Material Thickness

22 ga to 1/2 in

MIG Welding Maximum Output Current

350 A

Standards

CSA Certified

MIG Welding Minimum Output Current

20 A

Welder Kit Type

MIG Package

MIG Welding Output @ Duty Cycle

230 A @ 25.5 V, 60%

Welding Mode

CC/CV

Product Description

Mig Welder, Millermatic(r), Welding Processes Flux Core, MIG, Pulsed MIG, Input Voltage 208/240V AC, Welded Material Mild Steel, Aluminum, Stainless Steel, Mild Steel - Material Thickness 24 ga to 1/2 in, Portability Handheld Portable, 1 Phase, Aluminum - Material Thickness 18 ga to 1/2 in, Stainless Steel - Material Thickness 22 ga to 1/2 in, Rated Output 230A @ 25.5V DC, Duty Cycle 60 Percent, 50/60 Hz, 31/27 Input Amps, Output Range 20 to 350A DC, Wire Size 0.023 in to 0.045 in

Expertly Selected Product Pairings

$121.43 pkg | $121.43 ea

Item: 914888 | Pkg Qty: 1

Drive Roll Kit,V-Knurl

Select

$68.75 pkg | $68.75 ea

Item: 920549-7 | Pkg Qty: 1

Drive Roll Kit,0.035 In.

Select

$686.56 pkg | $686.56 ea

Item: 929624-8 | Pkg Qty: 1

Mig Welding Gun,250A,15 Ft. L

Select

$263.00 pkg | $26.30 ea

Item: 934977 | Pkg Qty: 10

Nozzle,Copper,Threaded

Select

$23.90 pkg | $2.39 ea

Item: 936923-4 | Pkg Qty: 10

Contact Tip,Copper,Threaded

Select

$870.86 pkg | $870.86 ea

Item: 941885-5 | Pkg Qty: 1

Welding Running Gear And

Select

Compliance & Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Documents

Miller Electric Millermatic 255 Spec Sheet

Item Barcode

Mig Welder,208/240VAC Input,

Cross References
Legal

Name	Item	Description
Grainger Dropship	494D87	MIG Welder, 208/240VAC
UNSPSC CODES	23271420
VMRS (ATA) CODES	053-006-009	MIG Welder, 208/240VAC
