DIXON

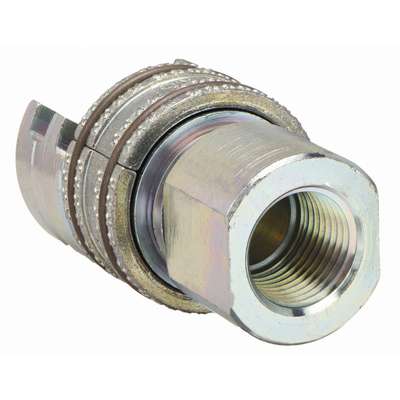

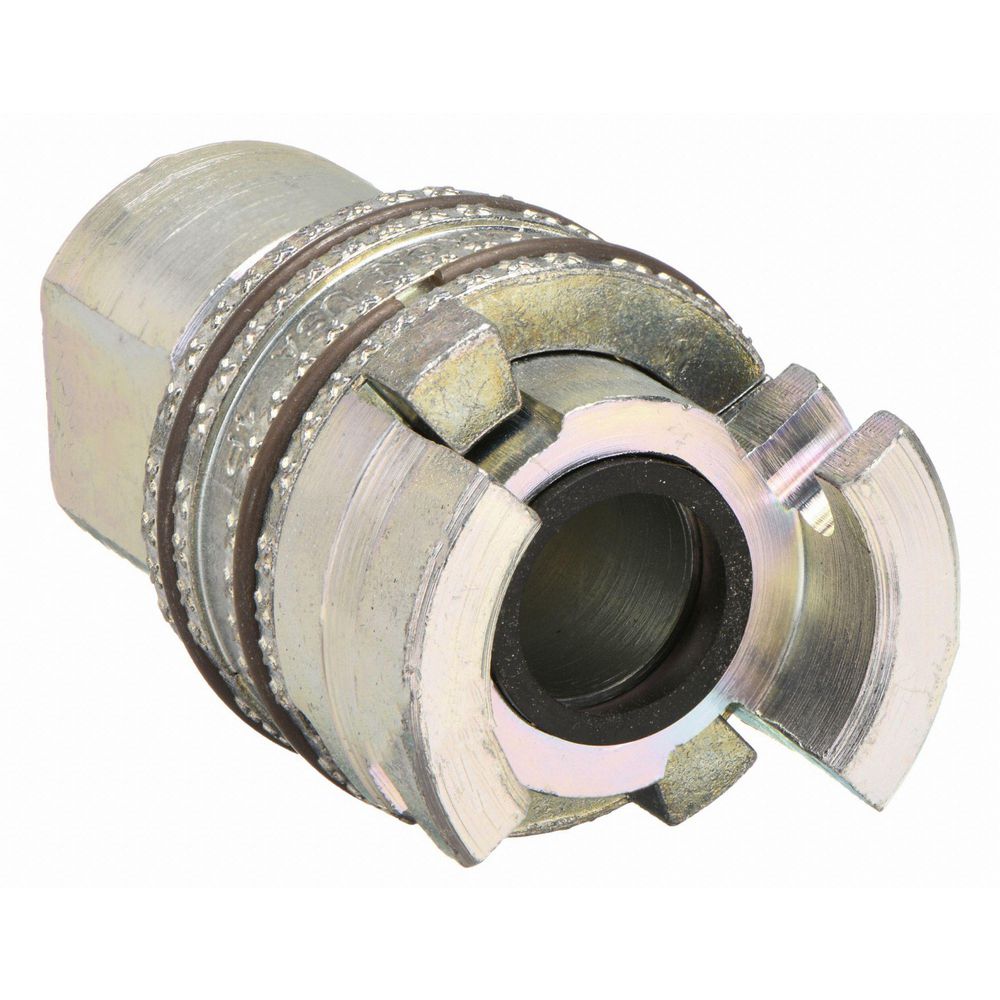

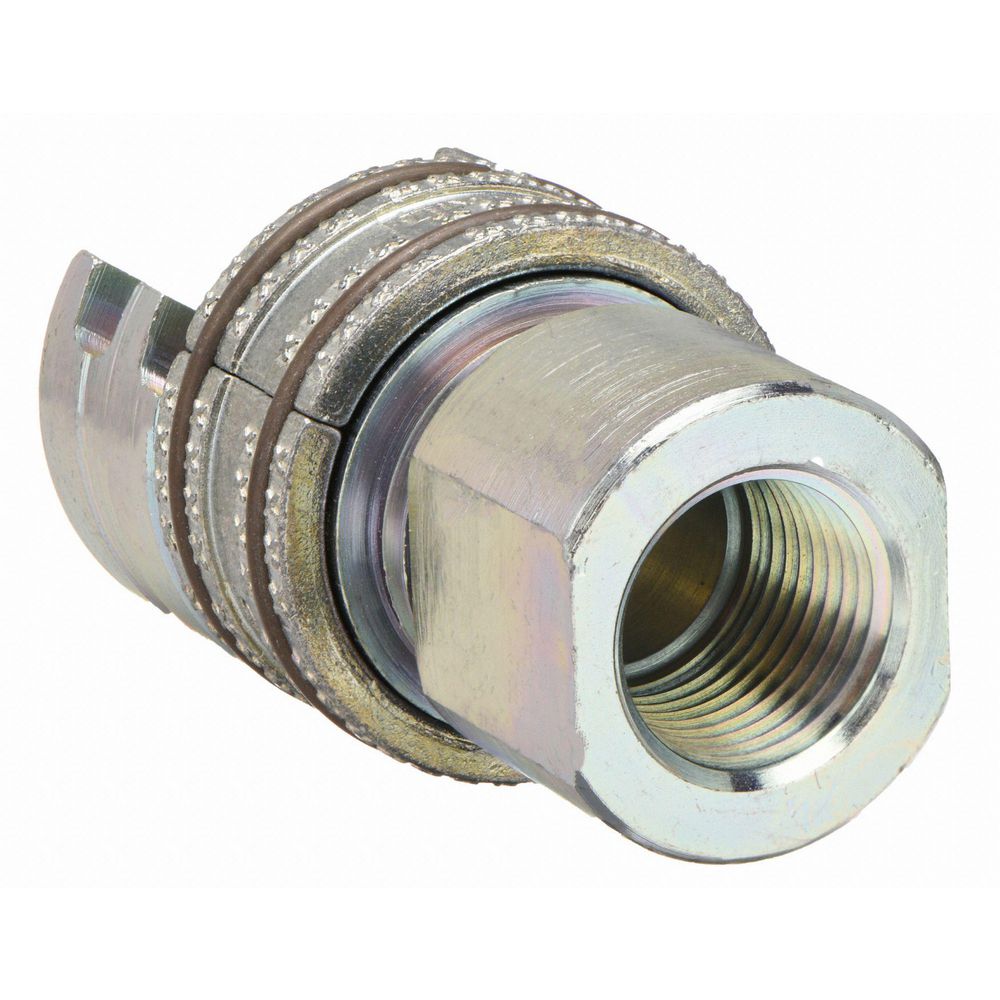

Quick Connect Hose Coupling: 1/2 in Body Size, 1/2 in Hose Fitting Size, Push-to-Connect, Socket

Hover over image to magnify
Female To Thor Coupler,(f)npt,
PI_Asset_1755430
PI_Asset_1767329
Female To Thor Coupler,(f)npt,
PI_Asset_1755430
PI_Asset_1767329
Double tap image to magnify
Female To Thor Coupler,(f)npt,
5CGP9_2
5CGP9_1
Female To Thor Coupler,(f)npt,
5CGP9_2
5CGP9_1

#930114-1Pkg Qty: 1

$38.71 pkg | $38.71 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 24.
|

Technical Specifications

Key Specifications
Brand
DIXON
Package Quantity
1
Color Family
Silver
Quick Connect Coupling Interchange
Thor
Connection Type
NPT
Seal Material
Nitrile
Fitting Type
FNPT
Shipping Weight
.63 lb.
Item
Quick Connect Hose Coupling
Thread Size
1/2"-14
Mfr. Part Number
4PF4
General
Body Size - Quick Connect Air Couplings
1/2 in
Material - Quick Connect Air Couplings
Steel
Coupling Component
Socket
Max. Air Flow (SCFM)
250
Coupling Locking Type
Push-to-Connect
Max. Outside Dia.
1 35/64 in
Features
Push to Connect
Max. Pressure - Quick Connect Air Couplings
300 psi
Finish/Coating
Zinc Plated
Max. Working Pressure @ 70 F
300 psi
For Hose I.D.
1/2 in
Pipe Size - Quick Connect Air Couplings
1/2"
Hose Connection - Quick Connect Air Couplings
(F)NPT
Product Grouping - Quick Connect Air Couplings
Quick Coupler Body
Hose Fitting Gender
Female
Seals - Quick Connect Air Couplings
Buna-N

Product Description

Thor steel quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) to connect tools to air, water, or fluid lines. Steel couplings are hard and resilient with more damage resistance than softer metals and a wide working temperature range.

Thor quick-connect air couplings are used with air or water hoses requiring heavier duty, more durable couplings. Also known as double-locks or nationals, these couplings use a quarter-turn and click connection to secure. A spring-retracting sleeve prevents unintentional disconnection. They are compatible with any of the double-lock sockets regardless of barbed hose ID or pipe size. These multipurpose couplings connect air tools and hoses to compressed air supplies for drop-down air lines, construction vehicles, and automotive service and repair.
