SQUARE D

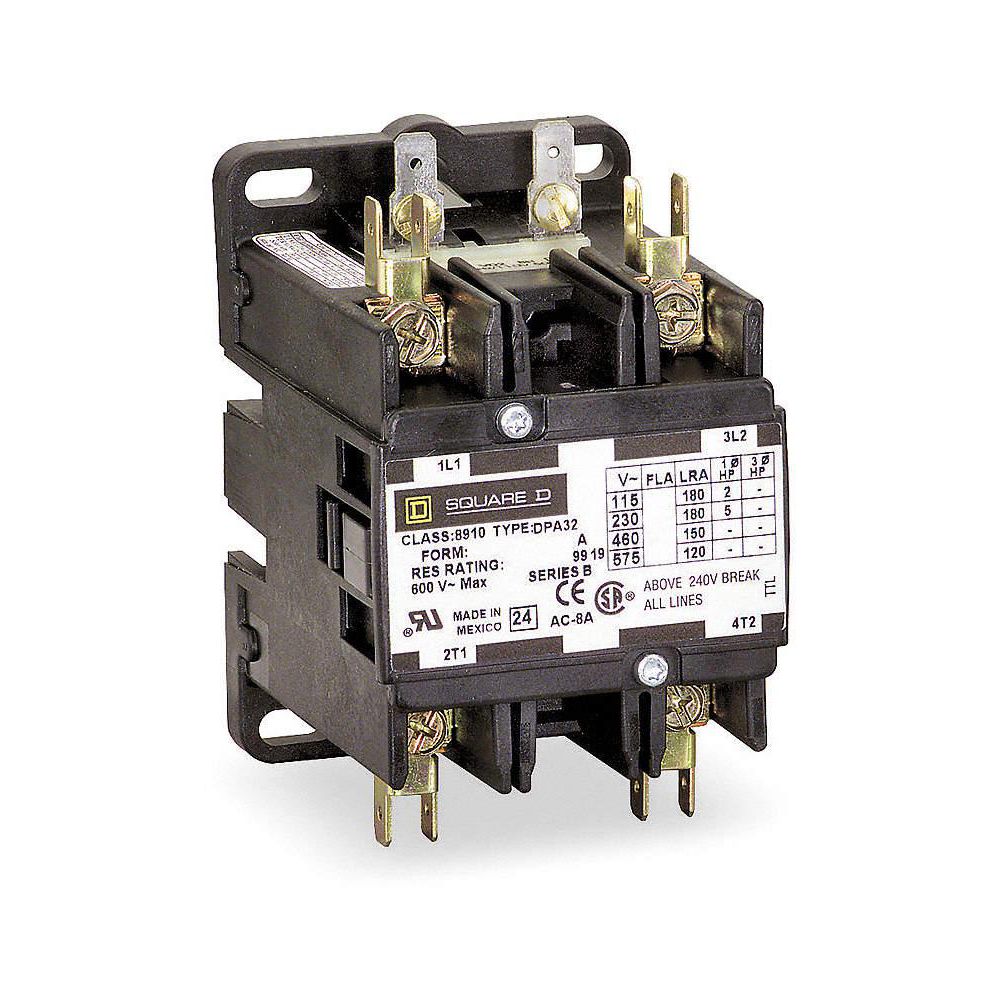

Square D 208/240V AC Definite Purpose Contactor; No. of Poles 2, 50 Full Load Amps-Inductive

Hover over image to magnify
Definit Prpose Cntactr,208/
Definit Prpose Cntactr,208/
Double tap image to magnify
Definit Prpose Cntactr,208/
Definit Prpose Cntactr,208/

#930111-2Pkg Qty: 1

$229.41 pkg | $229.41 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 18.
|

Technical Specifications

Key Specifications
Action
Nonreversing
Hz
50/60
Brand
SQUARE D
Item
Definite Purpose Contactor
Coil Volts
208/240 VAC
Mfr. Part Number
8910DPA52V09
Depth
3.67 in.
Number of Poles
2
Enclosure NEMA Rating
No Enclosure
Pack Quantity
1
Enclosure Type
Open
Reversing
No
HP @ 1 Phase - 120 V
3 hp
Series
Standard
HP @ 1 Phase - 240 V
10 hp
Shipping Weight
1.4 lb.
Height
4.06 in.
Width
2.56 in.
General
Contactor Type
Definite Purpose
Includes
Quick Connect Terminal
Full Load Amps-Resistive
65 A
Standards
CE, CSA, UL
HP @ 1 Phase - 230V
10

Product Description

This Square D™ Magnetic Definite Purpose Contactor is an open style, 2-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. For convenience, the coils can be changed out swiftly without the need for tools. The included box lugs and industry-standard mounting help provide a more reliable connection and easier wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 208/240VAC coil volts. 50A (inductive) and 65A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.

Expertly Selected Product Pairings

Auxiliary Contact,1 No And 1 Nc
$41.72 pkg | $41.72 ea
Item: 912779-9 | Pkg Qty: 1
Magnetic Coil,208/240v
$59.54 pkg | $59.54 ea
Item: 918545-8 | Pkg Qty: 1
Enclosure,Nema 1
$115.77 pkg | $115.77 ea
Item: 921349-9 | Pkg Qty: 1
Auxiliary Contact,1 No
$21.38 pkg | $21.38 ea
Item: 926392-7 | Pkg Qty: 1

Documents

Square D Definite Purpose Contactor Catalog
Square D 8910DPA Instruction Bulletin
Technical Sell Sheet
Square D 8910DPA V2467914 Drawing
