DAYTON

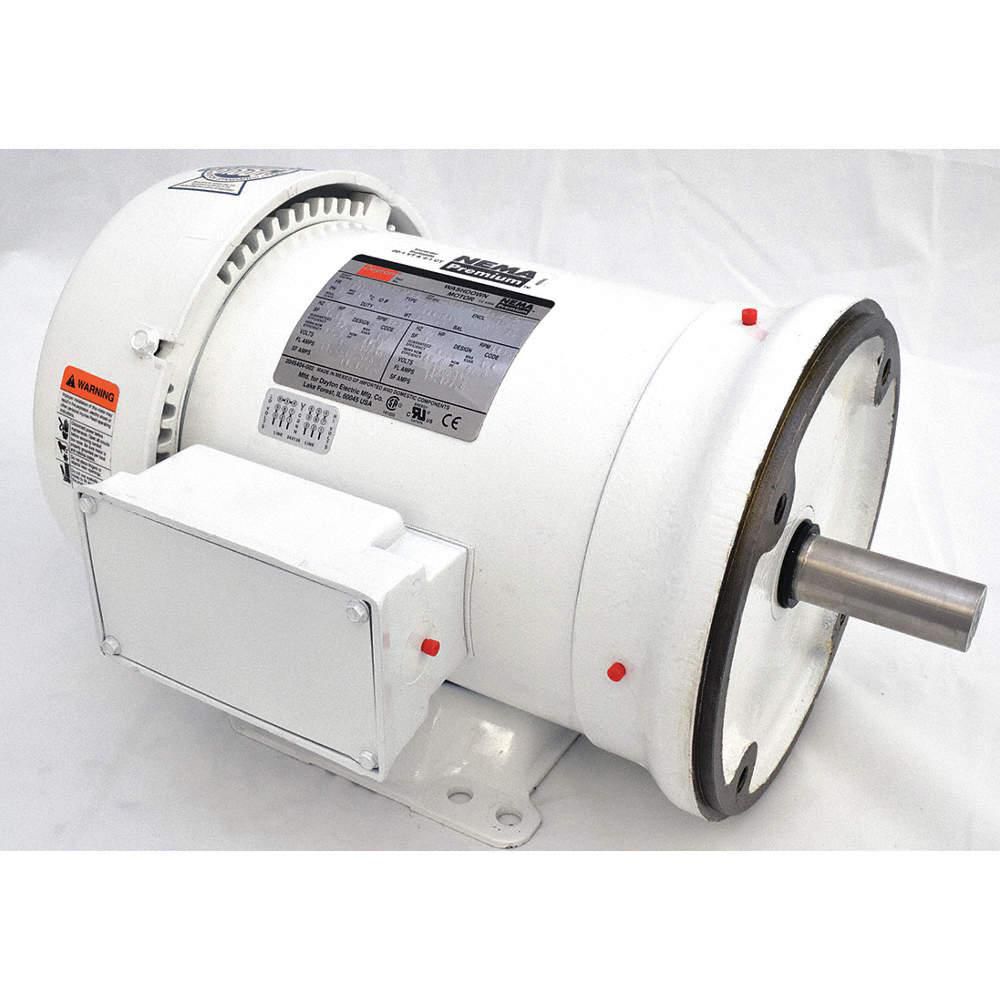

Dayton Washdown Motor, 5 HP, 3-Phase, Nameplate RPM 1,755, Voltage 230/460V AC, 184TC Frame
Hover over image to magnify
Double tap image to magnify
#930096-9Pkg Qty: 1
$1,522.34 pkg | $1,522.34 ea
This item requires special shipping, additional charges may apply.
In Stock
Shipping to 43085
Expected to arrive Tue. Apr 15.
Shipping Restrictions May Apply
This product cannot be shipped to some parts of the United States and Canada.
Painted epoxy-coated washdown AC motors have a white epoxy finish that is USDA approved and is resistant to caustic cleaning solutions.
Pkg Qty 1 | Order Qty 1
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
3-Phase
Brand
DAYTON
Mounting
Face/Base
Duty
Continuous
NEMA/IEC Frame
184TC
Duty Cycle
Continuous
Nameplate RPM
1755
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
15 in.
Footnotes
11, 8
Package Quantity
1
Frame
184TC
Phase
Three
Full Load Amps
12.5/6.2
Rotation
CW/CCW
Hz
60/50
Service Factor
1.15
Insulation Class
F
Shaft Length
2-5/8 in.
Item
Washdown Motor
Shaft Material
303 Stainless Steel
Length Less Shaft
14-1/8 in.
Shipping Weight
89.5 lb.
Mfr. Part Number
5XAU1
Thermal Protection
None
Motor Design
3-Phase
Voltage
230/460 VAC
General
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Application
Washdown
Body Dia.
8.4 in
Motor Efficiency Group
NEMA Premium Efficient
CC Number
CC030A
Motor Frame Material
Epoxy Coated Rolled Steel
Complies With
NEMA MG1-1.26.6
Motor Mounting Position
Horizontal
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Motor Shaft Design
Keyed
Drain Plugs
(3) Shaft End, (4) Lead End, (2) In Conduit Box
NEMA Design
B
Endshield Material
Cast Aluminum
Nominal Efficiency
89.5 %
Endshields
Cast Aluminum
RPM Range
1,701-1,800
HP
5
Shaft Dia.
1 1/8 in
Inverter Rated
Yes
Standards
CSA Certified (LR225293), UL Recognized (E47479), USDA Approved
Max. Ambient Temp.
40 °C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Product Description
Painted epoxy-coated washdown AC motors have a white epoxy finish that is USDA approved and is resistant to caustic cleaning solutions.
Item Barcode
Washdown Motor,3 Ph,Tefc,5 Hp,
