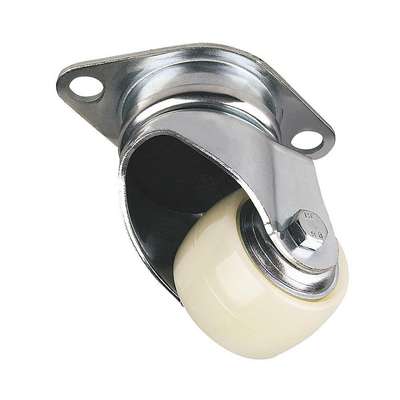

Light- Medium Duty Kingpin, Swivel, General Purpose Inverted-Mount Plate Caster; 450 lb. Load Rating, 2-5/16" Wheel Dia.

Hover over image to magnify
Invertd Ar Cargo Swivl Castr,
PI_Asset_1357002
Invertd Ar Cargo Swivl Castr,
PI_Asset_1357002

#930049-3 | Pkg Qty: 1

$34.52 pkg | $34.52 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
450 lb.
Caster Brake Included
No
Mfr. Part Number
LSL065NY1L
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
3/8 in.
Caster Core Material
Nylon
Mounting Height
3-3/4 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
Yes
Caster Plate Hole Pattern
F
Number of Mounting Holes
2
Caster Plate Size
2 in. x 2-3/4 in.
Number of Wheels
1
Caster Raceway
Double/Single Ball
Outside Bolt Hole Spacing
3-1/2 in. x 3-1/2 in.
Caster Swivel Lock Type
No Lock Included
Package Quantity
1
Caster Wheel Bearings
Precision Ball
Plate Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Replacement Wheel
Mfr. No. 065 NY1L
Caster Wheel/Tread Material
Nylon
Shipping Weight
1.69 lb.
Core Color
White
Swivel Construction
Kingpin
Durometer
80 Shore D
Wheel Color
White
Frame Finish
Polished Zinc
Wheel Diameter
2-5/16 in.
Includes Thread Guards
Yes
Wheel Width
1-3/8 in.
Inside Bolt Hole Spacing
3-1/2 in.
Wheel/Tread Hardness Rating
Hard
Item
General Purpose Inverted-Mount Plate Caster
General
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
2 in x 2 3/4 in (F)
Caster Max. Temp.
175°F
Standards
ICWM
Caster Min. Temp.
0°F
Swivel Lock Type
No Lock Included
Caster Plate Thickness
1/8"
Swivel Raceway Type
Double/Single Ball
Caster Product Group
Swivel Caster
Tread Shape
Standard
Caster Temp. Range Available
Yes
Wheel Bearing Type
Precision Ball
Features
Diamond Shaped
Wheel Core Material
Nylon
Load Rating Range
300 to 999 lb
Wheel Dia.
2 5/16 in
Mounting Bolt Dia.
3/8 in
Wheel/Tread Hardness
80 Shore D
Mounting Plate Bolt Hole Pattern
F
Wheel/Tread Material
Nylon
Mounting Plate Size
2 in x 2 3/4 in

Product Description

General purpose inverted-mount plate casters have nonmarking nylon wheels that can withstand impacts and harsh loading conditions. The wheels have precision ball bearings that allow them to roll smoothly.

Inverted-mount plate casters are installed with their wheels pointing up to create a low-friction surface for moving bulky and heavy loads. Also known as cargo rollers, groups of these casters are mounted in floor recesses in dock areas, airport cargo-loading areas, or aircraft to reduce the effort it takes to move and maneuver large cargo containers on the floor as they're being loaded and unloaded. They can also be mounted on portable dollies and fixtures that are used for handling large cargo containers or on conveyor systems to provide multidirectional movement in transition, infeed, or outfeed sections.
