HUBBELL WIRING DEVICE-KELLEMS

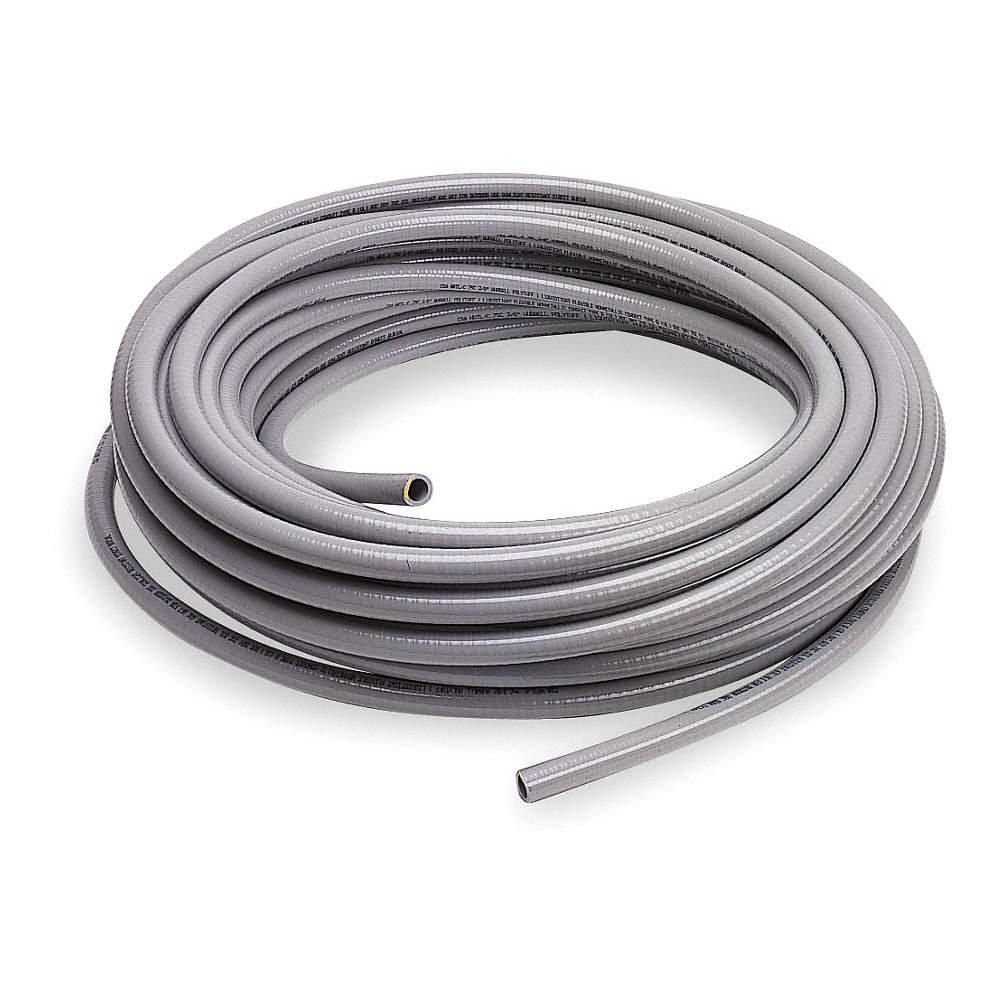

Hubbell Wiring Device-Kellems G-Series Flexible Nonmetallic Liquid Tight Conduit, 1" x 100 ft., 8-1/2" Bend, Gray

Hover over image to magnify
Liquid-Tight Conduit,1 In x
PI_Asset_1983031
PI_Asset_1987512
Liquid-Tight Conduit,1 In x
PI_Asset_1983031
PI_Asset_1987512

#929933-8 | Pkg Qty: 1

$223.34 pkg | $223.34 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
8-1/2 in.
Jacket Material
Fused PVC
Brand
HUBBELL WIRING DEVICE-KELLEMS
Length
100 ft.
Color Family
Gray
Liquid Tight Conduit Application
General Purpose, Nonmetallic
Conduit Size
1 in.
Material
PVC
Conduit Trade Size
1 in.
Mfr. Part Number
G1100
Core Material
PVC
Nominal Length
100 ft.
Flammability Rating
UL 1660
Outside Diameter
1.3 in.
Flexible Conduit Bend Radius
8-1/2 in.
Package Quantity
1
Flexible Conduit Color
Gray
Series
G
Flexible Conduit Core Material
PVC
Shipping Weight
29.4 lb.
Flexible Conduit Nominal Length
100 ft.
Standards
UL E94909 M/CSA LL66786
Indoor/Outdoor Usage
Indoor/Outdoor
Trade Size
1 in.
Inside Diameter
1.05 in.
Type
Liquid-Tight/Polytuff 1
Item
Flexible Nonmetallic Liquid Tight Conduit
Voltage
600 V
General
Approval Rating
NEC, UL
Resistance Properties
Direct Burial
Flexibility
Flexible, Rigid
Special Features
Polytuff 1
Flexible Conduit Usable Temp. Range
0° to 176°F
Special Properties
Direct Burial
Jacketed
Yes
Temp. Range
0° to 176°F
Max. Operating Temp.
225 °F
Usable Temperature Range
0 °F to 176 °F
Min. Operating Temp.
-30 °F
Wet Location
Yes

Product Description

Run wiring safely in indoor and outdoor environments with this flexible, nonmetallic, liquid-tight conduit. It features fused PVC material construction for a rugged and tough, but flexible, conduit with no metal core. The nonconductive, lightweight, nonmetallic materials help provide corrosion resistance. The conduit also cuts easily and cleanly while resisting crushing and crimping. Suitable for all standard-duty applications. Liquid-tight.
