INGERSOLL RAND

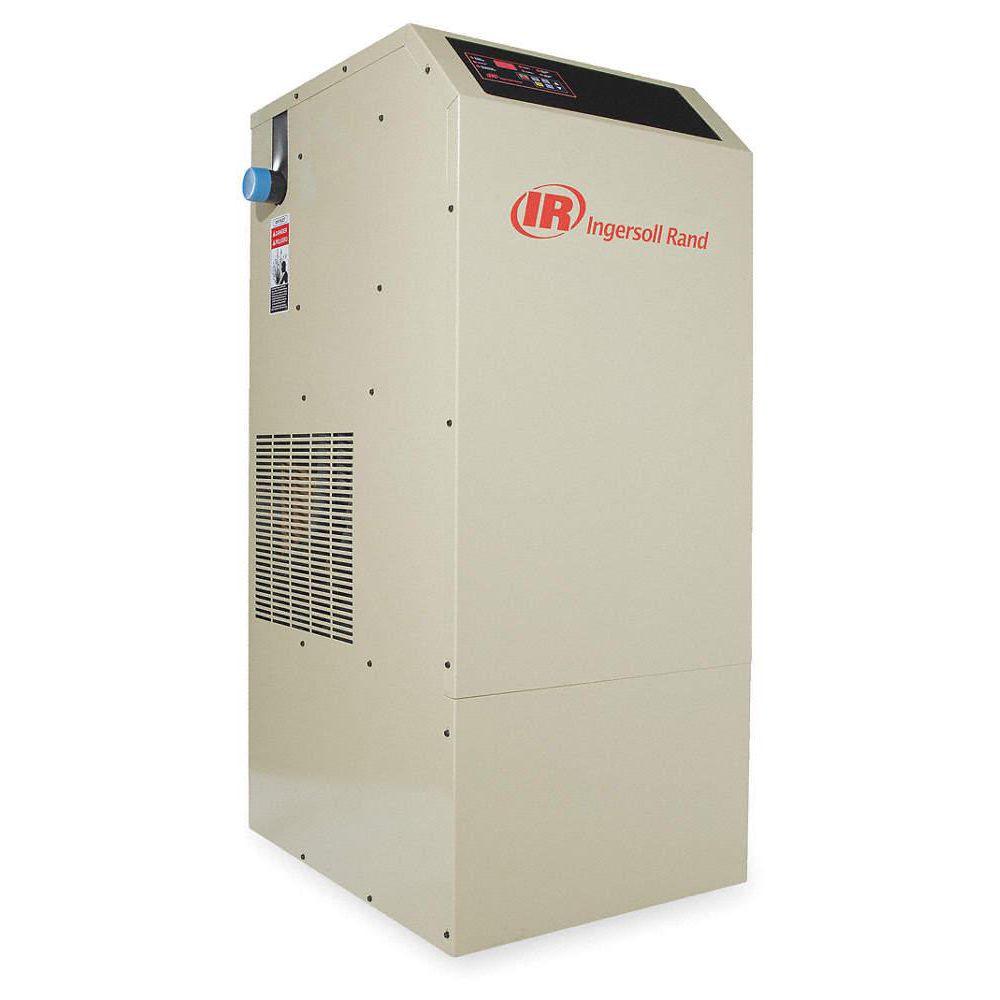

200 CFM Compressed Air Dryer, For 50HP Maximum Air Compressor, 230 psi
Hover over image to magnify
#929859 | Pkg Qty: 1
$17,129.16 pkg | $17,129.16 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
INGERSOLL RAND
Mfr. Part Number
NVC200
Finish
Powder Coated
Overall Height
58 in.
Full Load Amps
6 A
Package Quantity
1
Item
Compressed Air Dryer
Shipping Weight
620 lb.
General
Air Inlet Gender
Female
ISO Class - Air Treatment
4
Air Inlet Type
NPT
Includes
Centrifugal Separator
Air Outlet Size
1 1/2 in
Input Voltage - Air Treatment
460V AC
Air Outlet Type
NPT
Max. Flow - Air Treatment
200 cfm
Connection Size - Air Treatment
1 1/2 in NPT
Max. Incoming Pressure - Air Treatment
230 psi
Cycling Type
Cycling
Number of Air Inlets
1
Dew Point (Deg. F)
38
Number of Air Outlets
1
Features
Thermal Mass Cycling
Phase - Air Treatment
Three
Filtered Substance
Moisture
Pressure Drop
1.6 psig
For Maximum Compressor Output Power
50 hp
Refrigerant
R-404A
Full Load Current
6 A
Refrigeration Compressor HP
1 hp
Heat Exchanger
304L SS Corrugated
Refrigeration Compressor Horsepower
1 hp
Heat Exchanger Material
Stainless Steel
Product Description
Refrigerated Cycling Air Dryers
- ISO Class: 4 Max. pressure: 230 psi Refrigeration compressor turns off during periods of reduced loads to match actual compressed airflow, drawing only the energy required to provide continuous-pressure dew point performance. Unique centrifugal separator allows high moisture separation and removal. Unwanted water from the air is discarded through a timed condensate drain.
Item Barcode
Ref Comp Air Dryer,200 Cfm,230
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2HUD9 | Ref Comp Air Dryer,200 |
 | UNSPSC CODES | 40151610 | |
 | VMRS (ATA) CODES | 053-006-009 | Ref Comp Air Dryer,200 |
