SQUARE D

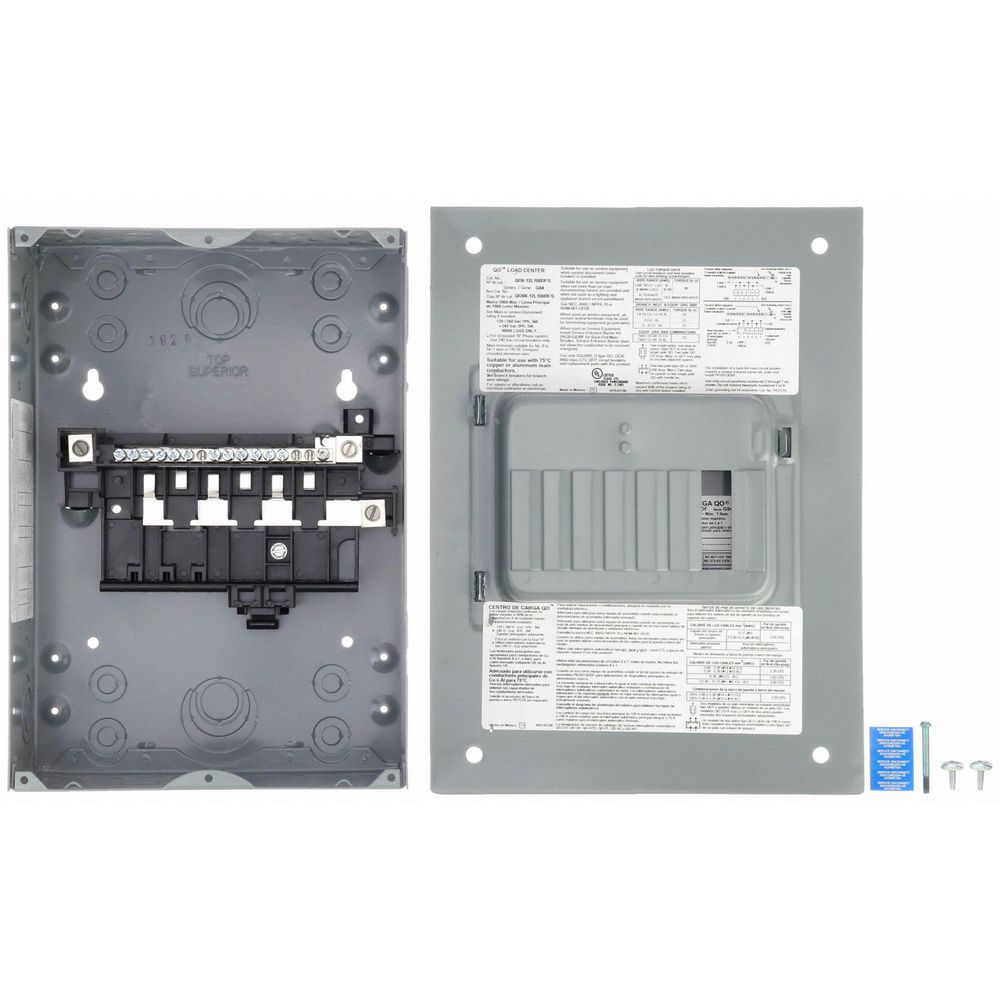

Square D Load Center, Number of Spaces 6, Amps 100 A, Circuit Breaker Type QO, Voltage 120/240V AC
Hover over image to magnify
#929731-3 | Pkg Qty: 1
$120.37 pkg | $120.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Aluminum Wire (AWG/kcmil)
8 to 1
Main Circuit Breaker or Main Lug
Main Lug
Amperage
100 A
Mains
Fixed
Amps
100 A
Material of Construction
Shielded Copper
Amps AC
100
Maximum Number of 1-Pole Circuits
12
Brand
SQUARE D
Maximum Number of Tandem Breakers
6
Bus
One Piece Copper Plated
Mfr. Part Number
QO612L100DF
Bus Material
Tin Plated Aluminum
NEMA Rating
1
Circuit Breaker Type
QO
Number of Spaces
6
Construction
Shielded Copper
Package Quantity
1
Copper (AWG/kcmil)
8 to 1
Phase
1
Cover Type
Low Profile with Automatic Flush Adjustment
RMS Symmetrical Amp Rating
10000
Depth
3-3/4 in.
Recommended Flush Cover
Included
Enclosure
NEMA 1
Recommended Ground Bar Kit
1D374
Enclosure Material
Steel
Recommended Surface Cover
Included
Enclosure NEMA Rating
1
Rotated For
Top or Bottom Feed
Federal Specification
W-P-115c as Type 1 Class 2
Series
QO
Flush Cover
Cover Incl. w/ Door
Shipping Weight
13 lb.
Ground Bar Kit
1D374
Short Circuit Current Rating
10kA
Height
12.56 in.
Voltage
120/240VAC
Item
Load Center
Width
8.91 in.
General
Cover Attachment Style
Screw On
Main Circuit Breaker
Main Lug Only
Cover Closure Method
Door Latch
Max. No. of 1-Pole Circuits
12
Enclosure Surface Finish
Enamel
Max. No. of Tandem Breakers
6
Feed Location
Top/Bottom
Max. Operating Temp.
104°F
For Use With
Square D QO Circuit Breakers
Min. Operating Temp.
23°F
Included Enclosure Cover
Flush Cover
Special Features
Green Premium Product, Mercury Free, Toxic Heavy Metal Free
Location
Indoor
Standards
RoHS Compliant
Product Description
These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.
