ROLAIR

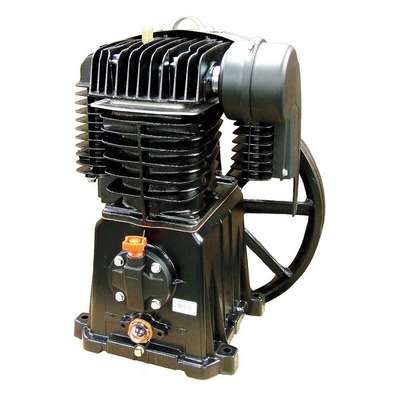

Air Compressor Pump: Splash Lubricated, 2 Stage, 7 1/2 hp, 17.3/23.0 cfm @ 175 psi
Hover over image to magnify
#929335-2 | Pkg Qty: 1
$1,095.28 pkg | $1,095.28 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ROLAIR
Oil Capacity
45 oz.
Construction
Cast Iron/Aluminum
Overall Height
18-19/64 in.
Finish
Black Powder
Package Quantity
1
Groove Quantity
1
Pump RPM
1000 1200
Item
Air Compressor Pump
Rotation
CCW
Lubrication Type
Splash Lubricated
Sheave Size @ 1725 RPM
8 in., 11-3/8 in.
Mfr. Part Number
PMP22BK119GR
Shipping Weight
68.25 lb.
Number of Cylinders
2
Stroke Length
3-3/32 in.
Number of Stages
2
Valve Type
Reed
General
Avg. Pump Life
10,000 hr
Lubrication Required
Yes
Bore Dia.
2 3/64 in, 4 1/8 in
Maximum Output Power
7.5 hp
Flywheel Dia.
15 in
Mounting Pattern
9 in W x 6-19/32 in D
Flywheel Included
Yes
Number of Grooves
1
Free Air CFM @ Max. Pressure
17.3, 23.0
Outlet Connection Type
NPT
Free Air Flow Rate @ Maximum Pressure
17.3/23.0 cfm @ 175 psi
Pump Speed
1,200 RPM
HP
5 hp, 7 1/2 hp
Sheave Size @ 3450 rpm
3 7/8 in
Product Description
This air compressor pump features stainless steel reed valves, splash lubrication, and a CCW rotation facing flywheel. Average pump life is 10,000 hours.
Expertly Selected Product Pairings
Item Barcode
Air Compressor Pump,2 Stage,2
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 31LA92 | Air Compressor |
 | UNSPSC CODES | 40151601 | |
 | VMRS (ATA) CODES | 053-006-009 | Air Compressor |
