DAYTON

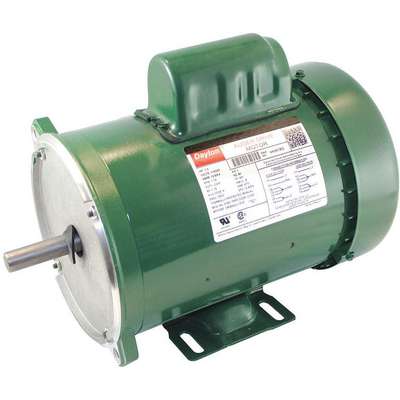

Dayton Auger Drive Motor, 1 HP, Capacitor-Start, Nameplate RPM 1,725, Voltage 115/230V AC, 56Y Frame
Hover over image to magnify
#929158 | Pkg Qty: 1
$466.37 pkg | $466.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Flange/Base
Duty
Continuous
NEMA/IEC Frame
56Y
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
12-15/16 in.
Finish
Green
Package Quantity
1
Frame
56Y
Phase
Single
Full Load Amps
12.8/6.4
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
B
Shaft Length
2-1/8 in.
Item
Auger Drive Motor
Shipping Weight
30 lb.
Length Less Shaft
10-13/16 in.
Thermal Protection
Manual
Mfr. Part Number
4K997
Type
Poultry Feed Auger Drive
Motor Design
Capacitor-Start
Voltage
115/230 VAC
General
Capacitor Required
Included
Motor Service Factor
1.15
HP
1
Motor Shaft Design
Keyed
Includes
Gasketed Conduit Box and Capacitor Cover, Shaft Extension beyond fan guard for manual cranking and Shaft Key
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Sub Application
Auger
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Manual
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
71.3 %
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Motor Mounting Position
Horizontal
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Type
Face/Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
Auger farm-duty AC motors are used to power grain augers commonly found in poultry raising operations. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
