BLUE DEF

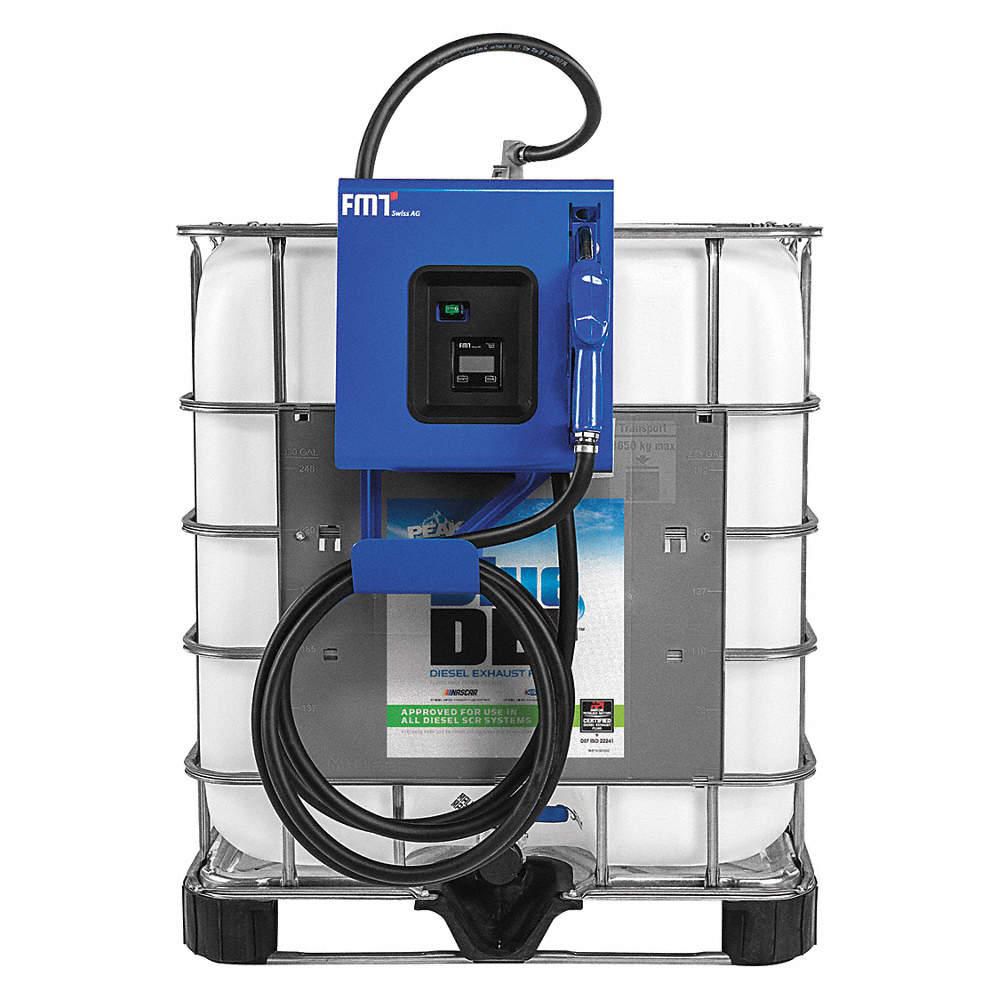

Electric Operated Tote Pump, Metered Dispensing with Automatic Shut-Off, 120V AC, 1/2 hp Motor HP

Hover over image to magnify
Tote Pump System,120VAC,1/2 Hp,
Tote Pump System,120VAC,1/2 Hp,

#928897-5 | Pkg Qty: 1

$1,367.13 pkg | $1,367.13 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
CSA
Mfr. Part Number
DEFTPP120
Brand
BLUE DEF
Mfr. Warranty Length
3 yr.
Clamp Style
Pinch
Motor Enclosure
PA6 / GF30
Cord Length
63 in.
Motor RPM
3,450 RPM
DEF Compatible
Yes
Motor Type
Diaphragm
Discharge Tube Length
20 ft.
Nozzle Material
Stainless Steel
Discharge Tube Outlet ID Size
3/4"
Outlet Size
1"
Discharge Tube Outlet Outside Diameter
3/4"
Package Quantity
1
Discharge Tubing Material
EPDM
Phase
1
Duty
Continuous Operation
Piston Material
Stainless Steel
Duty Cycle
Continuous
Power Source
Electric
Food Grade
No
Seal Material
EPDM
Full Load Amps
2.8
Self-Priming
Yes
GPM
8 to 10
Shipping Weight
35.2 lb.
Horsepower
1/2
Suction Tube Length
48 in.
Hose Length
20 ft.
Suction Tube Type
Constant
Hose Material
EPDM
Thermal Protection
Yes
Housing Material
Die-Cast Aluminum
Variable Speed
No
Inlet Size
1" NPT
Voltage
120 VAC
Item
Electric Operated Drum Pump
Wetted Materials
Polyethylene, Stainless Steel
Metered
Yes
General
Compatible Chemicals
DEF
Includes Suction Tube
Yes
Diesel Exhaust Fluid Compatible
Yes
Max. Flow Rate
10 gpm
Discharge Connection Type
BSP
Max. Fluid Temp.
311 Degrees F
Discharge Tube Outlet ID
3/4 in
Max. Head - Pumps
10 ft
Discharge Tube Outlet OD
3/4 in
Max. Outlet Pressure
23 psi
Features
INTEGRATED INTERNAL BYPASS
Max. Viscosity
5 cps
For Container Size
275 gal, 330 gal
Min. Fluid Temp.
12 Degrees F
For Container Type
Tote
Nominal Voltage
110V AC
For Media Type
DEF
Nozzle Operation
Automatic
For Use With
DEF 275 / 330 GAL IBC TOTE
Number of Phases
1
Frequency (Hz)
60
Pump Connection ID
3/4 in
Hose Cover Material
EPDM
Pump Connection OD
3/4 in
Hose Inside Dia.
3/4 in
Pump Connection Type
BSP
Hose Outside Dia.
3/4 in
Pump Package Type
Metered Dispensing with Automatic Shut-Off
Hose Tube Material
EPDM
Rated Voltage
120V AC
Housing Material - Pumps
Die-Cast Aluminum
Suction Tube ID
3/4 in
Includes
4 ft Suction, Discharge Hose, Filter, Inline Meter, Stainless Steel Nozzle
Suction Tube Material
EPDM
Includes Discharge Hose
Yes
Suction Tube OD
3/4 in
Includes Nozzle
Yes

Product Description

Diesel exhaust fluid (DEF) stationary electric drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring moderate to large volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
