GROZ

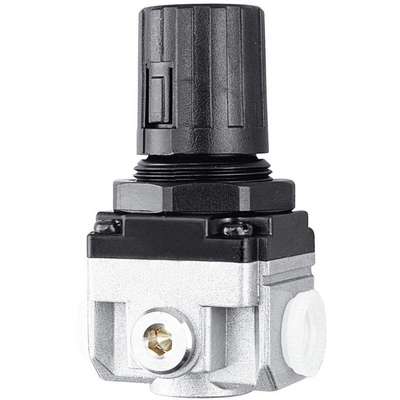

1/4" General Purpose Air Regulator , 56 cfm Max. Flow - Regulators
Hover over image to magnify
#928791-5 | Pkg Qty: 1
$31.84 pkg | $31.84 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Package Quantity
1
Brand
GROZ
Shipping Weight
1 lb.
Item
General Purpose Air Regulator
Valve Design
Balanced
Mfr. Part Number
R14914
General
Adjustment Location
Top
Max. Flow - Regulators
56 cfm
Adjustment Mechanism
Knob
Max. Inlet Pressure - Regulators
220 psi
Adjustment Mechanism Material
Acetal
Maximum Flow @ 100 psi
56 cfm
Adjustment Range
7 to 145 psi
Maximum Regulated Pressure
145 psi
Adjustment Range - Regulators
7 to 145 psi
Minimum Regulated Pressure
7 psi
Air Flow Direction
Left to Right
Modular Connection
Modular Connection
Air Inlet Gender
Female
Overall Height - Regulators
5.31 in
Air Inlet Type
NPT
Overall Width - Regulators
2.16 in
Air Outlet Gender
Female
Pipe Size - Regulators
1/4 in
Air Outlet Size
1/4 in
Pressure Drop
17 psi
Air Outlet Type
NPT
Pressure Gauge Port Gender
Female
Compressed Air Regulator Product Grouping
General Purpose Air Regulator
Pressure Gauge Port Size
1/8 in
For Fluid Type
Compressed Air
Pressure Gauge Port Type
NPT
For Substance Type
Air
Regulator Body Material
Aluminum or Zinc
Gauge Port
1/8 in NPT
Regulator Type
Relieving
Includes
(1) Air Regulator
System Location
Air Line
Product Description
Maintains a steady outlet pressure and is unaffected by variations in the inlet pressure. Can be mounted horizontally, vertically, at an angle, or upside down.
