CONDUCTIX-WAMPFLER

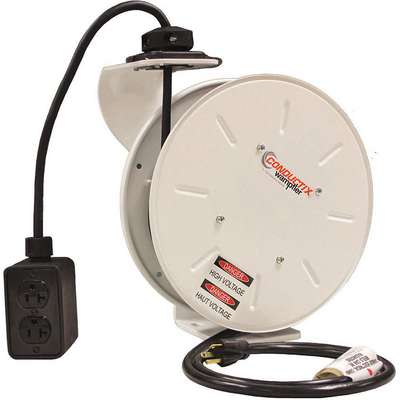

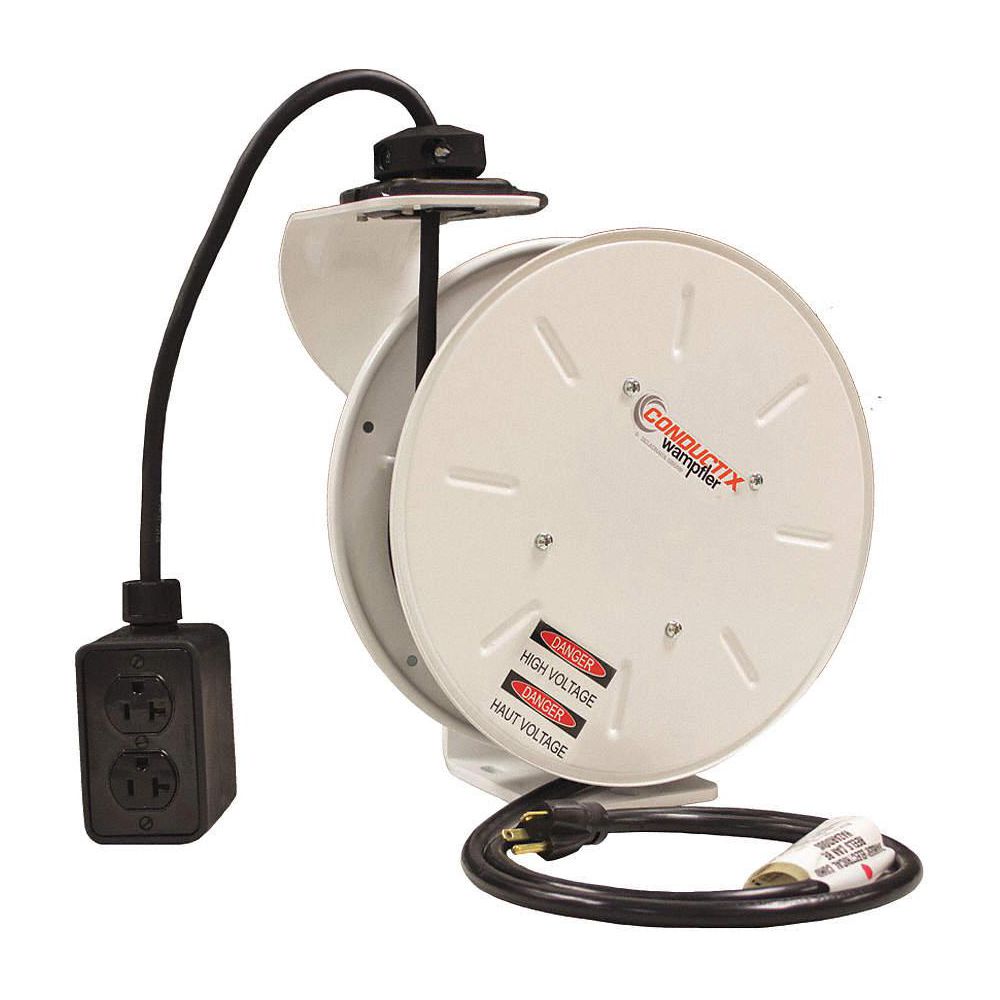

Conductix-Wampfler 50 ft. Retractable Cord Reel; Heavy Industrial Grade; 125 VAC; White Reel Color

Hover over image to magnify
Retractable Cord Reel,Cord 50
PI_Asset_947290
Retractable Cord Reel,Cord 50
PI_Asset_947290

#928659-6 | Pkg Qty: 1

$923.76 pkg | $923.76 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CONDUCTIX-WAMPFLER
NEC Cord Designation
SJOW
Cord Color
Black
Number of Conductors
3
Cord Ending
5-20R
Number of Outlets
4
Cord Ending NEMA Configuration
5-20R
Overall Depth
7-3/4 in.
Cord Included
Yes
Overall Height
13-53/64
Cord Length
50 ft.
Overall Width
12 in.
Enclosed Reel
No
Package Quantity
1
Enclosure Rating
NEMA 2
Reel Color
White
Feeder Cord Ending
Grounding Plug
Reel Material
Powder Coated Steel
Feeder Cord Ending NEMA Configuration
5-20P
Reel Mounting
Ceiling, Floor, Wall
Feeder Cord Length
6 ft.
Shipping Weight
36.3 lb.
Grade
Heavy Industrial
Slip Ring Rating
30A @ 600 V
Holds
50 ft. of 12/3
Temperature Range
-22 deg. F to 194 deg. F
Indoor/Outdoor
Indoor/Outdoor
Voltage
125 VAC
Item
Retractable Cord Reel
Watts
2125 W
Maximum Amps
20
Wire Size
12 AWG
Mfr. Part Number
XA-121120305016E
General
Cord Length - Ext. Cords and Outlet Strips
50 ft.
Reel Capacity
50 ft of 12/3
Feeder Cord Ending Configuration
NEMA 5-20P
Retractable Cord Ending
Quad Box Receptacle
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Retractable Cord Ending Configuration
NEMA 5-20R
Grade - Ext. Cords and Outlet Strips
Heavy Industrial
Retractable Cord Length
50 ft
Includes Cord
Yes
Standards
UL, CSA, NEMA 4
Indoor / Outdoor
Indoor/Outdoor
Tension Method
Ratchet Lock
Location
Outdoor
Trade Designation
SJOW
Max. Amps - Ext. Cords and Outlet Strips
20.0
Voltage - Ext. Cords and Outlet Strips
125VAC
NEC Cord Designation - Ext. Cords and Outlet Strips
SJOW
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
