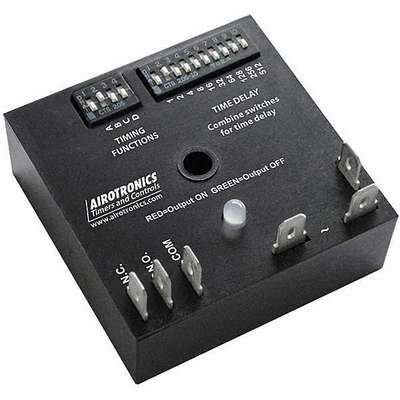

Airotronics Multi-Function Encapsulated Timing Relay, 12V DC, Mounting: Surface, SPDT

Hover over image to magnify
Encapsulated Timing Relay,
Encapsulated Timing Relay,

#928634-8 | Pkg Qty: 1

$53.41 pkg | $53.41 ea

Unavailable

Shipping to 60045
Shop Category
|

Technical Specifications

Key Specifications
Adjustment Method
Dip Switch
Mounting
Surface
Base Type
Surface
Number of Contacts
2
Brand
AIROTRONICS
Number of Functions
5
Coil VA Rating
12 VDC
Operating Functions
1, 2, 4, 5
Coil Volts
12 VDC
Output
Relay
Contact Form
SPDT
Package Quantity
1
Contact Material
Silver Tin
Pins
6
Function
On Delay, Off Delay, Single Shot, interval, Resettable Single Shot/Watchdog
Shipping Weight
.25 lb.
Input Voltage
12 VDC
Socket Code
Surface
Input or Control Voltage
12 VDC
Status Indicator
LED
Item
Multi-Function Encapsulated Timing Relay
Type
Dip Switch
Mfr. Part Number
MC7003631H
Type of Output
Relay
General
Adjustment Method - Timer
Dip Switch
HP @ 240V
NO, 1/6 @ 2AFLA
Body Depth - Relay
2.5 in
Max. Time Setting - Timer
17 hr
Body Height - Relay
0.83 in
Min. Time Setting - Timer
0.1 sec
Body Width - Relay
2.5 in
Mounting - Relay
Surface
Contact Form - Relay
SPDT
Number of Pins - Relay
6
DC Contact Rating - Relay
10A @ 12V
Overall Height - Relay
1.3 in
Function - Timing Relay
Interval, Off Delay, On Delay, One Shot, Watchdog (Resettable One Shot)
Standards
UL508, Ulr
HP @ 120V
NO, 1/10 @ 3AFLA
Timer Range
0.10 sec. to 1023 min.

Product Description

Solid-state technology provides a long service life, reducing maintenance costs and production loss due to downtime. 1/4" quick-connect.

When power is applied to the coil (the start switch must be jumped in multifunction timers), the interval timing period begins and the contacts transfer, either connecting (normally open contacts) or disconnecting (normally closed contacts) the load. When the interval timing period ends the contacts return to their original position. The unit resets when power is removed from the coil, making the unit ready for a new cycle.
