HUSKY RACK & WIRE

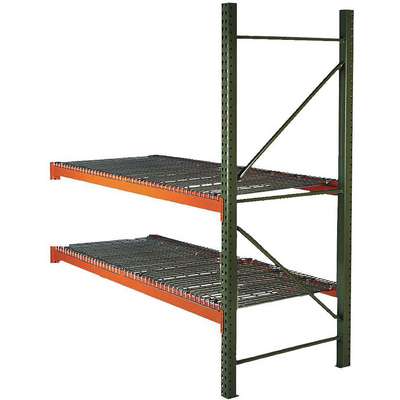

Husky Rack & Wire Husky Rack and Wire Pallet Rack Add-On Unit; 4062 lb. Shelf Capacity, 42" D x 10 ft. H x 123" W, Green/Orange
Hover over image to magnify
#928587-1 | Pkg Qty: 1
$830.24 pkg | $830.24 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Required Items
Items below are required. They are not included and need to be ordered separately.
Technical Specifications
Key Specifications
Brand
HUSKY RACK & WIRE
Overall Width
123 in.
Color Family
Green / Orange
Package Quantity
1
Finish
Polyurethane Rack/Pregalvanized Deck
Pallet Rack Beam Style
Step Beam
Item
Pallet Rack Add-On Unit
Pallet Rack Construction
Teardrop
Material
Steel
Pallet Rack Item
Pallet Rack Add-On Unit
Mfr. Part Number
184212043120DA
Pallet Rack Style
Roll Formed
Number of Shelves
2
Shelf Weight Capacity
4062 lb.
Overall Depth
42 in.
Shipping Weight
277 lb.
Overall Height
10 ft.
Usable Width
10 ft.
General
Beam Gauge
16 ga
Load Capacity Range - Pallet Racks
20,000 to 29,999 lb
Beam Height
4 3/8 in
Metal Forming Type
Roll Formed
Beam Step Depth
3/4 in
Number of Levels
2
Beam Step Height
1 1/2 in
Overall WxD
123 in x 42 in
Beam Style
Step Beam
Overall WxDxH
123 in x 42 in x 10 ft
Footplate Depth
4 in
Pallet Rack Configuration
Add-On
Footplate Width
4 1/4 in
Standards
RMI
Footplates
4 in x 4 1/4 in
Upright Gauge
14 ga
Includes
(1) Upright, (4) Beams
Upright Load Capacity @ 36 in
21,450 lb
Includes Decking
Yes
Whole Unit Load Capacity
8,124 lb
Product Description
Teardrop Pallet Rack Units
- Fully-welded, steel teardrop frame design Rack Manufacturer's Institute (RMI) certified Boltless assembly
- Fully configured rack units include frames, beams, and choice of decking or no decking.
Expertly Selected Product Pairings
Item Barcode
Pallet Rack,Add-On Unit,D42,
