DAYTON

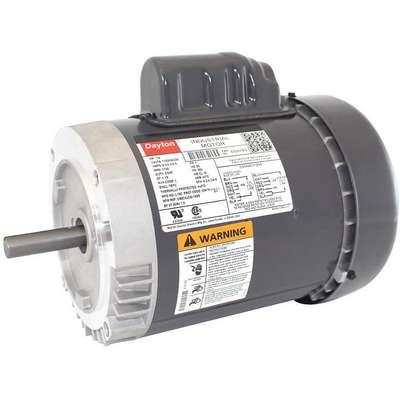

Dayton 1/2 HP General Purpose Motor,Capacitor-Start,1725 Nameplate RPM,Voltage 115/208-230,Frame 56C

Hover over image to magnify
Gp Mtr,Cs,Tefc,1/2 Hp,1725 Rpm,

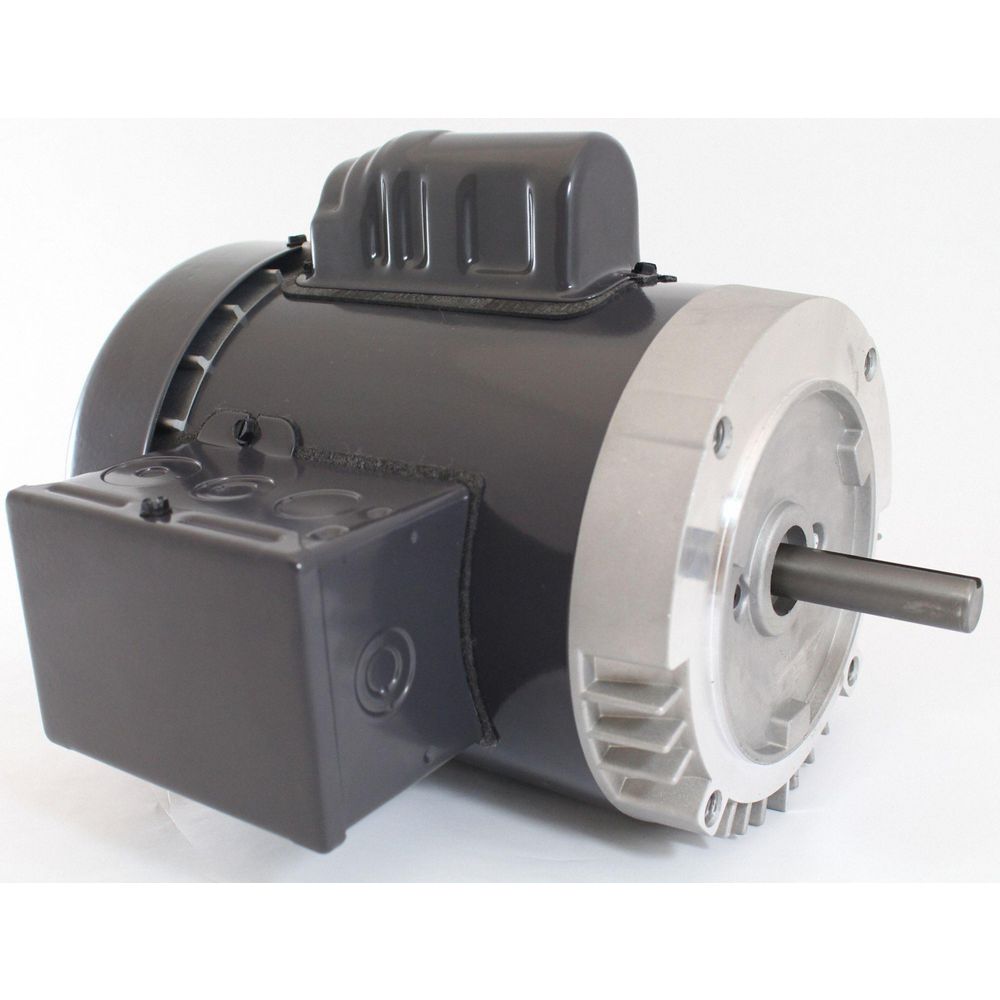

PI_Asset_1766470

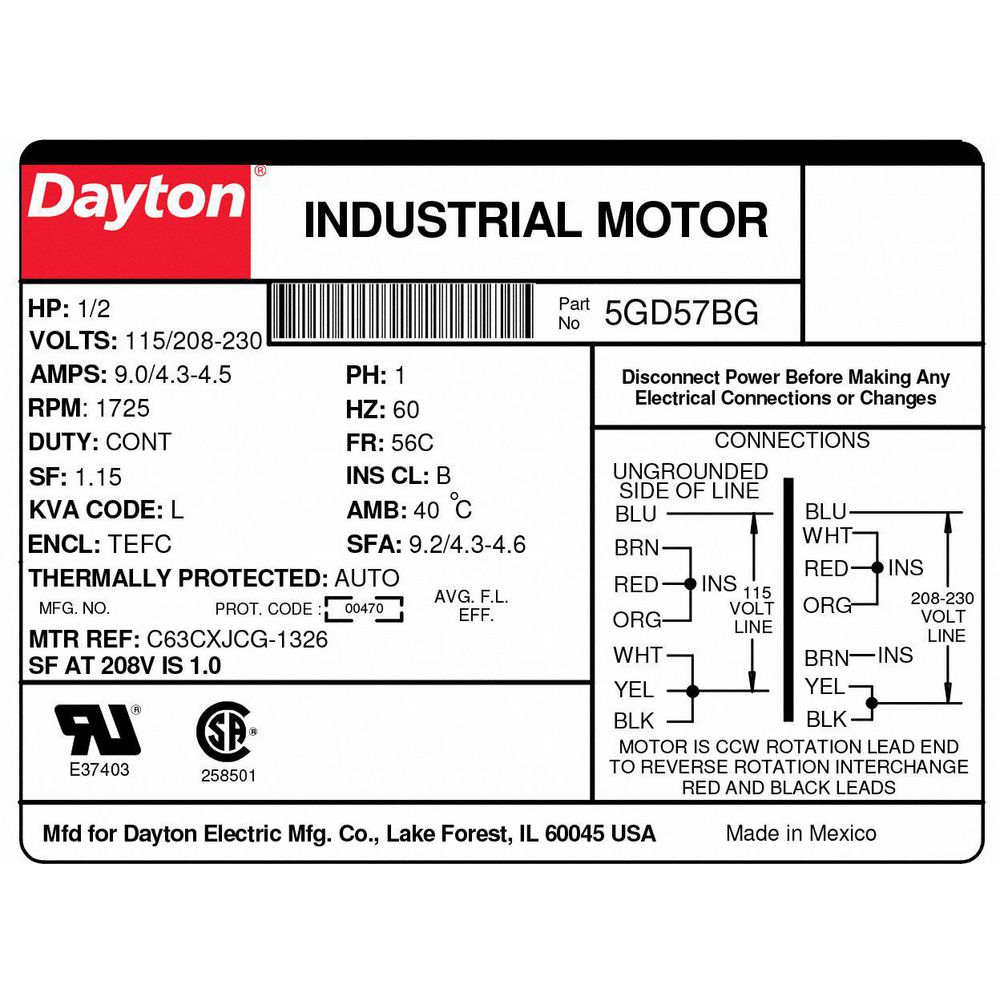

PI_Asset_1770175
Gp Mtr,Cs,Tefc,1/2 Hp,1725 Rpm,
PI_Asset_1766470
PI_Asset_1770175
Double tap image to magnify
Gp Mtr,Cs,Tefc,1/2 Hp,1725 Rpm,
5GD57_2
5GD57_3
Gp Mtr,Cs,Tefc,1/2 Hp,1725 Rpm,
5GD57_2
5GD57_3

#928574-2Pkg Qty: 1

$305.49 pkg | $305.49 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 14.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>NEMA 56 frame capacitor-start general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56Z or 56HC. The letter “Z” indicates that the frame has a nonstandard shaft, “H” indicates that the frame has a set of mounting holes at 3" and 5", and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).</p>

NEMA 56 frame capacitor-start general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56Z or 56HC. The letter “Z” indicates that the frame has a nonstandard shaft, “H” indicates that the frame has a set of mounting holes at 3" and 5", and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Bearings
Ball
Motor Design
Capacitor-Start
Brand
DAYTON
Motor Type
Capacitor-Start
Duty
Continuous
Mounting
Face
Duty Cycle
Continuous
NEMA/IEC Frame
56C
Enclosure
Totally Enclosed Fan-Cooled
Nameplate RPM
1725
Footnotes
51
Overall Length
11-3/8 in.
Frame
56C
Package Quantity
1
Frame Material
Steel
Phase
Single
Full Load Amps
9.0/4.5-4.3
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
B
Shaft Length
1-7/8 in.
Item
General Purpose Motor
Shaft Type
Keyed
Length Less Shaft
9-1/2 in.
Shipping Weight
26.63 lb.
Mfr. Part Number
5GD57
Thermal Protection
Auto
Mfr. Warranty Length
1 yr.
Voltage
115/208-230 VAC
General
HP
1/2
Nominal Efficiency
60.7 %
Max. Ambient Temp.
40 °C
RPM Group
1701-1800
Motor Application
General Application
RPM Range
1,701-1,800
Motor Efficiency Group
Standard Efficient
Shaft Dia.
5/8 in
Motor Mounting Position
All Angle
Standards
CSA Certified 156060, UL Ther Mal Protection-Component Recognition E37403
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC

Product Description

NEMA 56 frame capacitor-start general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56Z or 56HC. The letter “Z” indicates that the frame has a nonstandard shaft, “H” indicates that the frame has a set of mounting holes at 3" and 5", and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).

Expertly Selected Product Pairings

Slotted Shim Asst,SS,A-2 X 2
$186.35 pkg | $186.35 ea
Item: 912009-7 | Pkg Qty: 1

Documents

Technical Guide
Specification Guide
Features Guide
