DSR PROSERIES

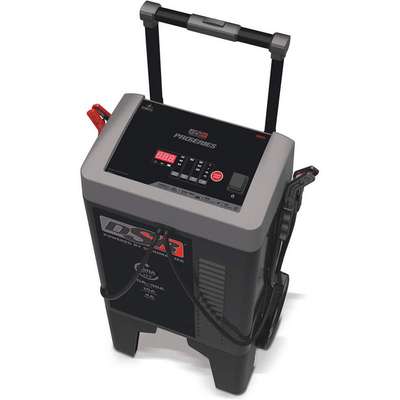

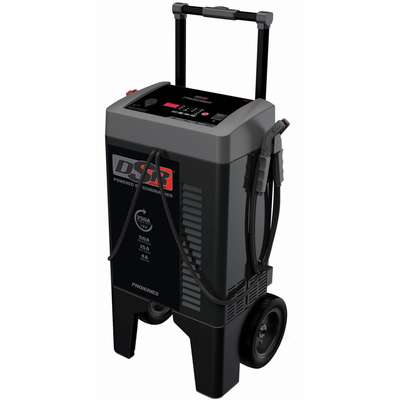

DSR Proseries Automatic, Wheeled Battery Charger; Boosting, Charging, Maintaining; For Battery Voltage: 12 V DC

Hover over image to magnify
Battery Charger,Wheeled,6/12V
PI_Asset_1758584
Battery Charger,Wheeled,6/12V
PI_Asset_1758584

#928507-2 | Pkg Qty: 1

$795.08 pkg | $795.08 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Cord Length
9 ft.
Input Voltage
120 VAC
Automatic/Manual
Automatic
Item
Battery Charger
Boost Amps @ Voltage
50 A @ 12 V
Maintaining Amps @ Voltage
4 A @ 12 V
Brand
DSR PROSERIES
Material
Plastic
CEC Compliant
CEC Compliant
Mfr. Part Number
DSR121
Cable Gauge
4 AWG
Overall Depth
16-1/4 in.
Cable Length
8 ft.
Overall Height
33-5/8 in.
Charge Type
Auto On/Off
Overall Width
20-1/2 in.
Charger Function
Boosting, Charging, Maintaining
Package Quantity
1
Charger Style
Wheeled
Portable
Yes
Charging Amps @ Voltage
20 A @ 12 V
Power Cord Length
9 ft.
Cranking Amps
100A
Shipping Weight
63.3 lb.
For Battery Voltage
12 V DC
Test Feature
No
For Use with Battery Type
AGM, Deep Cycle, Gel
Timer
No
Housing Material
Plastic
General
Boost Current @ Voltage
50 A @ 12V
Includes
(4) Cable Clamp Cleats
Cable Wire Gauge
4 AWG
Indoor / Outdoor
Indoor / Outdoor
Cold Cranking Current @ Voltage
100 A @ 12V
Input Voltage
120 VAC
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Power Cord Length
9 ft.
Housing Material
Plastic

Product Description

Battery Charger, Charger Style Wheeled, For Battery Voltage 6, 12, For Use With Battery Type AGM, Deep Cycle, Gel, Charger Function Boosting, Charging, Maintaining, Automatic, Charge Type Auto On/Off, Boost Amps @ Voltage 50A @ 12V, Cold Cranking Amps @ Voltage 100A @ 12V, Charging Amps @ Voltage 20A @ 12V, Maintaining Amps @ Voltage 4A @ 12V, AC Cord Length 9 ft, Input Voltage 120V AC, Input Amps 10, Overall Width 20 1/2 in, Overall Height 33 5/8 in, Overall Depth 16 1/4 in, Cable Gauge 4 AWG

Item Barcode
9285072
Battery Charger,Wheeled,6/12V
 NameItemDescription
Grainger DropshipGrainger Dropship485C80Battery Charger,
UNSPSC CODESUNSPSC CODES26111704
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Battery Charger,
