HUBBELL WIRING DEVICE-KELLEMS

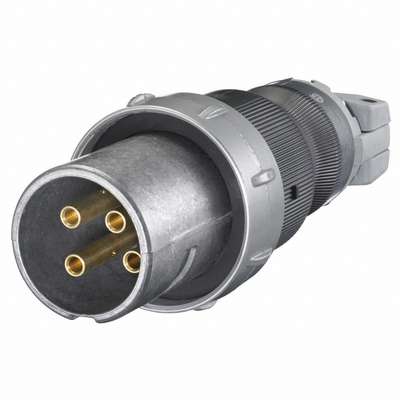

Hubbell Wiring Device-Kellems 60 Amp, 3-Phase Valox 357 Housing and Aluminum Shroud Watertight Pin and Sleeve Plug, Gray

Hover over image to magnify
Pin And Sleeve Plug,3P,4W,60A,
PI_Asset_1982098
Pin And Sleeve Plug,3P,4W,60A,
PI_Asset_1982098

#928418-3 | Pkg Qty: 1

$675.64 pkg | $675.64 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
60 A
Minimum Operating Temperature
-40 °C
Amps
60 A
Minimum Wire Size
6 AWG
Body Material
Valox 357 Housing and Aluminum Shroud
NEMA Rating
4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Poles
3
Cap Type
No Cap or Cover
Number of Wires
4
Color Family
Gray
Outside Diameter
3.7 in.
Compatible With
Insulgrip
Overall Length
9.6 in.
Connection Orientation
Straight
Package Quantity
1
Current Rating
60 A
Phase
Three
Features
All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal
Pin & Sleeve Standards
CSA Certifications, UL 1682, UL Listed
For Maximum Cable Diameter
1.45 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.5 in.
Reverse Service
No
Grounding
Grounded
Shipping Weight
2.8 lb.
Grounding Style
Style 2
Shrouded
Yes
Housing Material
Polybutylene Terephthalate
Standards
CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed
IP Rating
Not Rated
Switch Rated
No
Item
Watertight Pin and Sleeve Plug
Type
Insulgrip Pin and Sleeve, Interchangeable, Male Plug
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 °C
Voltage
600VAC/250VDC
Maximum Wire Size
4 AWG
Voltage Rating
250V DC, 600V AC
Mfr. Part Number
HBL460PS2W
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
60
Phase - Electrical
3
Features
Ground Through Dedicated Ground Pin, Watertight and Abuse Resistant
Voltage - Plugs and Receptacles
600V AC/250V DC

Product Description

Type 4X Pin and Sleeve Plug, Body Material - Pin and Sleeve Valox 357 Housing and Aluminum Shroud, Amps - Plugs and Receptacles 60, Voltage - Plugs and Receptacles 600V AC/250V DC, Color - Plugs and Receptacles Gray, Number of Poles 3, Number of Wires 4, Grounding Style 2, Phase - Electrical 3, HP, Features Ground Through Dedicated Ground Pin, Watertight and Abuse Resistant, Standards CSA Certified C22.2 No. 182.1, No. 94 and No. 159, UL Listed 1682, UL50 and UL1010
