SCHNEIDER ELECTRIC

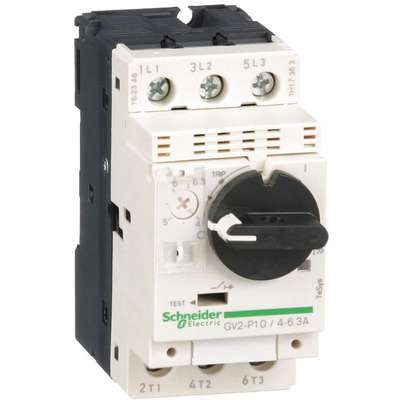

Schneider Electric Manual Motor Starter: Rotary Knob, No Enclosure, 4 to 6.3A, 3 Poles, 600V AC
Hover over image to magnify
#928394-5 | Pkg Qty: 1
$280.63 pkg | $280.63 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Item
Manual Motor Starter
Depth
3.83 in.
Mfr. Part Number
GV2P10
Description/Special Features
Reliable Overload Protection
Number of Poles
3
Enclosure NEMA Rating
No Enclosure
Package Quantity
1
Enclosure Type
Open
Phase Loss Sensitivity
No
HP @ 1 Phase - 120 V
1/4 hp
Shipping Weight
.77 lb.
HP @ 1 Phase - 230 V
1/2 hp
Starter Type
IEC Style
HP @ 3 Phase - 240 V
1-1/2 hp
Type
IEC
HP @ 3 Phase - 480 V
3 hp
Width
1-3/4 in.
Height
3-1/2 in.
General
HP @ 1 Phase - 115V
1/4
HP @ 3 Phase - 460V
3
HP @ 1 Phase - 120V
1/4 hp
HP @ 3 Phase - 480V
3 hp
HP @ 1 Phase - 230V
1/2 hp
HP @ 3 Phase - 575V
5 hp
HP @ 3 Phase - 200V
1-1/2
Operator
Rotary Knob
HP @ 3 Phase - 208V
1 1/2 hp
Overload Relay Amp Setting
4 to 6.3A
HP @ 3 Phase - 230V
1-1/2
Pilot Light
Yes
HP @ 3 Phase - 240V
1 1/2 hp
Standards
CSA, UL
HP @ 3 Phase - 460-575V
5
Product Description
IEC Manual Motor Starters
- Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
Expertly Selected Product Pairings
Item Barcode
Manual Motor Starter,Knob,4 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2MNJ7 | Manual Motor Starter,Knob, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Motor Starter,Knob, |
