LEESON

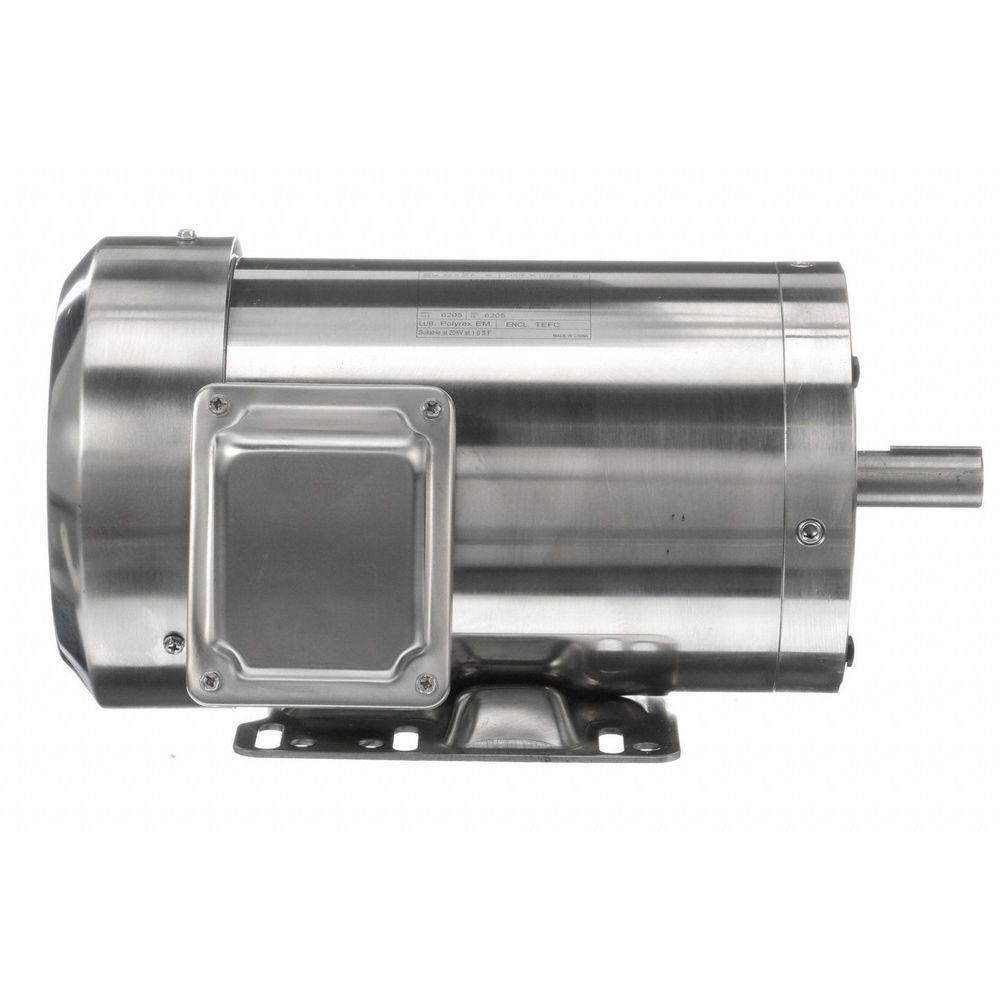

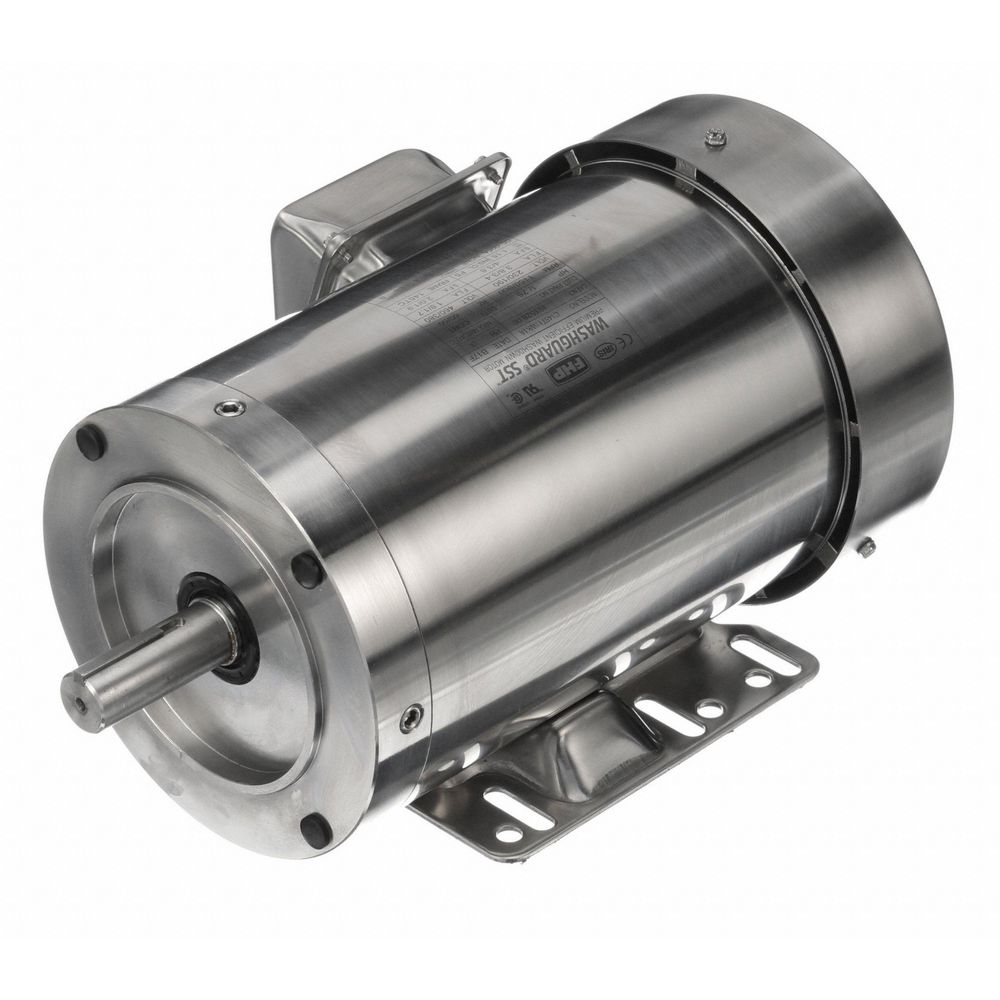

Leeson Washdown Motor, 1 HP, Unfinished Finish, 3-Phase, Nameplate RPM 1,150, Voltage 208-230/460V AC
Hover over image to magnify
#928198-4 | Pkg Qty: 1
$1,479.52 pkg | $1,479.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LEESON
Mfr. Warranty Length
1 yr.
Duty Cycle
Continuous
Motor Design
3-Phase
Finish
Unfinished
Nameplate RPM
1150
Frame
145TC
Overall Length
13-3/16 in.
Frame Material
Stainless Steel
Package Quantity
1
Full Load Amps
3.8/1.90
Phase
Three
Hz
60/50
Shaft Length
2-1/4 in.
Item
Washdown Motor
Shaft Material
Stainless Steel
Length Less Shaft
11-1/4 in.
Shipping Weight
46.7 lb.
Mfr. Part Number
191528
Voltage
208-230/460 VAC
General
Body Dia.
6.5 in
Motor Mounting Type
Rigid Base
Bolt Circle Dia.
5 7/8 in
Motor Service Factor
1.15
CC Number
CC005A
Motor Shaft Design
Keyed
Conduit Box Location
Exterior
Motor Shaft Rotation
CCW, CW
Full Load Amps @ 50Hz
3.8-3.8/1.90
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium® Rated
No. of Speeds
1
HP
1
Nominal Efficiency
82.5 %
HP @ 50Hz
1
RPM @ 50Hz
1,150
Ins. Class
F
RPM Range
1,101-1,200
Max. Ambient Temp.
40 °C
Service Factor @ 50Hz
1.15
Motor Application
Washdown
Shaft Dia.
7/8 in
Motor Bearings
Ball
Standards
BISSC Approved, CE, CSA Certified, UL Recognized
Motor Efficiency Group
NEMA Premium Efficient
Usable @ 208V
Yes
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage @ 50Hz
460V AC
Motor Frame Material
Stainless Steel
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Mounting Position
Horizontal
Product Description
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
