HUBBELL WIRING DEVICE-KELLEMS

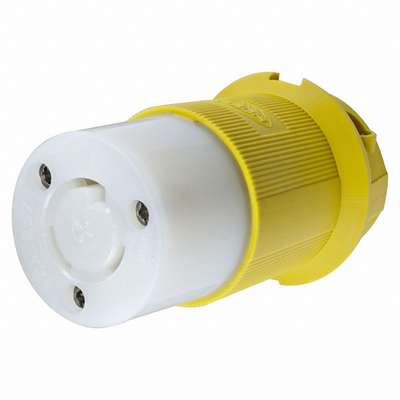

Hubbell Wiring Device-Kellems 20 Amp Marine Grade Locking Connector, L5-20R NEMA Configuration, Yellow
Hover over image to magnify
#928171-4 | Pkg Qty: 1
$54.01 pkg | $54.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accessory Group
F
Maximum Wire Size
8 AWG
Amperage
20 A
Mfr. Part Number
HBL23CM13
Amps
20 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Boot Code
C
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L5-20
Cap Type
No Cap or Cover
NEMA Plug Configuration
L5-20R
Color Family
Yellow
NEMA Receptacle Configuration
L5-20R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Nickel-Plated Brass
Number of Wires
3
Cord Size
0.360 in to 0.930 in
Outside Diameter
2.26 in.
Corrosion Resistant
Yes
Overall Length
2.26 in.
Current Rating
20 A
Package Quantity
1
Description
Grounding
Phase
Single
For Environment
Dry
Power Indicating Light
No
For Location
Indoor
Power Indicator
No
Grade
Marine
Shipping Weight
.35 lb.
Grounding
Grounded
Shrouded
No
HP
1 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
1 hp
Sub-Category
Connectors
Housing Color
Yellow
Type
Twist Lock
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
125VAC
Item
Locking Connector
Voltage Rating
125V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Material of Construction
Nylon
Wiring Style
Standard
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L5-20R
Grade - Plugs and Receptacles
Marine
Special Features
Corrosion Resistant
HP
1.0
Voltage - Plugs and Receptacles
125V AC
Product Description
NEMA Twist-Lock® Devices Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Connector,125VAC,20A,L5-20R,2P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D046 | Connector, 125VAC,20A, |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector, 125VAC,20A, |
