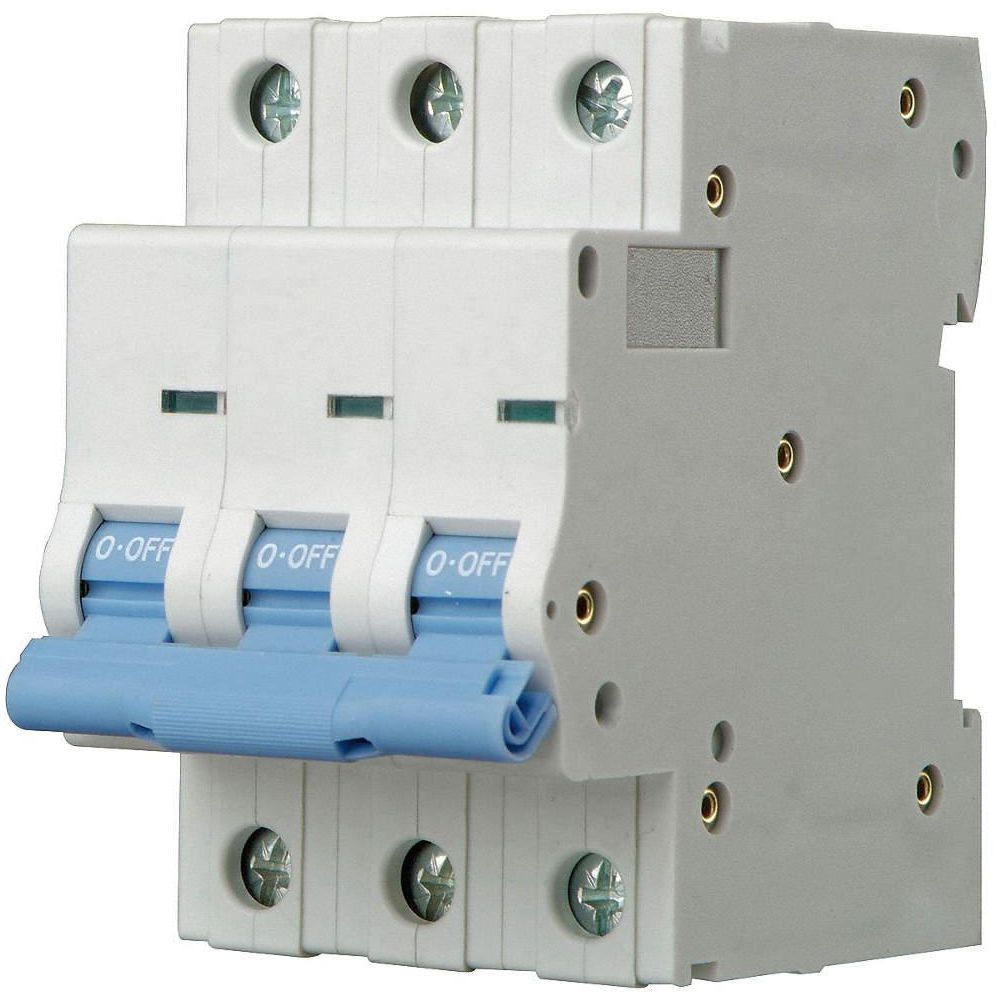

Dayton IEC Supplementary Protector, Amps 10 A, AC Voltage Rating 480V AC, DC Voltage Rating Not Rated

Name: Dayton IEC Supplementary Protector, Amps 10 A, AC Voltage Rating 480V AC, DC Voltage Rating Not Rated
Brand: DAYTON
SKU: 9281442
Price: 73.64 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#928144-2Pkg Qty: 1

$73.64 pkg | $73.64 ea

In Stock

Shipping to 43085

Expected to arrive Thu. Mar 27.

Technical Specifications

Key Specifications

AC Voltage Rating

480VAC

Mfr. Part Number

5ZUY4

Air @ 480 VAC

7.5kA

Minimum Wire Size

14 AWG

Amps

10 A

Mounting

DIN Rail

Brand

DAYTON

Number of Poles

Circuit Breaker Type

Miniature UL 1077

Package Quantity

Curve Type

Phase

DC Voltage Rating

Not Rated

Series

NDB2-63 B10/3

Depth

2.91 in.

Shipping Weight

.8 lb.

Frame Size

63 A

Standards

UL Recognized for US & Canada; CE

High Amp Trip Setting

57.6

Switch Type

Lever

Instantaneous Trip

Fixed

Terminal Connection

Screw Clamp

Item

IEC Supplementary Protector

Trip Type

Thermal Magnetic

Length

3.21 in.

Type

Din Rail Mount

Low Amp Trip Setting

38.4

Voltage

480VAC

Maximum Air Rating

7.5kA at 480VAC

Width

2.13 in.

Maximum Wire Size

4 AWG

General

Application

Supplemental Protection

For Use With

Computer, Electronic, and Generator Applications

Circuit Breaker Actuator

Toggle

Meets UL Type

UL 1077

Product Description

B-curve three-pole supplementary protectors trip instantaneously when the current load exceeds three to five times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They protect three circuits at the same time and are used when protection against low-level short circuit faults is desired, such as in PLC wiring, lighting, and appliances.
