SUPCO

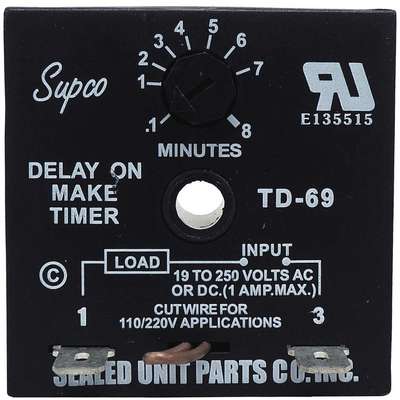

Supco Single Function Encapsulated Timing Relay, 19 to 250V AC/DC, Mounting: Surface, SPST-NO
Hover over image to magnify
#928062-5 | Pkg Qty: 1
$11.34 pkg | $11.34 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment Method
Potentiometer
Mfr. Part Number
TD69
Agency Compliance
UL Recognized
Mounting
Surface
Brand
SUPCO
Number of Functions
1
Contact Form
SPST-NO
Output
Solid State
Depth
1 in.
Pack Quantity
1
Function
Delay on Make
Pins
2
Height
2-1/2 in.
Shipping Weight
.11 lb.
Hz
50/60
Status Indicator
None
Input Voltage
19 to 250 VAC/DC
Type of Output
Solid State
Input or Control Voltage
19 to 250 VAC/DC
Width
2-1/2 in.
Item
Single Function Encapsulated Timing Relay
General
Adjustment Method - Timer
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Application
Protection From Short Cycling of Compressor, Compressor Staging
Max. Time Setting - Timer
8 min
Body Depth - Relay
2.0 in
Min. Time Setting - Timer
6 sec
Body Height - Relay
0.75 in
Mounting - Relay
Surface
Body Width - Relay
2.0 in
Number of Pins - Relay
2
Contact Form - Relay
SPST-NO
Overall Height - Relay
1.0 in
For Use With
HVAC Compressors
Timer Range
6.00 sec. to 8.00 min.
Function - Timing Relay
Delay on Make
Product Description
Single Function Encapsulated Timing Relay, Function - Timing Relay Delay on Make, Input or Control Voltage 19 to 250V AC/DC, Mounting - Relay Surface, Contact Form - Relay SPST-NO, Adjustment Method - Timer Potentiometer, Min. Time Setting - Timer 6.0 sec, Max. Time Setting - Timer 8 min, Type of Output Solid State
Item Barcode
Encapsulated Timing Relay,19-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 407L15 | Encapsulated Timing Relay, |
 | UNSPSC CODES | 39121519 | |
 | VMRS (ATA) CODES | 053-006-009 | Encapsulated Timing Relay, |
