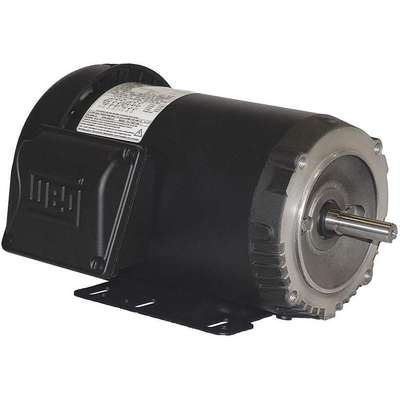

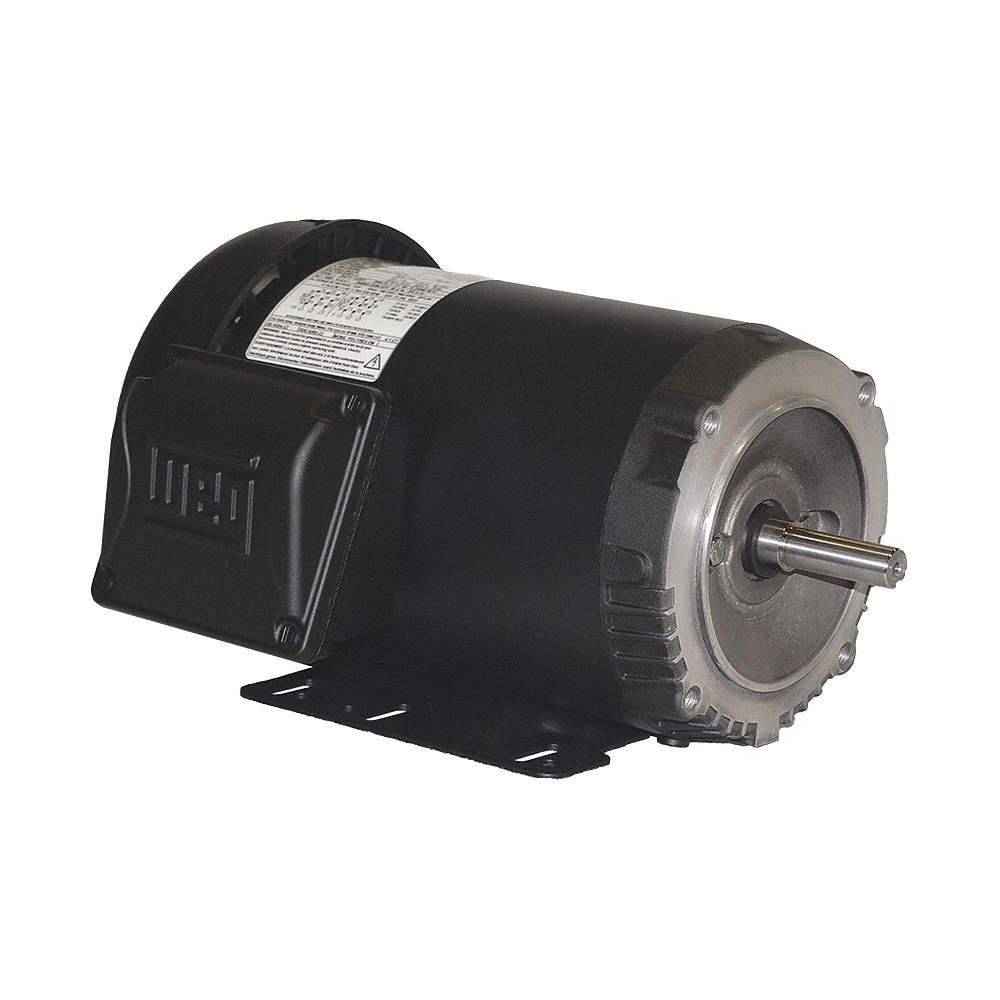

WEG General Purpose Motor, 1 HP, 3-Phase, Nameplate RPM 1,765, Voltage 230/460V AC, 56C Frame

Name: WEG General Purpose Motor, 1 HP, 3-Phase, Nameplate RPM 1,765, Voltage 230/460V AC, 56C Frame
Brand: WEG
SKU: 9279596
Price: 361.92 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#927959-6Pkg Qty: 1

$361.92 pkg | $361.92 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Apr 04.

Technical Specifications

Key Specifications

Brand

WEG

Mfr. Warranty Length

3 yr.

Duty

Continuous

Motor Design

3-Phase

Duty Cycle

Continuous

Nameplate RPM

1765

Frame

56C

Overall Length

13-1/2 in.

Full Load Amps

2.9/1.50

Pack Quantity

Phase

Three

Item

General Purpose Motor

Shaft Length

1-7/8 in.

Length Less Shaft

11-5/8 in.

Shipping Weight

42.4 lb.

Mfr. Part Number

00118ET3E56C-S

Voltage

230/460 VAC

General

CC Number

CC029A

Motor Mounting Type

Rigid Base

Full Load Amps @ 50Hz

3.09/1.64, 3.4/1.7

Motor Service Factor

1.15

Green Certification or Other Recognition

NEMA Premium® Rated

Motor Shaft Design

Keyed

Motor Shaft Rotation

CW/CCW

HP @ 50Hz

No. of Speeds

Includes

Conduit Box

Nominal Efficiency

85.5 %

Ins. Class

RPM @ 50Hz

1,450

Inverter Rated

Yes

RPM Group

1701-1800

Max. Ambient Temp.

40 °C

RPM Range

1,701-1,800

Motor Application

General Application

Service Factor @ 50Hz

Motor Bearings

Ball

Shaft Dia.

5/8 in

Motor Efficiency Group

NEMA Premium Efficient

Standards

CSA, UL

Motor Enclosure Design

Totally Enclosed Fan-Cooled

Usable @ 208V

Yes

Motor Frame Material

Steel

Voltage @ 50Hz

190/380V AC, 220/415V AC

Motor Mounting Position

All Angle

Voltage Compatibility

200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

NEMA 56 frame three-phase general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56HZ or 56C. The letter “H” indicates that the frame has a set of mounting holes at 3" and 5", “Z” indicates that the frame has a nonstandard shaft, and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
